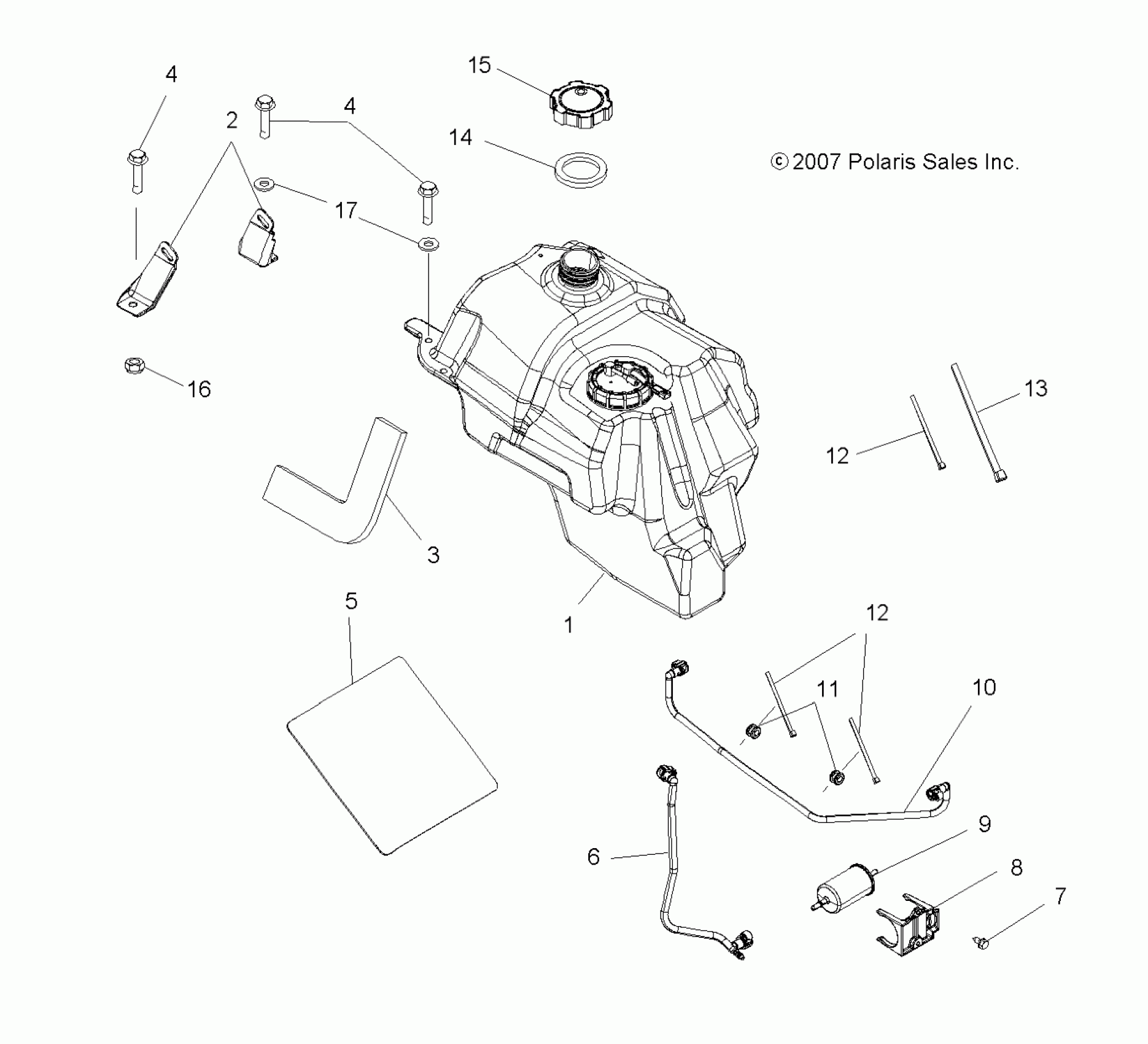

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA BODY, FUEL TANK ASM. (BUILT 12/02/07 and AFTER) - A08DN50EA (49ATVFUEL08SPTRG500QD) Diagram

Description

Price

KIT, FUEL PUMP [INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS]

2204308

$457.59

Asm., Tank, Fuel [Incl. Pump, Foil]

2520895

Unavailable

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

SEAL, FOAM

5812265

$27.99

SCREW

7517219

$4.79

SCREW

7517219

$4.79

Foil

5813024

Unavailable

Asm., Fuel Line, Tank to Filter

2520791

Unavailable

Bolt

7512232

$1.49

Mount, Fuel Filter

5436013

$8.79

Filter, Fuel

2520464

$39.99

Asm., Fuel Line, Filter/Rail

2520551

$106.49

Grommet

5413317

$2.39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

GASKET

5812123

$5.65

Cap, Gas Tank, Vented

2520364

Unavailable

Nut, Nylok

7542122

$1.49

Washer, Flat

7558301

$1.49
