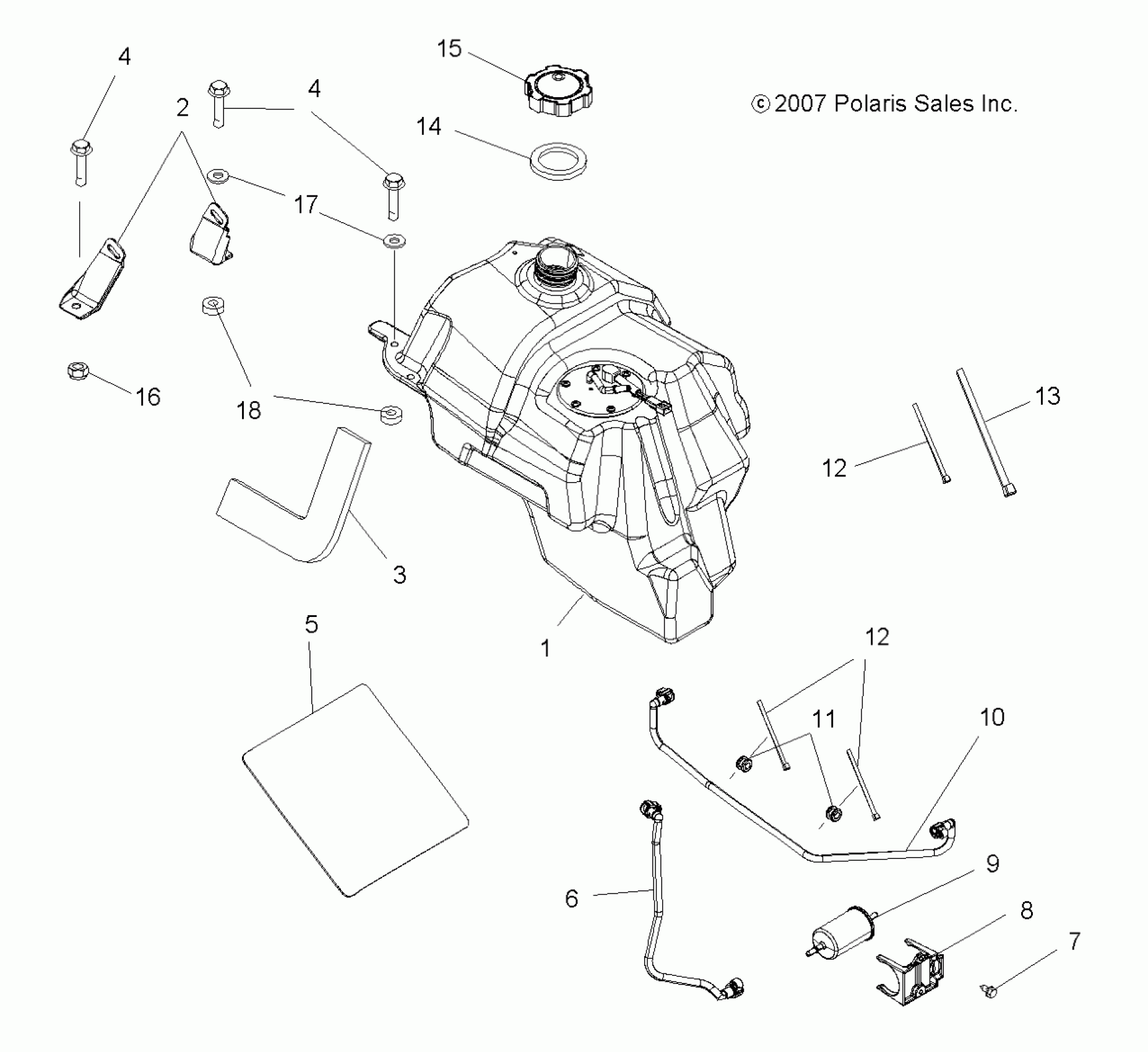

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA BODY, FUEL TANK ASM. (BUILT 12/01/07 and BEFORE) - A08DN50EA (49ATVFUEL08X2500QUAD) Diagram

#

Description
Price

1

Asm., Tank, Fuel [Incl. Pump, Foil]

2520777

Unavailable

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

3

SEAL, FOAM

5812265

$27.99

4

SCREW

7517219

$4.79

4

SCREW

7517219

$4.79

5

Foil

5813024

Unavailable

6

Asm., Fuel Line, Tank to Filter

2520443

$43.99

7

Bolt

7512232

$1.49

8

Mount, Fuel Filter

5436013

$8.79

9

Filter, Fuel

2520464

$39.99

10

Asm., Fuel Line

2520551

$106.49

11

Grommet

5413317

$2.39

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

GASKET

5812123

$5.65

15

Cap, Gas Tank, Vented

2520364

Unavailable

16

Nut, Nylok

7542122

$1.49

17

Washer, Flat

7558301

$1.49

18

Washer, Nylon

7555913

Unavailable
