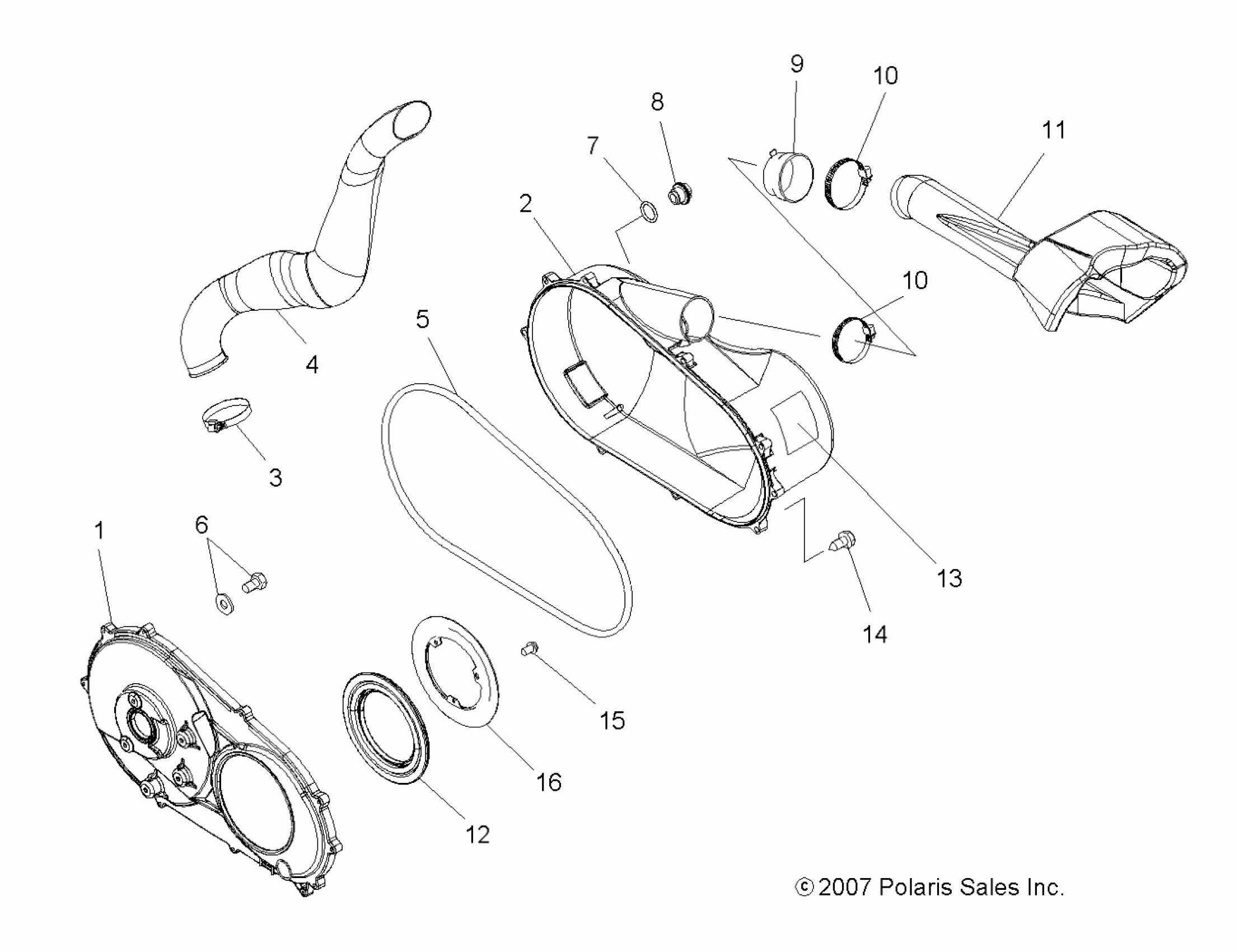

Polaris SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA BODY, CLUTCH COVER - A08DN50EA (49ATVCLUTCHCVR08SPX25) Diagram

#

Description
Price

1

Asm., Clutch Cover, Inner [Incl. 12]

2633158

Unavailable

2

Asm., Cover [Incl. 7,8]

2633262

$169.87

3

Clamp, Narrow Band

7080511

$4.79

4

Duct, Clutch Air Inlet

5437384

Unavailable

5

Seal, Cover, Clutch

5521738

$42.46

6

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

7

O RING-.364X.504X.07

5410542

Unavailable

8

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

9

BOOT, DUCT

5412636

$23.99

10

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

10

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

11

Duct, Clutch Outlet

5436835

Unavailable

12

Seal, Cover Case

5412725

$51.99

13

Decal, Warning, Clutch Cover

7173030

Unavailable

14

SCREW

7512094

$1.59

15

Asm., Screw and Washer

3084205

$3.99

16

BRACKET, CLUTCH, SEAL

5242046

$35.99
