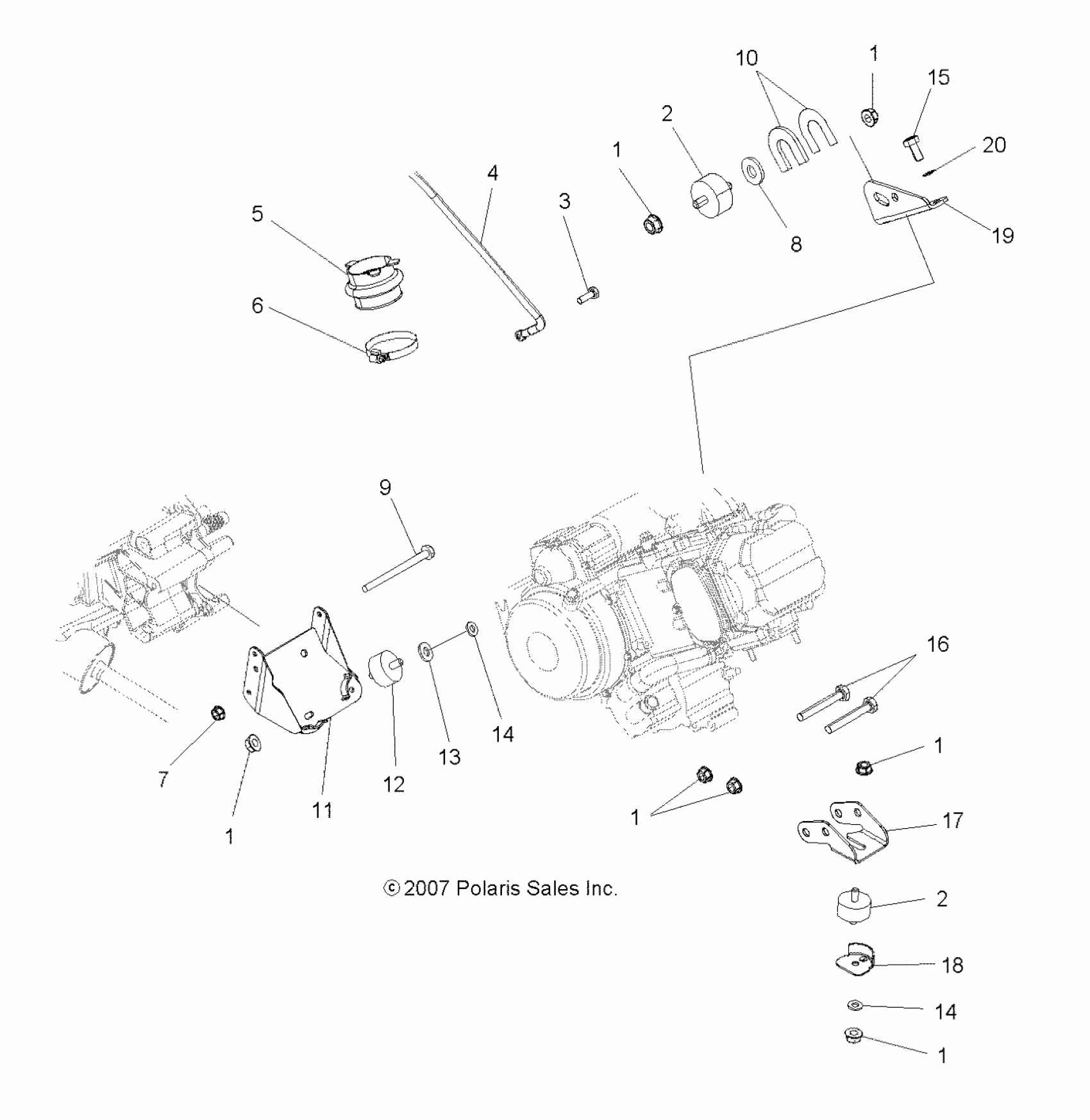

Polaris SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ ENGINE, MOUNTING - A09DN50AB/AZ (49ATVENGINEMTG09SPTRG500) Diagram

#

Description
Price

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

2

ISOLATOR

3022071

$38.60

2

ISOLATOR

3022071

$38.60

3

BOLT, FLANGE

3084874

Unavailable

4

Cable, Ground [Frame/Engine]

4011546

$15.99

5

BOOT, CLUTCH INTAKE

5412487

Unavailable

6

Clamp, Narrow Band

7080511

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

WASHER, FLAT

7555823

$3.99

9

SCREW

7518648

$7.19

10

Shim, .080

5210760

Unavailable

10

Shim, .030

5211517

Unavailable

11

Mount, Engine, Rear, Black

1015648-067

Unavailable

12

ISOLATOR

3022076

Unavailable

13

Washer

7555815

$3.99

14

Washer

7555797

$3.99

14

Washer

7555797

$3.99

15

Screw

7512315

$4.79

16

Screw

7518415

$4.79

17

Mount, Engine, Front

5250326

$39.59

18

BRACKET, TORQUE STOP

5245043

$15.83

19

Mount, Engine, Top

5241453

$7.99

20

Washer, Lock

7552901

$1.49
