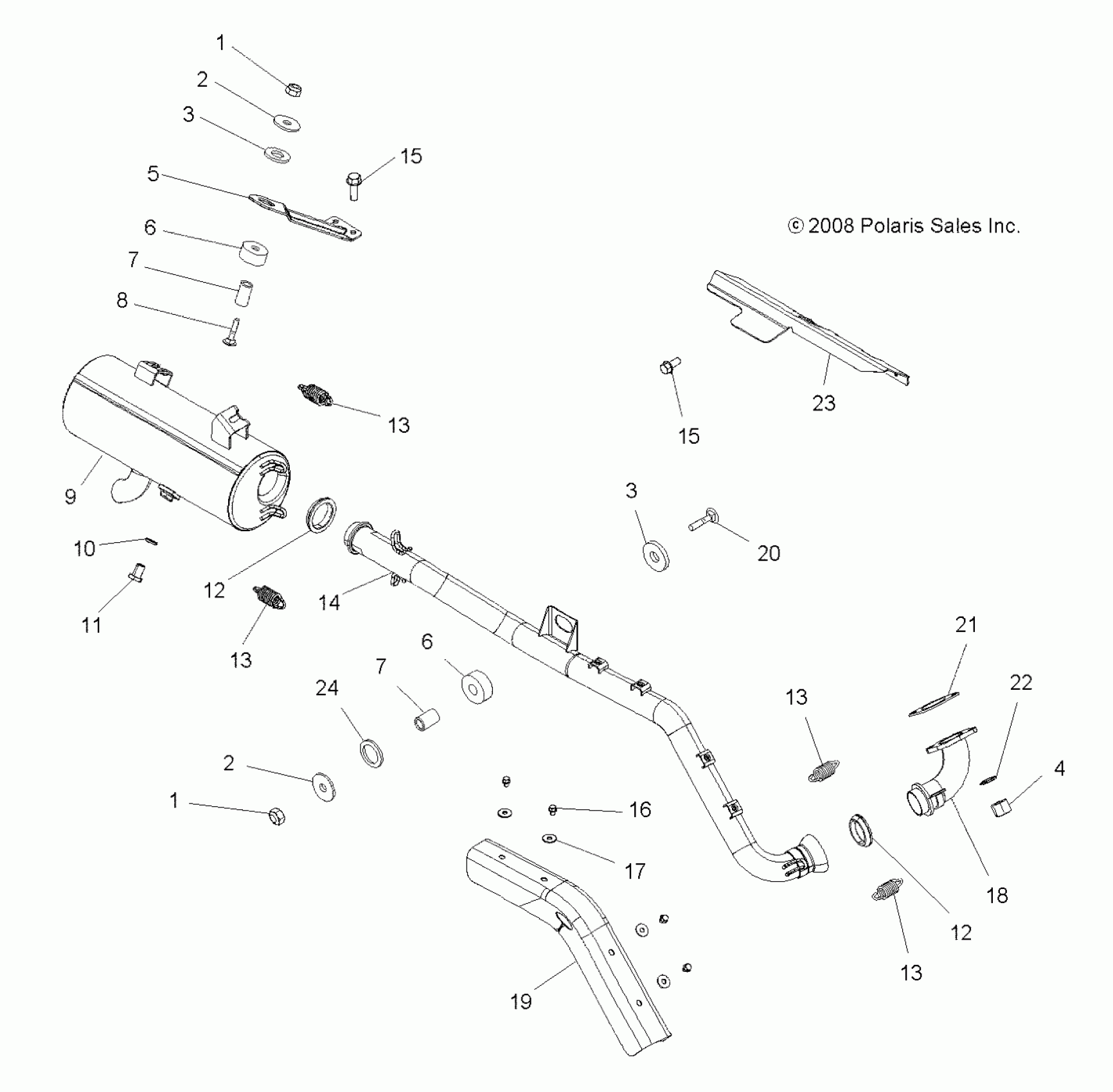

Polaris SPORTSMAN TOURING 500 EFI - A09DN50AB/AZ ENGINE, EXHAUST - A09DN50AB/AZ (49ATVEXHAUST09SPTRG500) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Nut

3087199

Unavailable

5

Bracket, Silencer Mount, RH

5251678

Unavailable

6

DAMPENER, VIBRATION

5412659

$3.99

6

DAMPENER, VIBRATION

5412659

$3.99

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT, CARRIAGE

7515316

$2.39

9

Silencer, Black

1261925-489

$409.19

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

Seal, Exhaust

5243518

$27.99

12

Seal, Exhaust

5243518

$27.99

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

14

Pipe, Exhaust

1261698-489

Unavailable

15

SCREW

7512232

$1.49

15

SCREW

7512232

$1.49

16

Screw

7515197

$1.49

17

Washer

7555935

$2.39

18

Manifold

1261697-489

Unavailable

19

Shield, Heat Exhaust

5250373

$26.39

20

Bolt, Carriage

7518660

Unavailable

21

GASKET

3085075

$39.99

22

Washer, Lock

3080051

Unavailable

23

Shield, Heat Exhaust

5252161

$43.99

24

Bushing

7556401

$4.99
