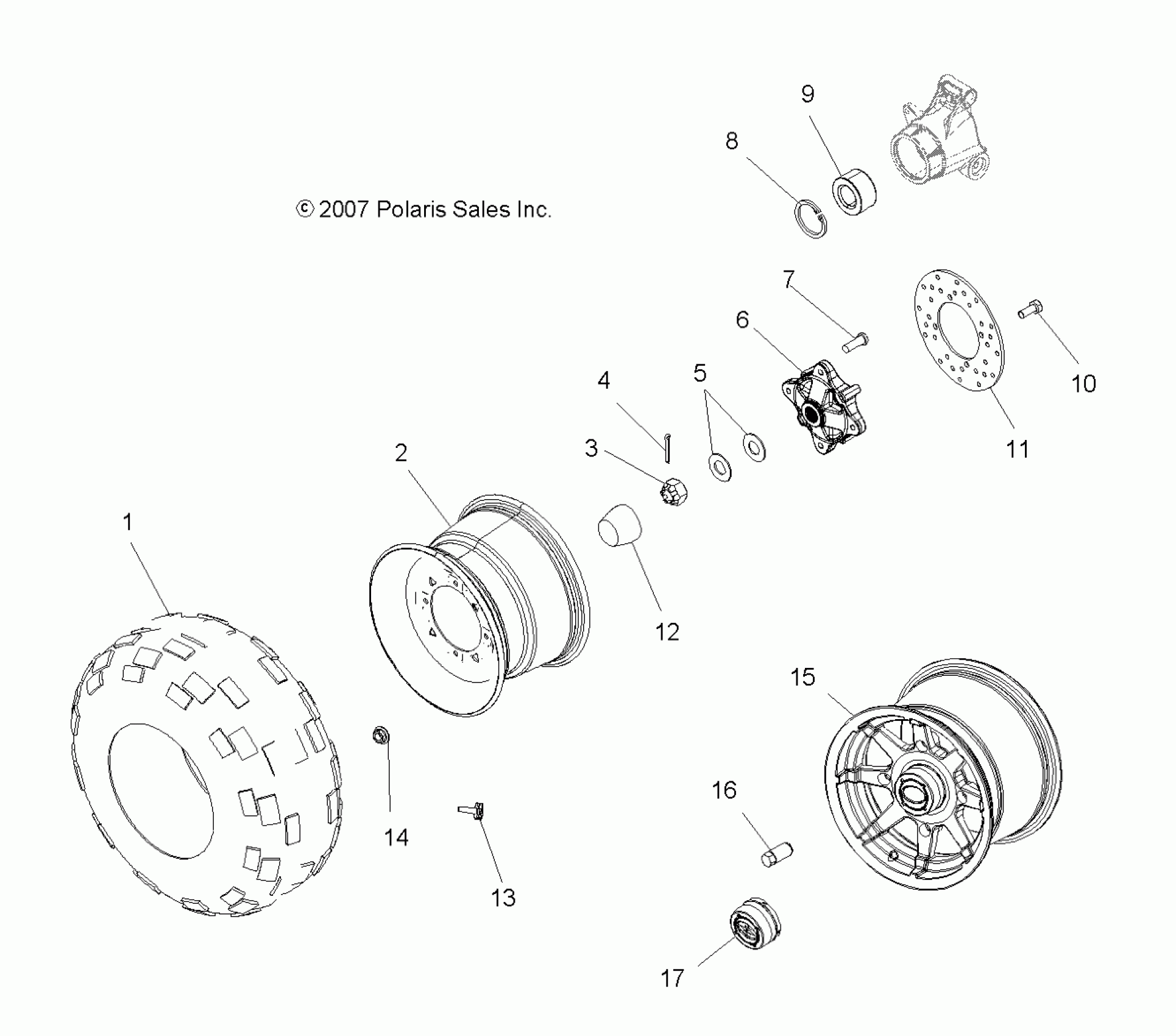

Polaris SPORTSMAN TOURING 500 EFI - A08DN50AF/AS/AW/AZ WHEELS, REAR - A08DN50AF/AS/AW/AZ (49ATVWHEELREAR08SPTRG500) Diagram

#

Description
Price

1

Tire, Rear, 25x11-12

5412451

Unavailable

2

Rim, Rear, Silver [AZ]

1520992-486

Unavailable

3

Nut, Castle

7543005

Unavailable

4

PIN, COTTER

7661404

$4.79

5

WASHER, CONE

7555796

$7.99

6

HUB, REAR WHEEL

5135113

Unavailable

7

Stud [AF][AS]

7518378

$1.59

7

Stud [AZ]

7515513

$1.49

8

RING, RETAINING

7710440

$10.39

9

Bearing

3585502

Unavailable

10

Bolt

7518653

$4.99

11

DISC, BRAKE, REAR

5248250

$75.99

12

Cover, Dust [AZ]

5413427

$24.27

13

VALVE-RIM

1525017

$5.59

14

NUT, FLANGE

7547237

$2.39

15

Rim, Rear, Cast [AF][AS]

1521161

$130.39

16

Nut, Wheel [AF][AS]

7547309

$3.59

17

CAP-RIM [AF][AS]

1521128

$20.39
