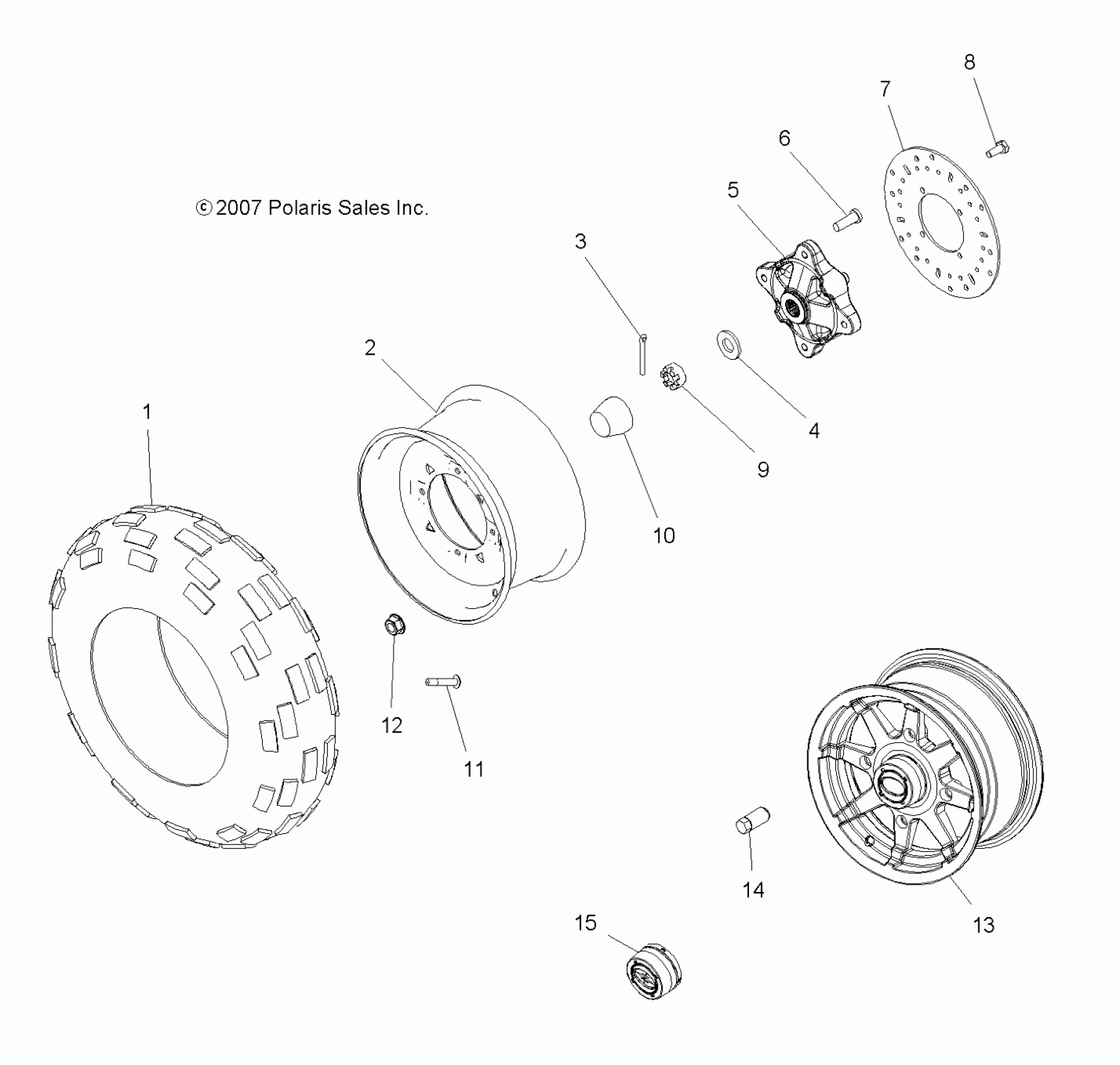

Polaris SPORTSMAN TOURING 500 EFI - A08DN50AF/AS/AW/AZ WHEELS, FRONT - A08DN50AF/AS/AW/AZ (49ATVWHEELFRT08SPTRG500) Diagram

#

Description
Price

1

Tire, Front, 25x8-12

5412396

Unavailable

2

Rim, Front, Silver [AZ]

1520263-486

Unavailable

3

PIN, COTTER

7661402

$1.86

4

WASHER

7556004

$7.19

5

HUB, WHEEL

5134310

Unavailable

6

Stud [AF][AS]

7518378

$1.59

6

Stud [AZ]

7515513

$1.49

7

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

8

BOLT

7512325

$2.39

9

NUT, SLOTTED

7542810

$3.19

10

Cover, Dust [AZ]

5413427

$24.27

11

VALVE-RIM

1525017

$5.59

12

NUT, FLANGE

7547237

$2.39

13

Rim, Front, Cast [AF][AS]

1521106

Unavailable

14

Nut, Wheel [AF][AS]

7547309

$3.59

15

CAP-RIM [AF][AS]

1521128

$20.39
