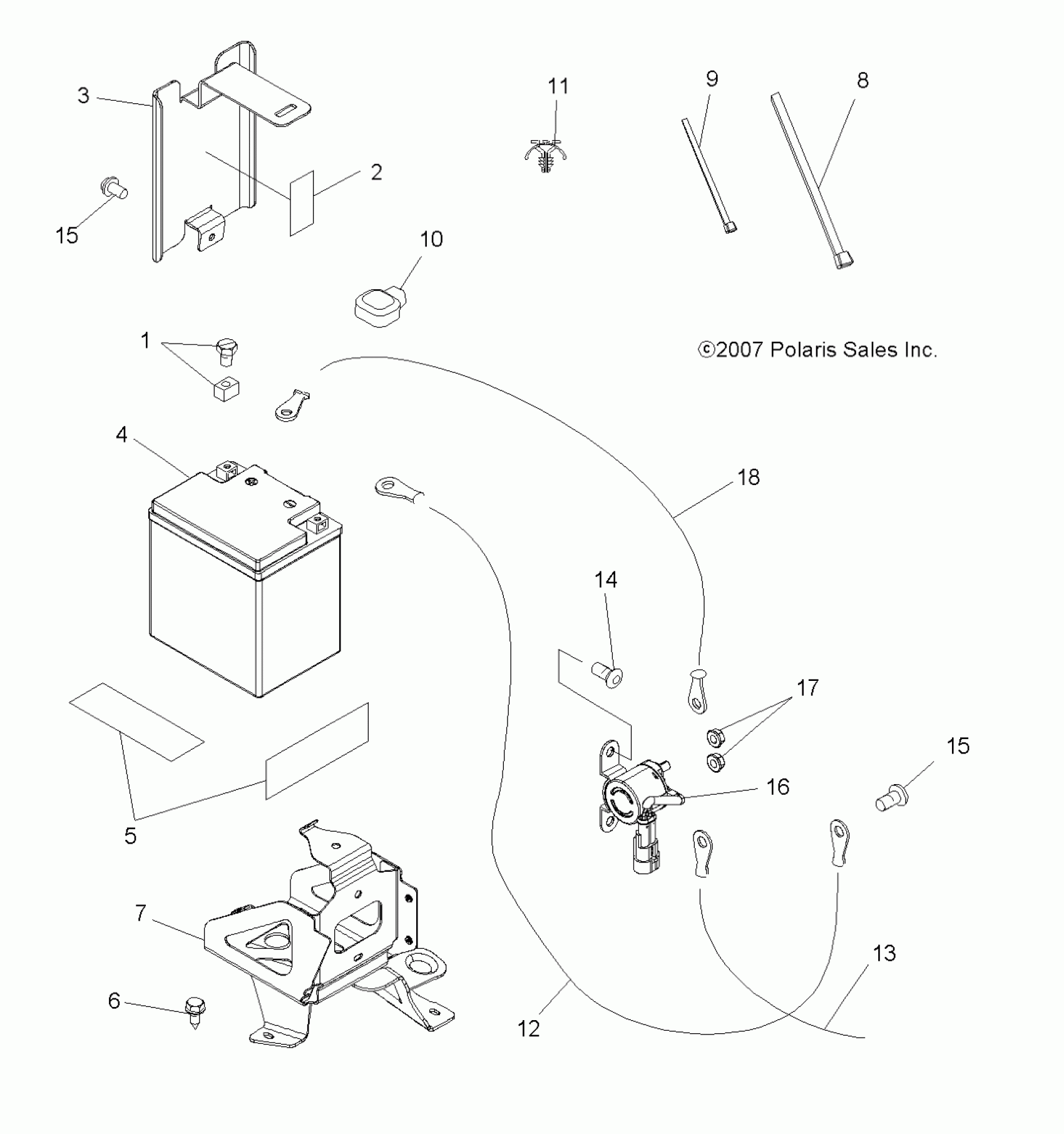

Polaris SPORTSMAN TOURING 500 EFI - A08DN50AF/AS/AW/AZ ELECTRICAL, BATTERY - A08DN50AF/AS/AW/AZ (49ATVBATTERY08SPX25) Diagram

#

Description
Price

1

KIT, BATTERY BOLT

2202213

$3.79

2

Pad, Battery

5813165

Unavailable

3

Shield, Heat, Battery

5250933

$59.99

4

Battery

4010595

Unavailable

5

PAD-BATTERY

5810290

$7.27

6

SCREW

7517386

$1.49

7

Box, Battery, Black

1016332-067

Unavailable

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

Boot

5413458

Unavailable

11

MOUNT, CABLE TIE

7080965

$7.19

12

Cable, Battery/Frame

4011552

$27.99

13

Cable, Solenoid/Starter

4010093

$47.99

14

SCREW

7512024

$4.79

15

Bolt

7512232

$1.49

15

Bolt

7512232

$1.49

16

SOLENOID, STARTER

4012001

Unavailable

17

NUT, FLANGE

7547270

$3.99

18

Cable, Battery/Solenoid [Built 10/01/07 and Before]

4011360

$23.19

18

Cable, Battery/Solenoid [Built 10/02/07 and After]

4012096

$7.43
