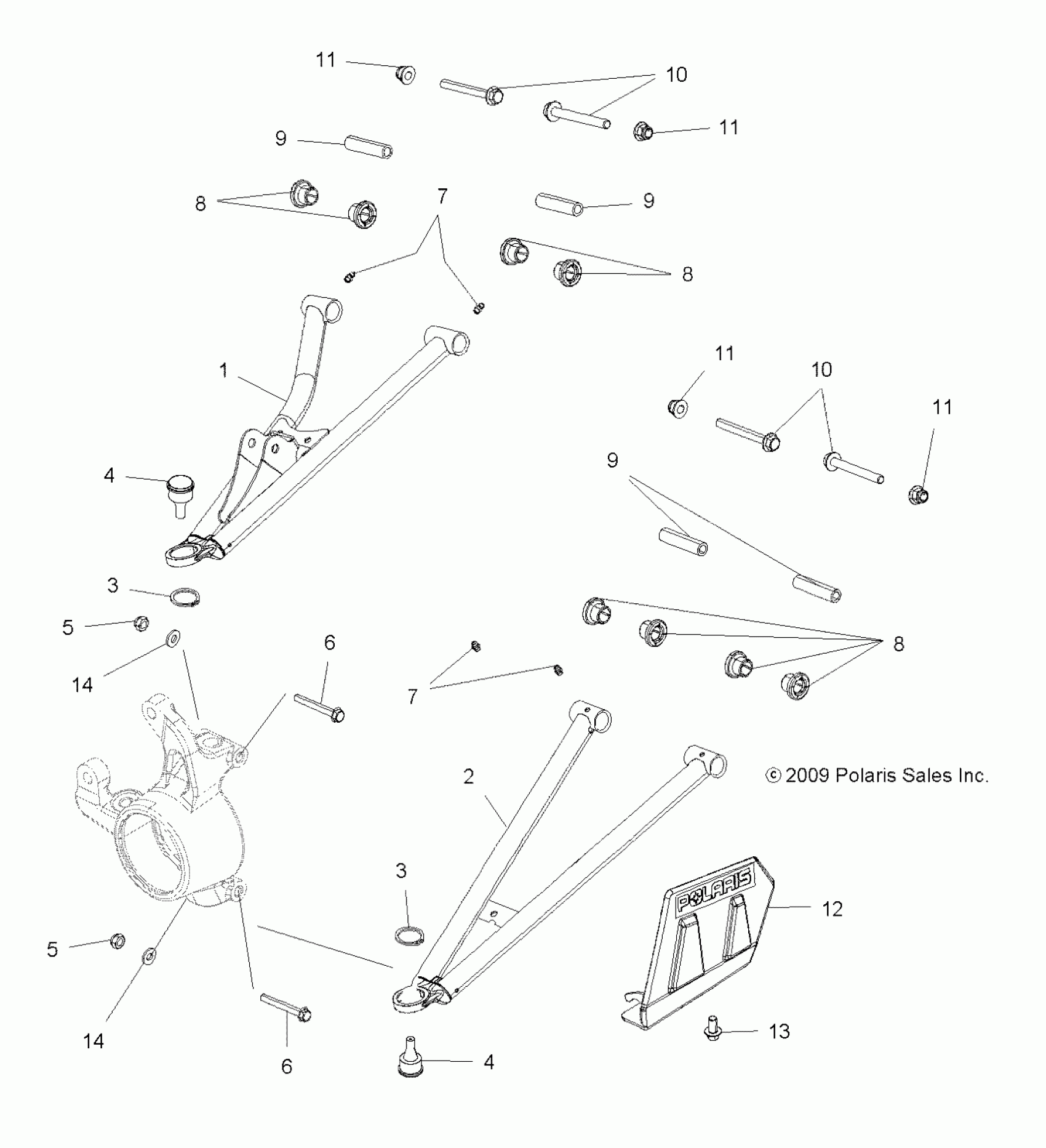

Polaris SPORTSMAN TOURING 1000 (R12) - A18SYE95BU SUSPENSION, FRONT A-ARMS - A18SYE95BU Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, FRONT, LH, BLACK

1019808-067

Unavailable

1

ARM, CONTROL, UPPER, FRONT, RH, BLACK

1019809-067

Unavailable

2

ARM, CONTROL, LOWER, FRONT, LH, BLACK

1019810-067

$127.99

2

ARM, CONTROL, LOWER, FRONT, RH, BLACK

1019811-067

$127.99

3

RING, RETAINING

7710533

$2.39

3

RING, RETAINING

7710533

$2.39

4

JOINT, BALL

7061220

$75.99

4

JOINT, BALL

7061220

$75.99

5

NUT, NYLOK

7547405

$1.49

5

NUT, NYLOK

7547405

$1.49

6

SCREW, FLANGE

7519212

$4.79

6

SCREW, FLANGE

7519212

$4.79

7

FITTING, LUBRICATING

7080433

$1.49

7

FITTING, LUBRICATING

7080433

$1.49

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

9

SHAFT, A-ARM

5137346

$14.39

9

SHAFT, A-ARM

5137346

$14.39

9

SHAFT, A-ARM

5137346

$14.39

10

BOLT, FLANGE

7518466

$4.79

10

BOLT, FLANGE

7518466

$4.79

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

12

SHIELD, CV, FRONT, LH,

5436657-070

$12.79

12

SHIELD, CV, FRONT, RH,

5436658-070

$12.79

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

14

WASHER

7556557

$1.49

14

WASHER

7556557

$1.49
