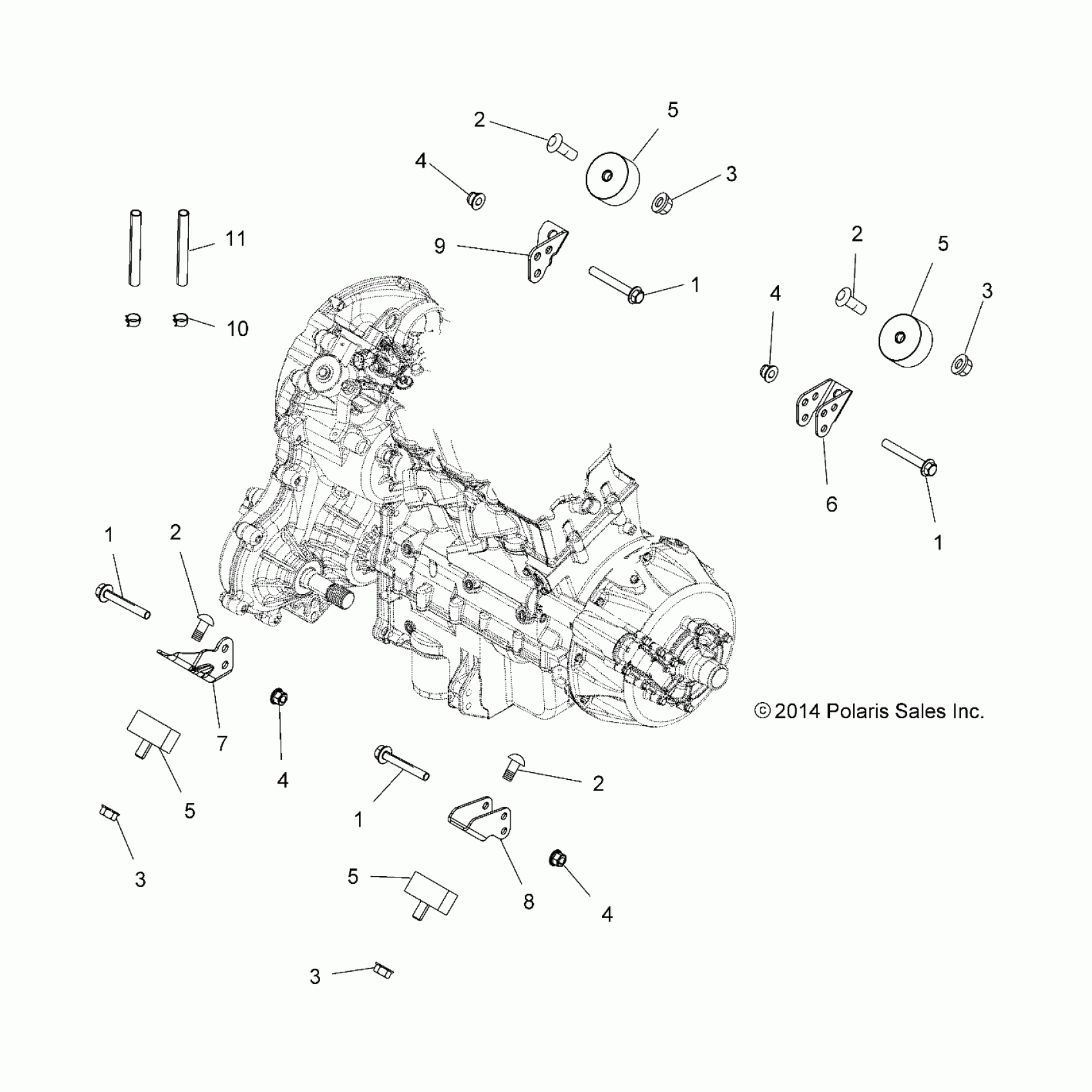

Polaris SPORTSMAN TOURING 1000 (R12) - A18SYE95BU ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A18SYE95BU Diagram

#

Description
Price

-

KIT, LONG BLOCK, 1000

2205142

$7,299.99

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

2

SCREW

7519032

$4.76

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

5

ISOLATOR

3022154

$42.74

5

ISOLATOR

3022154

$42.74

5

ISOLATOR

3022154

$42.74

5

ISOLATOR

3022154

$42.74

6

BRACKET, TRANSMISSION MOUNT, LH

5251716

$49.99

7

BRACKET, TRANSMISSION, RH

5252091

$44.51

8

BRACKET, ENGINE, MOUNT, RH

5251717

$48.56

9

BRACKET, TRANSMISSION, LH

5253340

$13.99

10

CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]

7081432

$3.97

11

LINE, FUEL [TRANSMISSION VENTING]

8450040-600

Unavailable

11

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41
