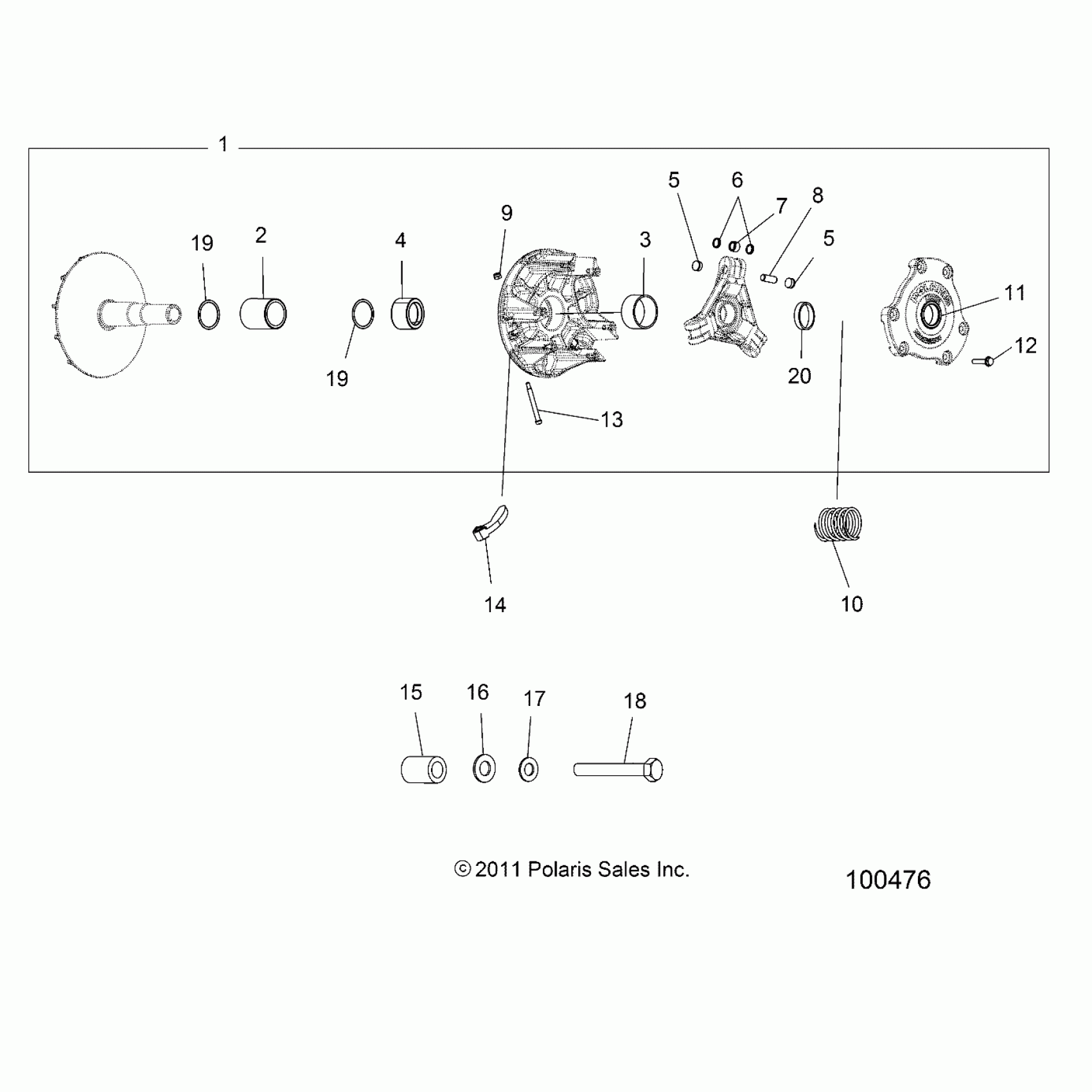

Polaris SPORTSMAN TOURING 1000 (R12) - A18SYE95BU DRIVE TRAIN, PRIMARY CLUTCH - A18SYE95BU (100476) Diagram

#

Description
Price

1

CLUTCH, DRIVE, EBS [INCL. 1-9,11-13,19]

1323377

$566.21

2

ASM., CLUTCH, ONEWAY

1521667

$59.99

3

BEARING

3514492

$31.99

4

SPACER-CLUTCH

5633000

$27.99

5

BUTTON, CLUTCH

5439254

$7.99

5

BUTTON, CLUTCH

5439254

$7.99

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT, FLEXLOC

7541906

$3.19

10

SPRING-CLUTCH, 42-140

7043805

$39.99

11

COVER, BEARING

3514684

$15.99

12

SCREW

7518062

$4.79

13

BOLT, SHOULDER

7512266

$3.19

14

WEIGHT-SHIFT,23-62G,PM

5632337

$31.99

15

BUSHING-.475X.770X.50

5437682

$4.79

16

WASHER, FLAT

7556468

$3.99

17

WASHER, INTERLOCK

7556377

$3.19

18

BOLT

7518868

$9.59

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

20

SPACER, CLUTCH LIMITER

5438737

$3.99
