Description

Price

1

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

1333482

$3,172.39

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

3

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

3234634

$13.59

6

NUT, LOCK HEX FLANGE NYLON 45428

3233961

$2.79

7

WASHER, THRUST 0.5 X 0.937 X 0.063

3234636

$7.99

8

WASHER, THRUST 0.625 X 1 X 0.063

3234637

$11.19

9

PIN, DOWEL 6 X 20

3234330

$7.19

10

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

11

RING, SNAP

3233834

$10.39

12

RING RETAINING, IRR 7200-118

3233699

$7.19

13

RING, RETAINING EXTERNAL SHR-66

3234318

$3.19

14

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

15

RING, RETAINING BASIC INTERNAL, 62MM

3234741

$9.59

16

RING, RETAINING BASIC EXTERNAL, SHR-50

3234639

$10.39

17

RING, RETAINING EXTERNAL USC-112

3234641

$12.79

18

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

19

KIT, LUK INPUT SHAFT PACK

2204343

$31.99

20

WASHER, THRUST 1.3 X 0.995 X 0.065

3234248

$9.59

21

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

21

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

22

SHIM, 1.17 OD X 0.675 ID

3234644

$12.79

23

WASHER, THRUST 1.568 OD X .1.110 ID

3234646

$23.99

24

WASHER, THRUST � 33 X � 29 X 1.5

3234757

$11.19

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING

3233020

$47.99

28

BEARING BALL,6304STD 20X52X15

3234651

$15.99

29

BEARING, BALL, 6203 C3 17X40X12

3234274

$27.99

30

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.99

31

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

32

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.99

33

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.99

34

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$7.99

35

SPRING, WAVE, 1.6 ID X 0.375

3234688

$10.39

36

SPRING, PARK PAWL TORSION

3234787

$23.99

37

SPRING, COMPRESSION 0.45 OD X 1.58

3234790

$19.99

38

GEARCASE GTO COVER, MACH.

3235790

$633.59

39

BELLHOUSING, MACH

3235196

$43.99

40

GEARCASE, MAIN, GTO MACH

3235428

$299.99

41

PAWL, PARK

3234692

Unavailable

42

GEAR, SECTOR 38T

3234694

$27.99

43

BULLET DETENT

3234695

$31.99

44

SPROCKET, 44 TOOTH

3234998

$67.99

45

SHAFT, REVERSE 53T

3234774

$195.99

46

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

47

GEAR, HELICAL 42T

3235133

$75.99

48

PLUG, M18 X 1.5

3234755

$27.99

49

SHAFT, INPUT 25T REM

3235063

$315.99

50

SHAFT, INPUT

3235194

$231.99

51

SHAFT, OUTPUT REAR

3235789

$391.99

52

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

52

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

53

GEAR, 67T

3234706

$87.99

54

SPROCKET 48T, 6-FACE

3234707

$35.99

55

Sprocket, 23T

3235544

$39.99

56

SHAFT, SHIFT BELLCRANK

3234712

$63.99

57

RAIL, SHIFT SHAFT

3234714

$27.99

58

PLUG, DETENT

3234715

$35.99

59

RAIL, PARK SHAFT

3234716

$27.99

60

DOG, ENGAGEMENT GTO, LOW

3234718

$175.99

61

DOG, ENGAGEMENT GTO, REV/LOW

3235341

$171.99

62

FORK, SHIFT

3235342

$83.99

63

KNOCK PIPE

3234765

$12.79

64

FORK, SHIFT

3234766

$83.99

65

DOG, ENGAGEMENT GTO, HIGH

3235190

$67.99

66

SUBASSY, SWITCH SHAFT

3234767

$115.99

67

SUBASSY OUTPUT, FRONT W/BEARINGS (#26)

3235788

$239.99

68

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$307.99

69

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.99

70

BELLCRANK, 15T SPLINE

3234724

$23.99

71

Deflector, Oil

3234725

$12.79

72

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$23.99

73

WASHER, RIBBED

3235508

$3.99

74

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

75

CHAIN SILENT, 0.5 X .375P X 64P

3234738

$231.99

76

SWITCH-ROTARY,6 PIN

3236115

$131.99

77

O-RING

3233840

$11.19

78

O-RING, -14 VITON

3233828

$6.79

79

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

80

O-RING-N70 9.5MM X 2MM

3236171

$10.55

81

SEAL, 35 X 62 X 8

3234769

$43.99

82

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

3234892

$35.99

82

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

3234892

$35.99

82

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

3234892

$35.99

83

LABEL, OIL

2877606

Unavailable

84

SENSOR-SPEED,TRANS

4013908

Unavailable

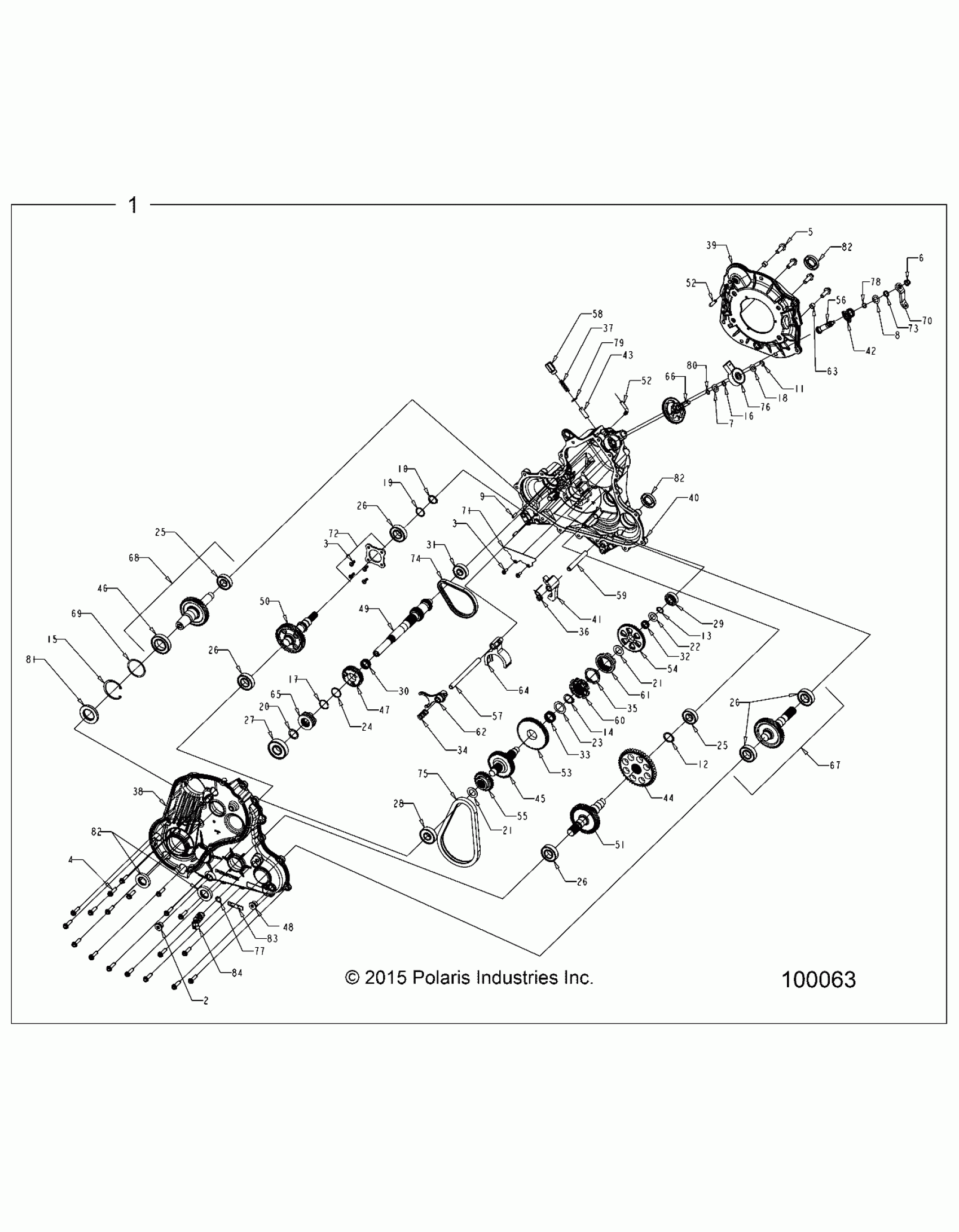

Polaris SPORTSMAN TOURING 1000 (R12) - A18SYE95BU DRIVE TRAIN, MAIN GEARCASE - A18SYE95BU Diagram

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW, TORX PAN HD M6 X 1 X 16

SCREW, TORX PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

NUT, LOCK HEX FLANGE NYLON 45428

WASHER, THRUST 0.5 X 0.937 X 0.063

WASHER, THRUST 0.625 X 1 X 0.063

PIN, DOWEL 6 X 20

RING,RETAINING BASIC,EXTERNAL 0.984

RING, SNAP

RING RETAINING, IRR 7200-118

RING, RETAINING EXTERNAL SHR-66

RING, RETAINING BASIC, EXTERNA

RING, RETAINING BASIC INTERNAL, 62MM

RING, RETAINING BASIC EXTERNAL, SHR-50

RING, RETAINING EXTERNAL USC-112

WASHER,THRUST,0.446 X 0.88 X 0.025

KIT, LUK INPUT SHAFT PACK

WASHER, THRUST 1.3 X 0.995 X 0.065

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.17 OD X 0.675 ID

WASHER, THRUST 1.568 OD X .1.110 ID

WASHER, THRUST � 33 X � 29 X 1.5

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING BALL,6304STD 20X52X15

BEARING, BALL, 6203 C3 17X40X12

BEARING, NEEDLE, SPLIT CAGE

BEARING, BALL 6303, 17 X 47 X 14

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, 28 X 33 X 13

SPRING, COMPRESSION, 0.648 O.D. X 1.33

SPRING, WAVE, 1.6 ID X 0.375

SPRING, PARK PAWL TORSION

SPRING, COMPRESSION 0.45 OD X 1.58

GEARCASE GTO COVER, MACH.

BELLHOUSING, MACH

GEARCASE, MAIN, GTO MACH

PAWL, PARK

GEAR, SECTOR 38T

BULLET DETENT

SPROCKET, 44 TOOTH

SHAFT, REVERSE 53T

BEARING-BALL 6007 C3 35 X 62 X 14

GEAR, HELICAL 42T

PLUG, M18 X 1.5

SHAFT, INPUT 25T REM

SHAFT, INPUT

SHAFT, OUTPUT REAR

TUBE, VENT, 90 -1/4" HOSE

TUBE, VENT, 90 -1/4" HOSE

GEAR, 67T

SPROCKET 48T, 6-FACE

Sprocket, 23T

SHAFT, SHIFT BELLCRANK

RAIL, SHIFT SHAFT

PLUG, DETENT

RAIL, PARK SHAFT

DOG, ENGAGEMENT GTO, LOW

DOG, ENGAGEMENT GTO, REV/LOW

FORK, SHIFT

KNOCK PIPE

FORK, SHIFT

DOG, ENGAGEMENT GTO, HIGH

SUBASSY, SWITCH SHAFT

SUBASSY OUTPUT, FRONT W/BEARINGS (#26)

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

KIT, GTO, PRIMARY SHIM PACK

BELLCRANK, 15T SPLINE

Deflector, Oil

SUBASSY BEARING COVER W/SCREWS (#3)
