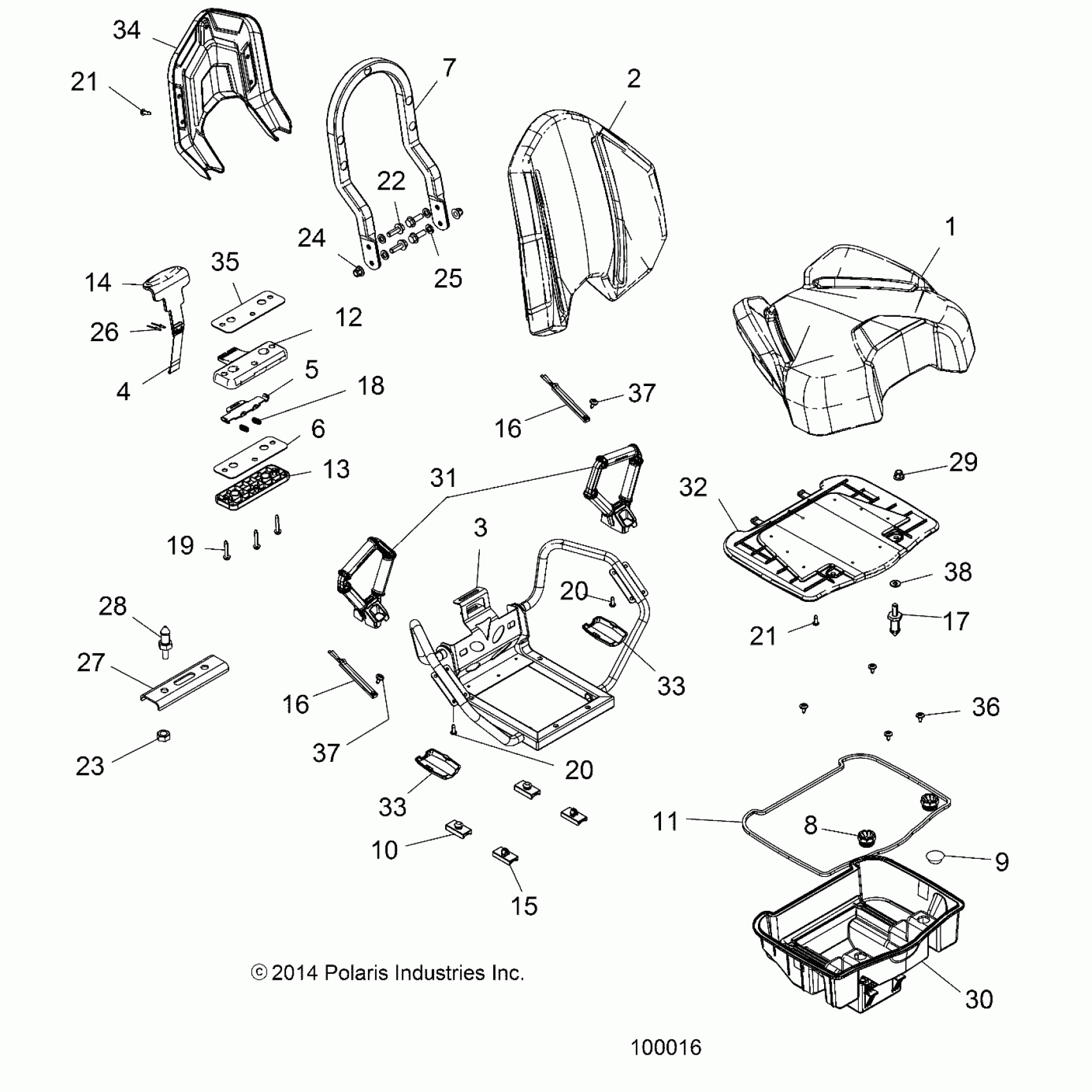

Polaris SPORTSMAN TOURING 1000 (R12) - A18SYE95BU BODY, SEAT, PASSENGER - A18SYE95BU Diagram

#

Description
Price

1

ASM., SEAT, BASE, PASSENGER

2635522

Unavailable

2

ASM., SEAT, UPPER, PASSENGER

2635524

Unavailable

3

FRAME, BASE, SEAT, JET BLACK

1021269-626

Unavailable

4

ASM., STRAP, SEAT LATCH

2686230

$13.59

5

PLATE, LATCH, SEAT

5259991

Unavailable

6

PLATE, LATCH, SEAT, GUIDE

5259990

$7.99

7

TUBE, FRAME, BACK SEAT, JET BLACK

5338614-626

$109.99

8

GROMMET, LATCH, SEAT

5415539

$3.19

9

PLUG-COMPARTMENT

5412981

Unavailable

10

BUMPER, RUBBER

5415293

$3.19

11

SEAL, STORAGE, PASSENGER

5415486

$63.99

12

SEAT, LATCH, BODY, TOP

5451665

$13.59

13

SEAT, LATCH, BODY, BOTTOM

5451666

$13.59

14

HANDLE, SEAT, LATCH, BASE

5451667

$9.59

15

MOUNT, SEAT, BASE, FRONT

5451669

$14.39

16

INSERT, GRIP, PASSENGER

5451795

$5.59

16

INSERT, GRIP, PASSENGER

5451795

$5.59

17

Pin, Seat Latch

5910306

$10.39

18

SPRING, SEAT LATCH

7082026

$7.19

19

SCREW

7518504

$1.59

20

BOLT

7518656

$3.99

20

BOLT

7518656

$3.99

21

SCREW

7519045

$3.19

21

SCREW

7519045

$3.19

22

SCREW

7519059

$3.19

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

24

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

25

WASHER-LOCK, 7/16-B

7552614

$1.59

26

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

27

PLATE, MOUNT, PIN, BLACK

5259998-067

$23.99

28

Plunger, Latch

7519251

$19.99

29

NUT, HEX FLANGE

7547494

$3.99

30

BOX, STORAGE

5451765

$99.99

31

ASM., HANDLE, PASSENGER, OVERMOLD

2635708

Unavailable

32

LID, STORAGE

5451784

$35.99

33

HANDLE, COVER

5451794

$5.59

33

HANDLE, COVER

5451794

$5.59

34

COVER, SEAT BACK

5451766

$39.99

35

PLATE, LATCH, SPACER

5260517

$7.19

36

SCREW

7518936

$3.99

37

SCREW

7517867

$1.59

37

SCREW

7517867

$1.59

38

WASHER

7558301

$1.49
