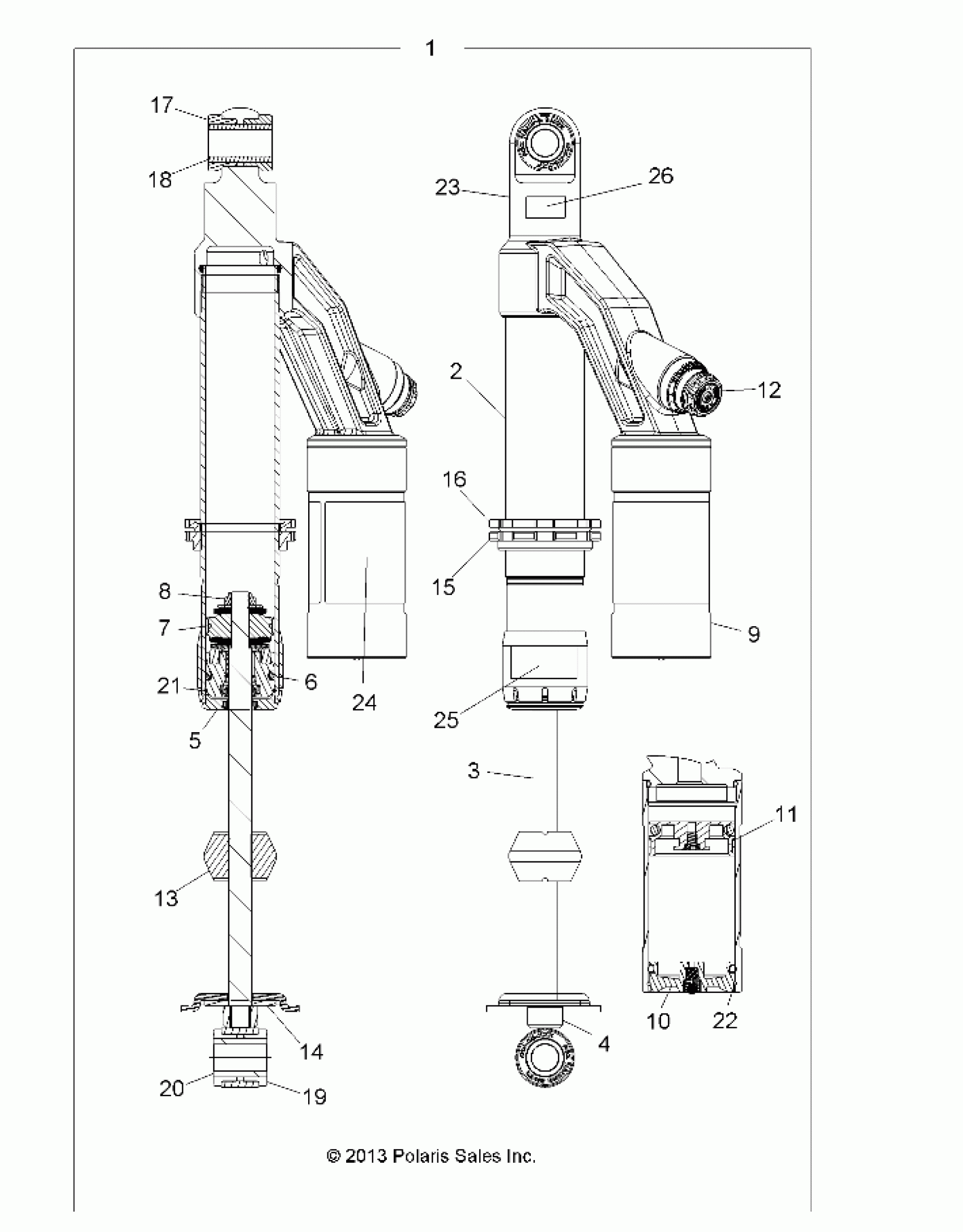

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP SUSPENSION, SHOCK, REAR - A16SYE95AP Diagram

#

Description
Price

1

SHOCK, REAR, LH

7044100

$754.99

1

SHOCK, REAR, RH

7044101

$714.99

2

BODY

1500921

Unavailable

3

SHAFT

1500922

$154.90

4

BEARING, EXTERNAL

1500889

$44.51

5

ASM., BEARING CAP

1500924

Unavailable

6

ASM., BEARING

1500925

$124.99

7

ASM., PISTON

----

Unavailable

8

Nut, Lock

1500016

$12.70

9

RESERVOIR

1500926

$154.99

10

ASM., END CAP

1500765

$124.99

11

ASM., PISTON, FLOATING

1500781

$74.99

12

ASM., LSC ADJUSTER

1501002

Unavailable

13

BUMPER

1500902

$32.37

14

WASHER

1500896

$19.84

15

RING, PRELOAD

1500928

Unavailable

16

RING, PRELOAD

1500895

$40.46

17

BUSHING

1500307

$7.94

18

SLEEVE

1500929

$36.41

19

BUSHING

1500898

$8.24

20

SLEEVE

1500497

$36.41

21

WIRE, RING, PRELOAD

1500097

$4.76

22

RING, PRELOAD

1500236

$9.52

23

ASM., BODY CAP

1501000

$37.49

23

ASM., BODY CAP

1501001

$37.49

24

DECAL, RESERVOIR

1500931

Unavailable

25

GUIDE, SPRING

1500930

$53.24

26

DECAL, DESIGNATOR, LH

1501004

$7.99

26

DECAL, DESIGNATOR, RH

1501005

$7.99
