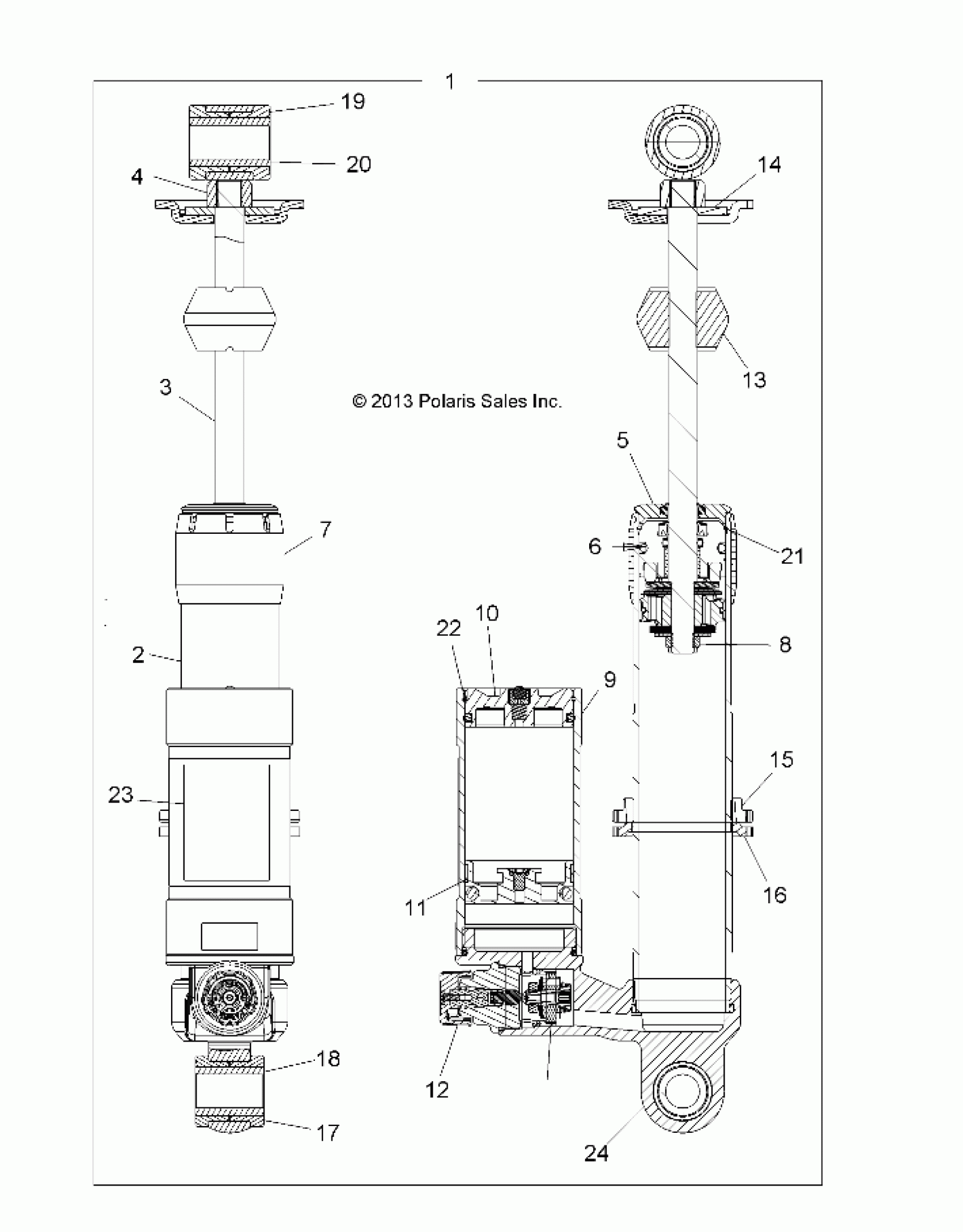

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP SUSPENSION, SHOCK, FRONT - A16SYE95AP Diagram

#

Description
Price

1

SHOCK, FRONT

7044245

$579.99

2

BODY

1500933

Unavailable

3

SHAFT

1500934

Unavailable

4

EYELET, SHAFT

1500889

$44.51

5

ASM., BEARING CAP

1500924

Unavailable

6

ASM., BEARING

1500925

$124.99

7

GUIDE, SPRING

1500930

$53.24

8

Nut, Lock

1500016

$12.70

9

RESERVOIR

1500926

$154.99

10

ASM., END CAP

1500765

$124.99

11

ASM., PISTON

1500781

$74.99

12

ASM., DAMPENING, ADJUST, LSC

1501006

Unavailable

13

BUMPER

1500902

$32.37

14

WASHER

1500896

$19.84

15

RING, PRELOAD

1500928

Unavailable

16

RING, PRELOAD

1500895

$40.46

17

BUSHING, EYELET

1500103

$8.89

18

SLEEVE

1500497

$36.41

19

BUSHING

1500307

$7.94

20

SLEEVE

1500929

$36.41

21

RING, RETAINING, WIRE

1500097

$4.76

22

RING, RETAINING

1500236

$9.52

23

DECAL, RESERVOIR

1500931

Unavailable

24

ASM., BODY CAP

1500904

$159.99
