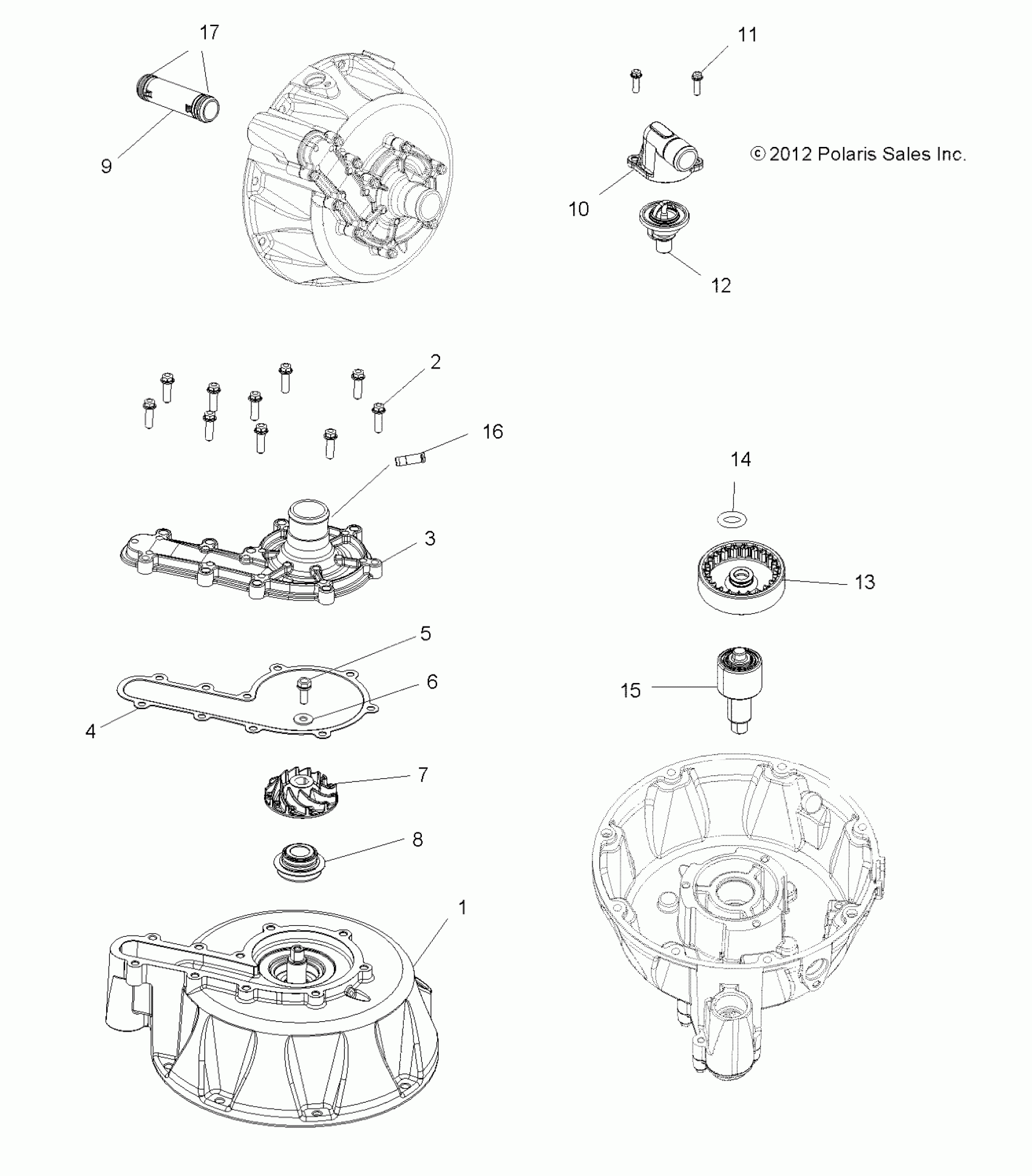

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP ENGINE, COOLING SYSTEM and WATER PUMP - A16SYE95AK/AP Diagram

KIT, STATOR COVER W/WATERPUMP [INCL. 4,8,13,14,15, TUBING, NYLON, BOLT, WATER PUMP DRIVE, LH, GASKET, STATOR COVER, STATOR, FITTING]

2204781

Unavailable

SCREW

7518855

Unavailable

COVER, WATER PUMP [INCL. COVER, FITTING, GASKET]

2204955

$55.99

GASKET, COVER

5412954

$31.99

BOLT

7518854

Unavailable

WASHER, FLAT

7556451

Unavailable

IMPELLER, WATER PUMP, CAST

5632427

$43.99

SEAL

3610136

$71.99

TUBE, WATER TRANSFER [INCL. O-RINGS]

5334925

$79.99

COVER-THERMOSTAT

5632606

$39.99

SCREW

7518576

$3.19

SEAL-THERMOSTAT

5413948

$7.99

THERMOSTAT

7052561

$39.99

COUPLER, SPLINE INT, WP BEARING

5137242

$47.99

O-RING

5414286

Unavailable

BEARING W/SHAFT

3514633

Unavailable

FITTING, COOLANT

-------

Unavailable

O-RING

5412955

$7.19
