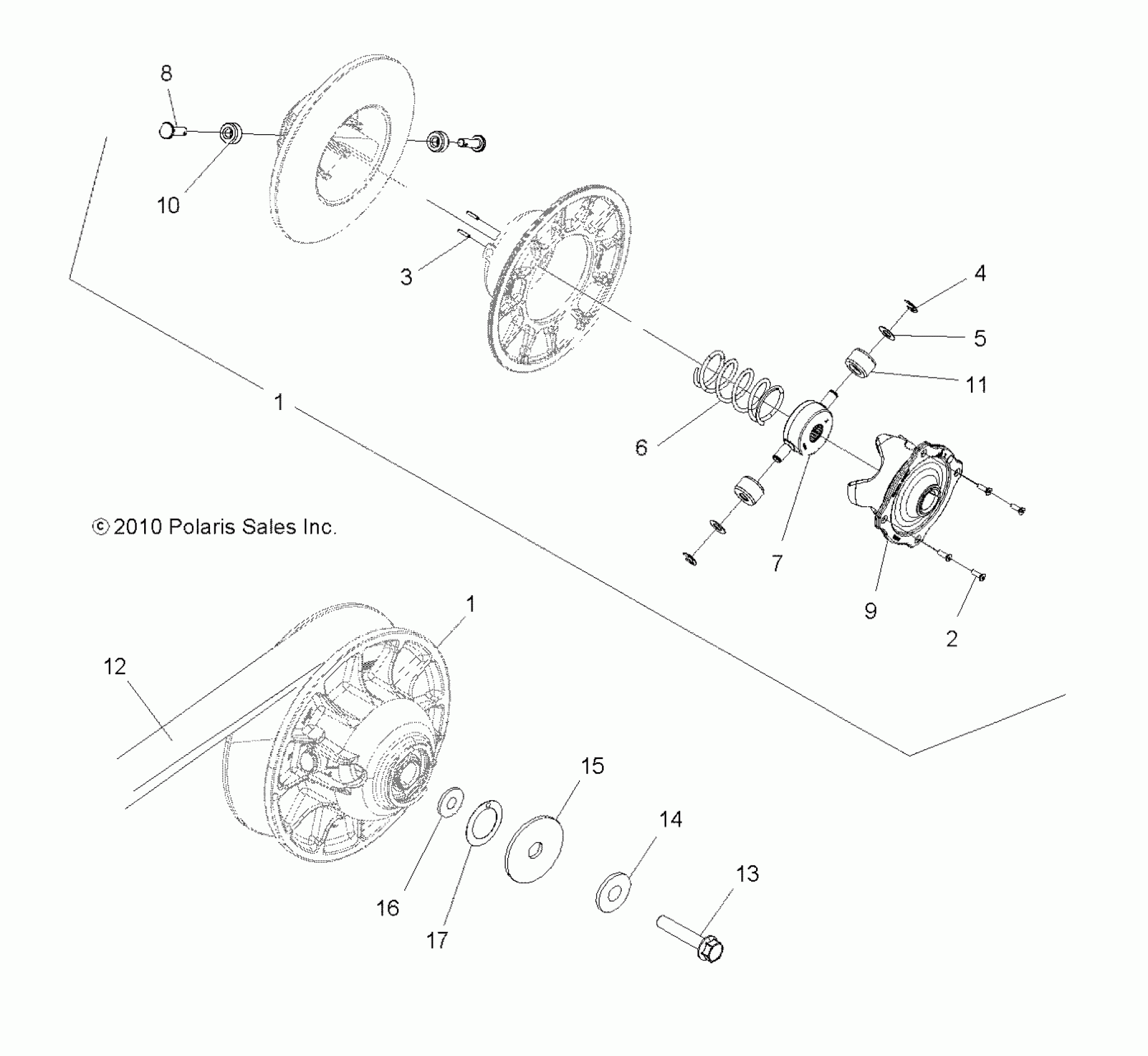

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP DRIVE TRAIN, SECONDARY CLUTCH - A16SYE95AK/AP Diagram

#

Description
Price

1

CLUTCH, DRIVEN [INCL. 2-11]

1323101

Unavailable

1

CLUTCH, DRIVEN [INCL. 2-11]

1323101

Unavailable

2

SCREW-HELIX, PATCH

3234754

$5.56

3

PIN,SPRING SLOTTED .125X.625

3234202

$3.97

4

RING, RETAINING

3235087

$7.14

5

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

6

SPRING, DRIVEN

7044086

$79.98

7

SPIDER

3235089

$97.13

8

ROLLER-BTD,9.58X28.83X13.97,TO

3514930

$31.75

9

ASM., CAM

3235590

$399.99

10

ROLLER, CLUTCH

5434534

$48.56

11

ROLLER, CLUTCH

3235093

$48.56

12

BELT, DRIVE

3211160

$139.99

12

BELT-HD,DRIVE,13.91,CD [HD OPTION]

3212331

$166.24

13

BOLT, FLANGE

7519210

$1.59

14

WASHER, FLAT

5137414

$6.35

15

WASHER, FLAT

5137415

$13.49

16

WASHER, FLAT

7556580

Unavailable

17

WASHER, THRUST

7556553

$30.54
