- SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP
DRIVE TRAIN, FRONT GEARCASE INTERNALS - A16SYE95AK/AP

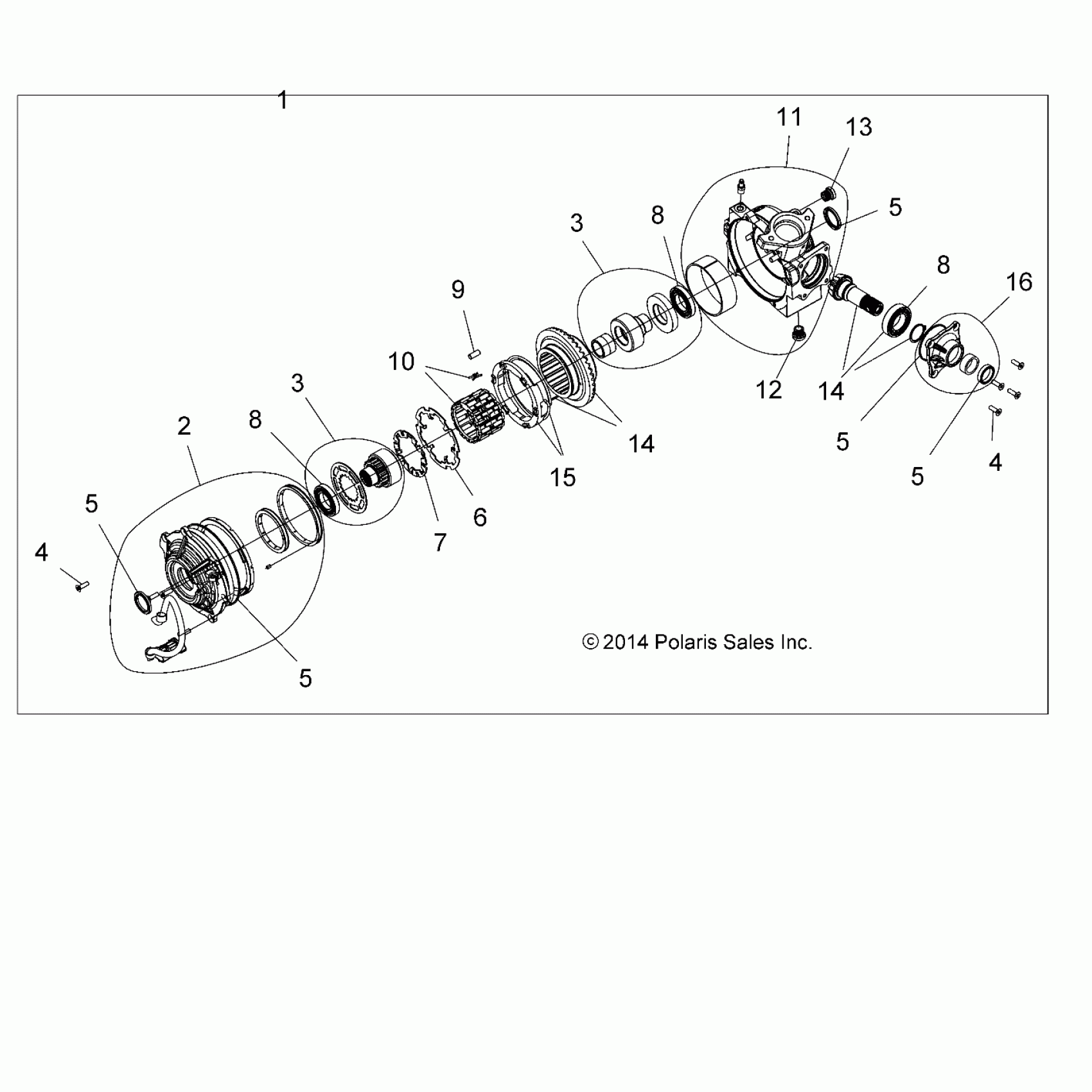

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP DRIVE TRAIN, FRONT GEARCASE INTERNALS - A16SYE95AK/AP Diagram
#
Description
Price
1
ASM-GEARCASE FR,12 PCKT,ADC,ZN [INCL. ALL]
1333570
Unavailable
2
ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING]
3235521
Unavailable
3
ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]
3235910
Unavailable
3
ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.]
3235910
Unavailable
4
KIT, FASTENERS [INCL. 10 SCREWS]
3235433
$35.99
4
KIT, FASTENERS [INCL. 10 SCREWS]
3235433
$35.99
5
KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3235434
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3235434
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3235434
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3235434
Unavailable
5
KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS]
3235434
Unavailable
6
PLATE, 4WD, ARMATURE
3235485
Unavailable
7
PLATE, ARMATURE BD
3235626
$95.99
8
BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$119.99
8
BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$119.99
8
BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$119.99
9
K-CLUTCH ROLLS [INCL. SET OF 24 ROLLERS]
3235624
$153.41
10
ASM-ROLL CAGE [INCL. CAGE, 24 CLIPS]
3235625
$163.99
11
ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
3235436
Unavailable
12
KIT-PLUG,DRAIN
2203738
$35.99
13
KIT-PLUG,FILL
2203739
$39.99
14
ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]
3235636
Unavailable
14
ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR]
3235636
Unavailable
15
KIT-TORSION,SPRING AND RETAINER
3235712
$35.99
16
ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING]
3235843
$167.99
