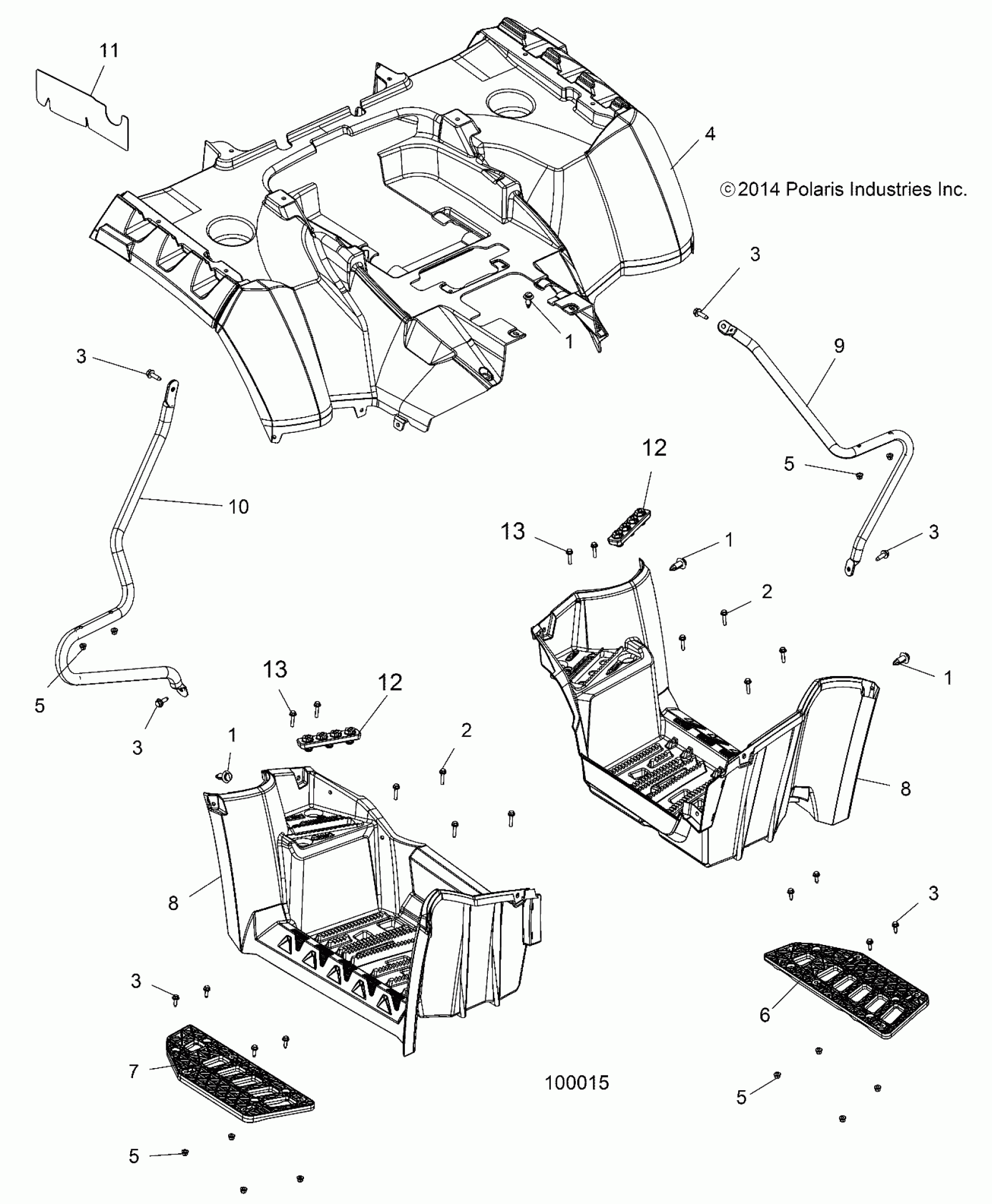

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP BODY, REAR CAB and FOOTWELL - A16SYE95AK/AP Diagram

#

Description
Price

1

Rivet

7661855

$1.49

1

Rivet

7661855

$1.49

1

Rivet

7661855

$1.49

2

SCREW, FLANGE

7519202

$3.99

2

SCREW, FLANGE

7519202

$3.99

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

4

CAB, REAR, SPMN TRG, PAINTED, PEARL WHITE [AP]

5451775-538

$391.99

4

CAB-REAR,SPMN TRG,PNTD,BLK PRL [AK]

5451775-666

$391.99

5

NUT-M6 FLANGE,NYLOC

7547274

$1.49

5

NUT-M6 FLANGE,NYLOC

7547274

$1.49

5

NUT-M6 FLANGE,NYLOC

7547274

$1.49

5

NUT-M6 FLANGE,NYLOC

7547274

$1.49

6

Support, Footpad, LH

5437600

$39.99

7

SUPPORT, FOOTPAD, RH

5437601

$39.99

8

Footwell, Black, LH

5437888-070

$227.99

8

FOOTWELL, BLACK, RH

5439078-070

$227.99

8

Footwell, Black, LH

5437888-070

$227.99

8

FOOTWELL, BLACK, RH

5439078-070

$227.99

9

TUBE, FOOTWELL SUPPORT, LH, BLACK

5338574-329

$95.99

10

TUBE, FOOTWELL SUPPORT, RH, BLACK

5338575-329

$91.99

11

FOIL, SHIELD, SEATWELL

5814246

$12.79

12

PAD, FOOTWELL, SHORT

5413165

$23.99

12

PAD, FOOTWELL, SHORT

5413165

$23.99

13

SCREW

7518579

$3.99

13

SCREW

7518579

$3.99

14

ADDED FOIL [SEE BODY PANELS, THERMAL SHIELDS PAGE]

-------

Unavailable
