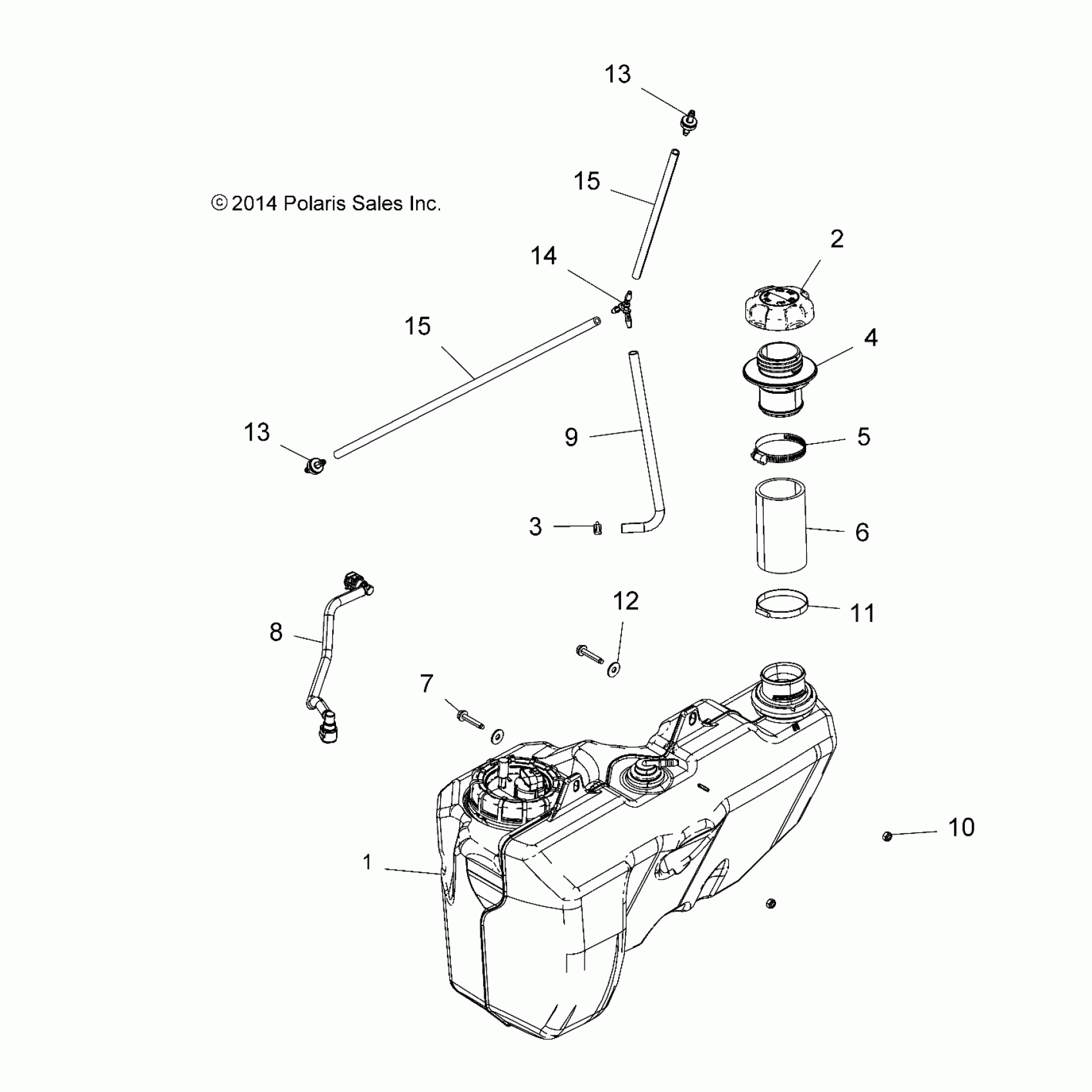

Polaris SPORTSMAN TOURING 1000 (R12) - A16SYE95AK/AP BODY, FUEL TANK - A16SYE95AK/AP Diagram

#

Description
Price

1

KIT, FUEL PUMP [INCL. PUMP ASM., GASKET, NUT, INSTRUCTIONS]

2205525

Unavailable

1

ASM., FUEL TANK W/PUMP, 4 BAR [INCL. PUMP]

2521415

Unavailable

2

CAP-GAS TANK [INCL. GASKET]

5439075

$23.99

3

CLAMP, HOSE

7080236

$1.59

4

INLET, FUEL

5436898

$79.99

5

Clamp, Narrow Band

7080413

$3.19

6

HOSE, FUEL FILL

5413142

$31.99

7

SCREW, FLANGE

7519202

$3.99

8

ASM., FUEL LINE

2521315

$43.99

9

LINE, VENT

8450126-27

$7.99

10

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

11

CLAMP, CONSTANT TENSION

7081413

$11.19

12

Washer, Flat

7555859

$1.49

13

VALVE, CHECK, VACUUM

7052390

$7.27

13

VALVE, CHECK, VACUUM

7052390

$7.27

14

FITTING, Y

7052589

$3.73

15

FUEL LINE

8450003-1525

Unavailable

15

FUEL LINE

8450003-1525

Unavailable
