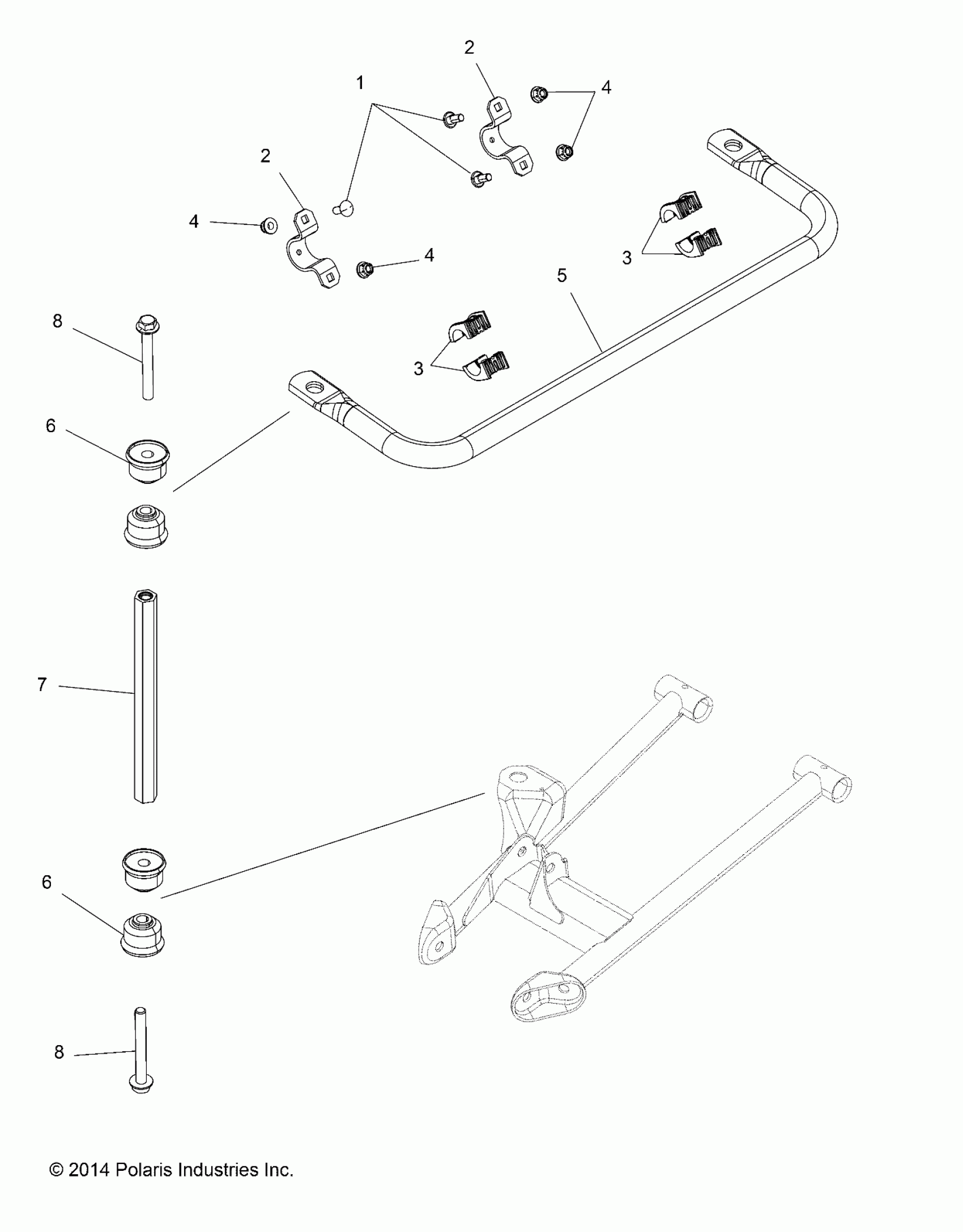

Polaris SPORTSMAN TOURING 1000 - A15SYE95AX/L95AP SUSPENSION, STABILIZER BAR - A15SYE95AX/L95AP (49ATVSTABILIZER15TR1000) Diagram

#

Description
Price

1

SCREW

7519324

$3.17

2

BRACKET, STEERING BUSHING, UPPER

5257028

$32.37

2

BRACKET, STEERING BUSHING, UPPER

5257028

$32.37

3

BUSHING TORSION BAR

5437423

$6.35

3

BUSHING TORSION BAR

5437423

$6.35

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

4

Nut, Flange

7547317

$2.38

5

TUBE, STABILIZER, FORMED, BLACK

5336853-067

$62.92

6

BUSHING

5414877

$3.17

6

BUSHING

5414877

$3.17

7

ROD, LINKAGE

5138936

$52.60

8

SCREW

7519896

$7.14

8

SCREW

7519896

$7.14
