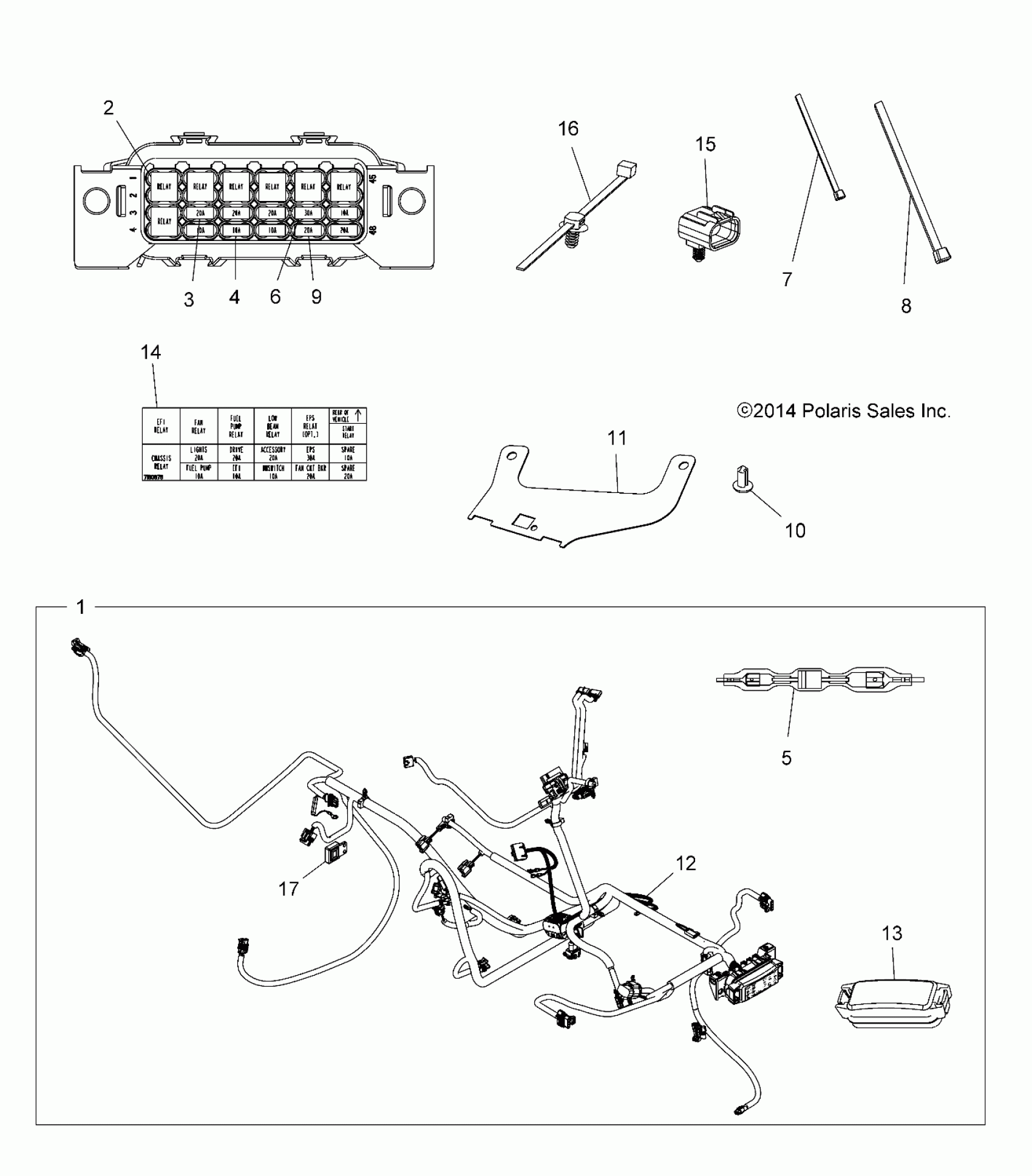

Polaris SPORTSMAN TOURING 1000 - A15SYE95AX/L95AP ELECTRICAL, HARNESS - A15SYE95AX/L95AP (49ATVHARNESS15850TRG) Diagram

#

Description
Price

1

HARNESS, MAIN [INCL. 1-6,9,12-15, ALL KITS, COVER]

2412595

Unavailable

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

KIT, HARNESS, TPS

2878498

$113.32

2

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6 AMP

2411035

$51.99

6

FUSE-MAIN,30 AMP

2434015

$7.19

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

10

CLIP, PUSH ON

7670125

$7.99

11

BRACKET, FUSE BLOCK

5257893

$10.39

11

SCREW

7518914

$3.19

12

Kit, Fusible Link, .8 MM

2202607

$39.99

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

13

COVER, FUSEBOX

4015011

$55.99

13

SEAL, FUSE CENTER

5415598

$8.79

14

LABEL, FUSE BOX

7180678

Unavailable

15

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

MODULE, RESISTOR

4014055

Unavailable
