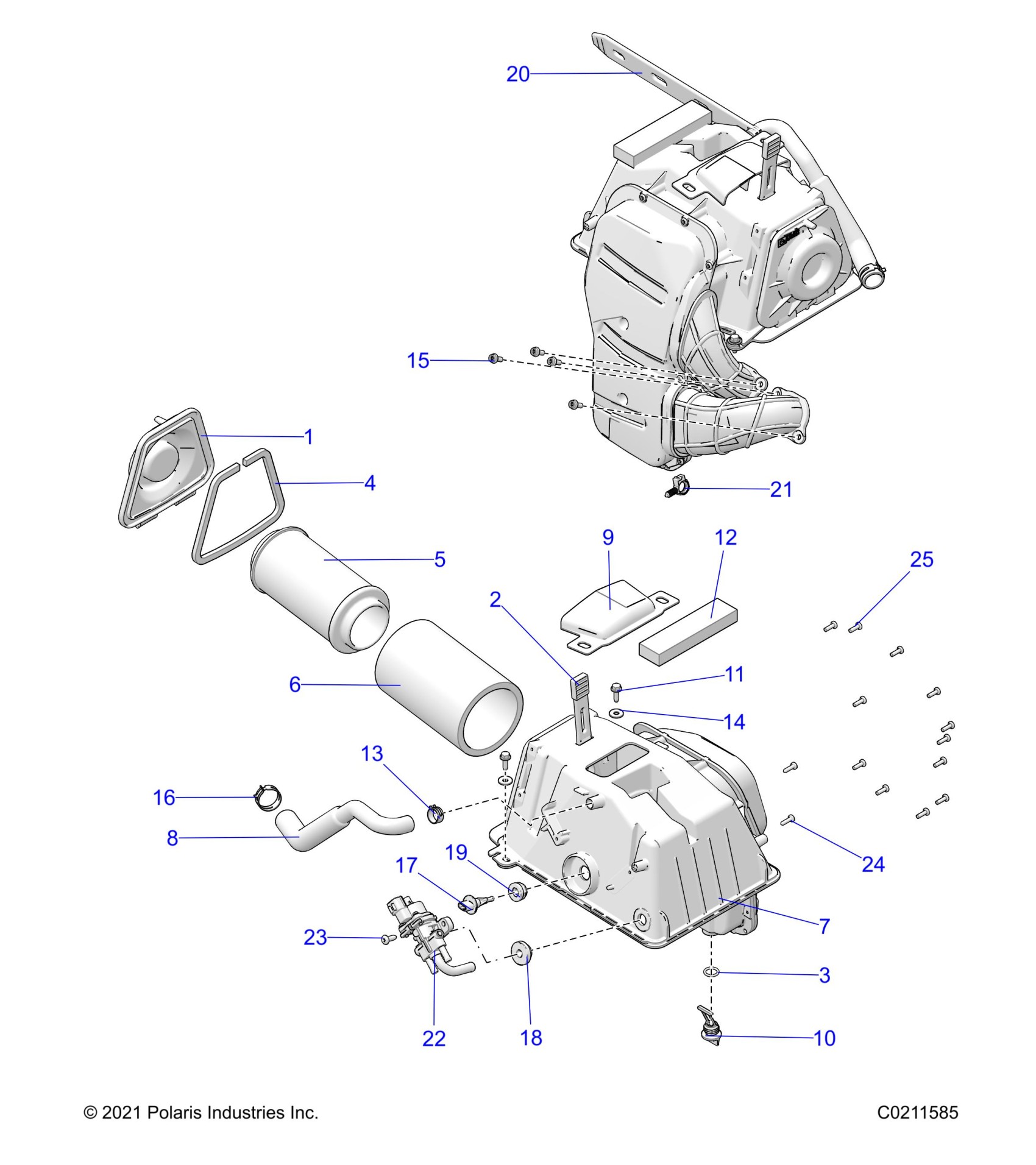

Polaris SPORTSMAN TOURING 1000 48" 49S (R01) - A23SYY95AD ENGINE, AIR INTAKE - A23SYY95AD (C0211585) Diagram

Description

Price

COVER, AIRBOX

5438983

$39.99

STRAP-AIRBOX TOP

5433150

$24.27

O-RING

5414246

$1.59

SEAL, AIRBOX COVER

5813359

$6.79

FILTER, AIR INTAKE

7082101

Unavailable

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

HOSE, BREATHER, TWIN

5414322

$39.99

HOOD, AIR INTAKE

5414252

$39.99

PLUG, AIR BOX

5451429

$14.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

FOAM-CAB,SGUARD,254X38.1X19.05

5813409

$6.39

CLAMP-HOSE,SPRING .81

7081026

$7.99

WASHER-FL .281X.750X.062-Y

7555859

$1.49

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

Sensor, Air Temperature

2410687

$143.99

GROMMET, SUPPORT, TRUNK

5413423

$3.19

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

STRAP, ECU

5414193

$27.99

Clip, Plastic, Dart, Nylon

4010589

$2.39

VALVE, IAC

4013313

$175.99

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99
