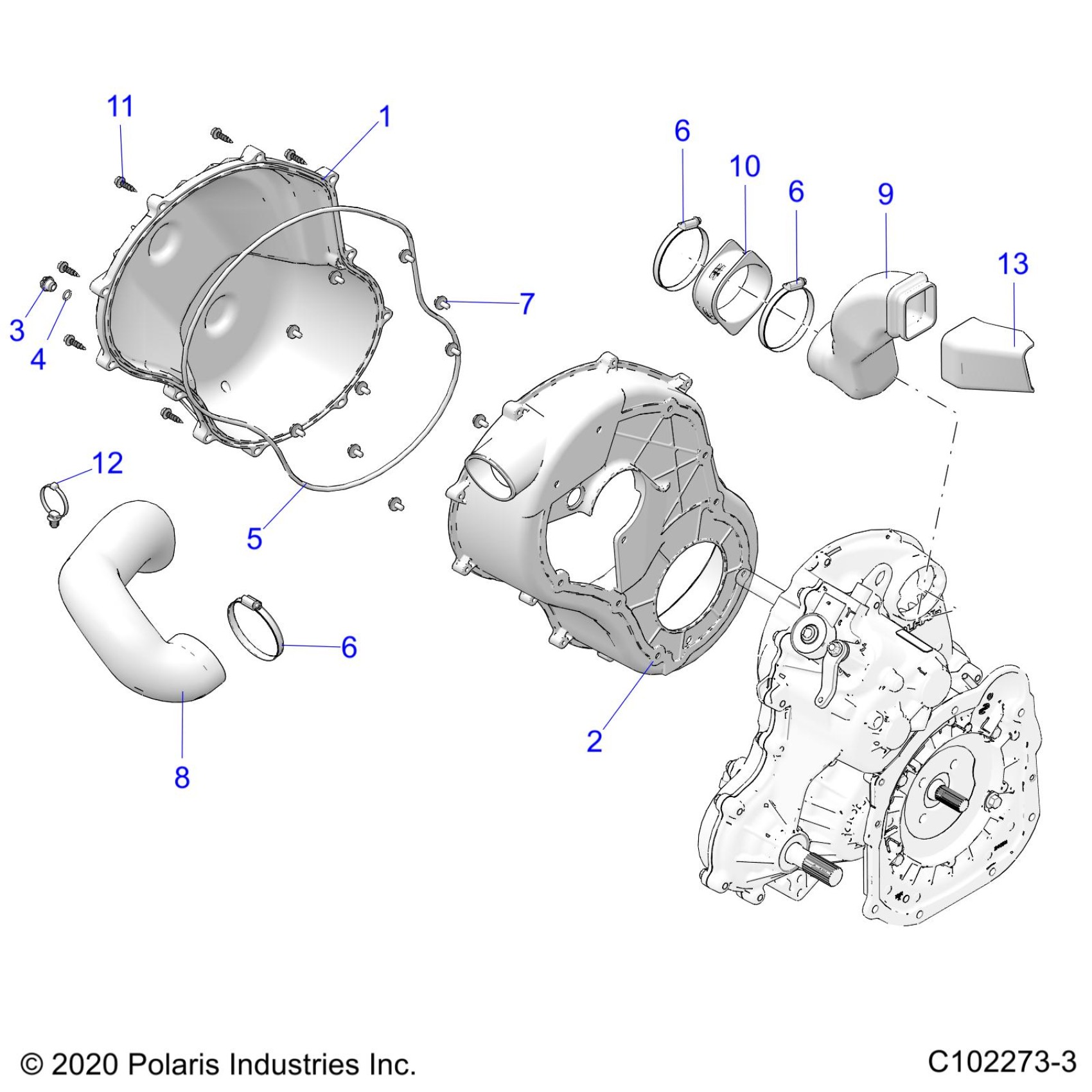

Polaris SPORTSMAN TOURING 1000 48" 49S (R01) - A23SYY95AD BODY, CLUTCH COVER - A23SYY95AD (C102273-3) Diagram

#

Description

Price

1

Asm., Cover, Clutch, Outer [INCL. 3,4]

2633919

$149.75

2

COVER, CLUTCH INNER

5438127

$178.08

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

4

O RING-.364X.504X.07

5410542

$4.84

5

SEAL, COVER, CLUTCH

5526454

$36.41

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

7

SCR-M6X1.0X14,PN/TX

7520472

$3.17

8

CLUTCH-OUTLET,TRG

5415638

$74.99

9

DUCT-AIR INLET,CLUTCH

5436820

$48.56

10

Boot, Clutch, Inlet

5413177

$40.46

11

SCR-#14X1-1/4,HI/LO/TAPER-Y

7519849

$3.17

12

CLIP-DUCT,OUTLET

7082264

$7.94

13

BOOT, INLET, DUCT

5413516

$9.70
