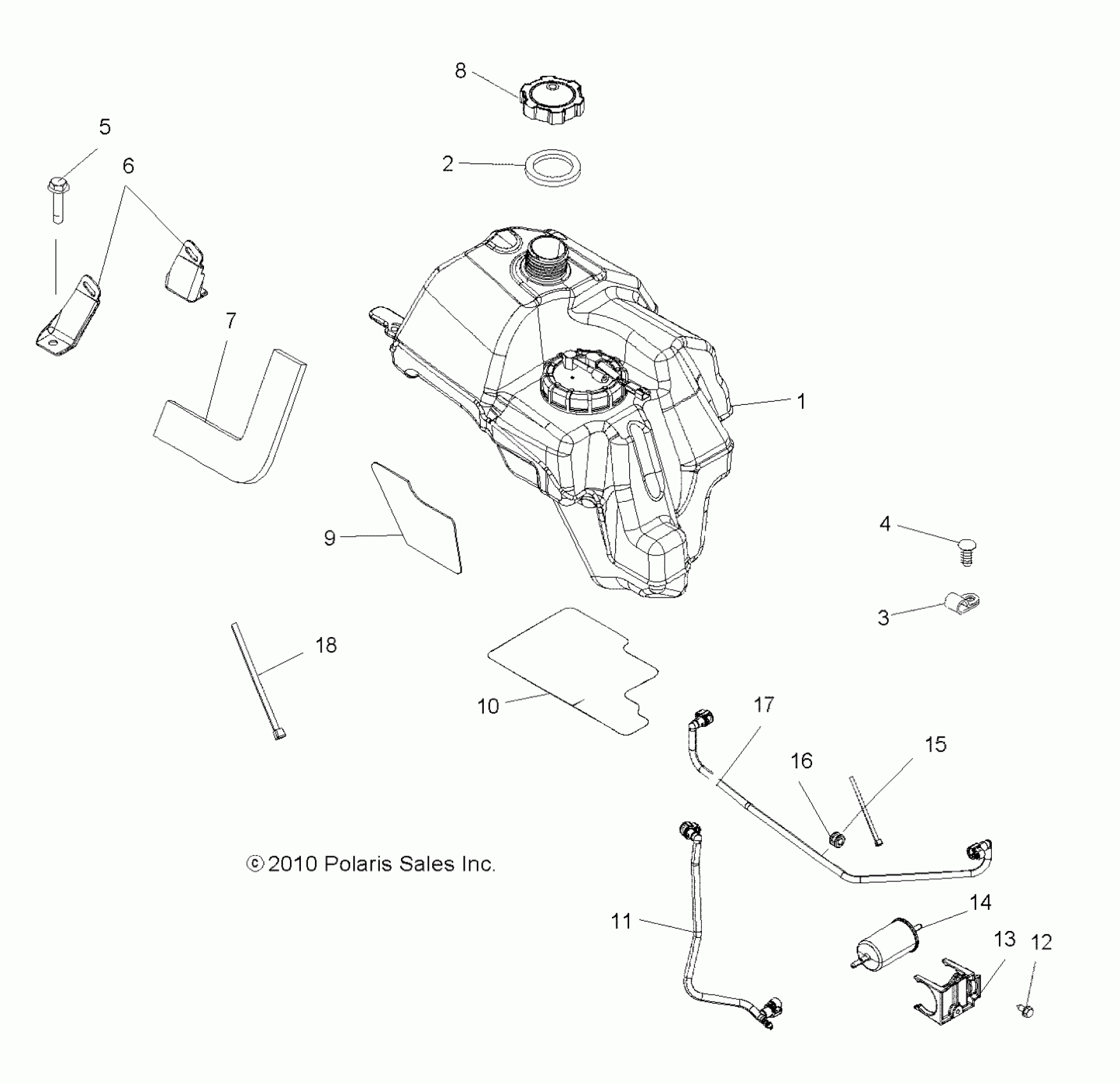

Polaris SPORTSMAN FOREST TRACTOR 500 EFI - A11MN50ET BODY, FUEL TANK ASM. - A11MN50ET (49ATVFUEL11SP500TR) Diagram

#

Description
Price

1

Asm., Tank, Fuel [Incl. Pump, 9,10]

2520947

$739.85

2

GASKET

5812123

$5.65

3

CLAMP, CABLE

7080499

$5.59

4

Clip

7661953

$1.49

5

SCREW

7517219

$4.79

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

7

SEAL, FOAM

5812265

$27.99

8

Cap, Gas, Vented [Incl. 2]

2520957

$59.99

9

FOIL

5813282

$7.19

10

FOIL

5813218

$8.79

11

Line, Fuel, Tank to Filter

2520791

Unavailable

12

Bolt

7512232

$1.49

13

Mount, Fuel Filter

5436013

$8.79

14

Filter, Fuel

2520464

$39.99

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Grommet

5413317

$2.39

17

Line, Fuel, Filter to Rail

2520807

Unavailable

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41
