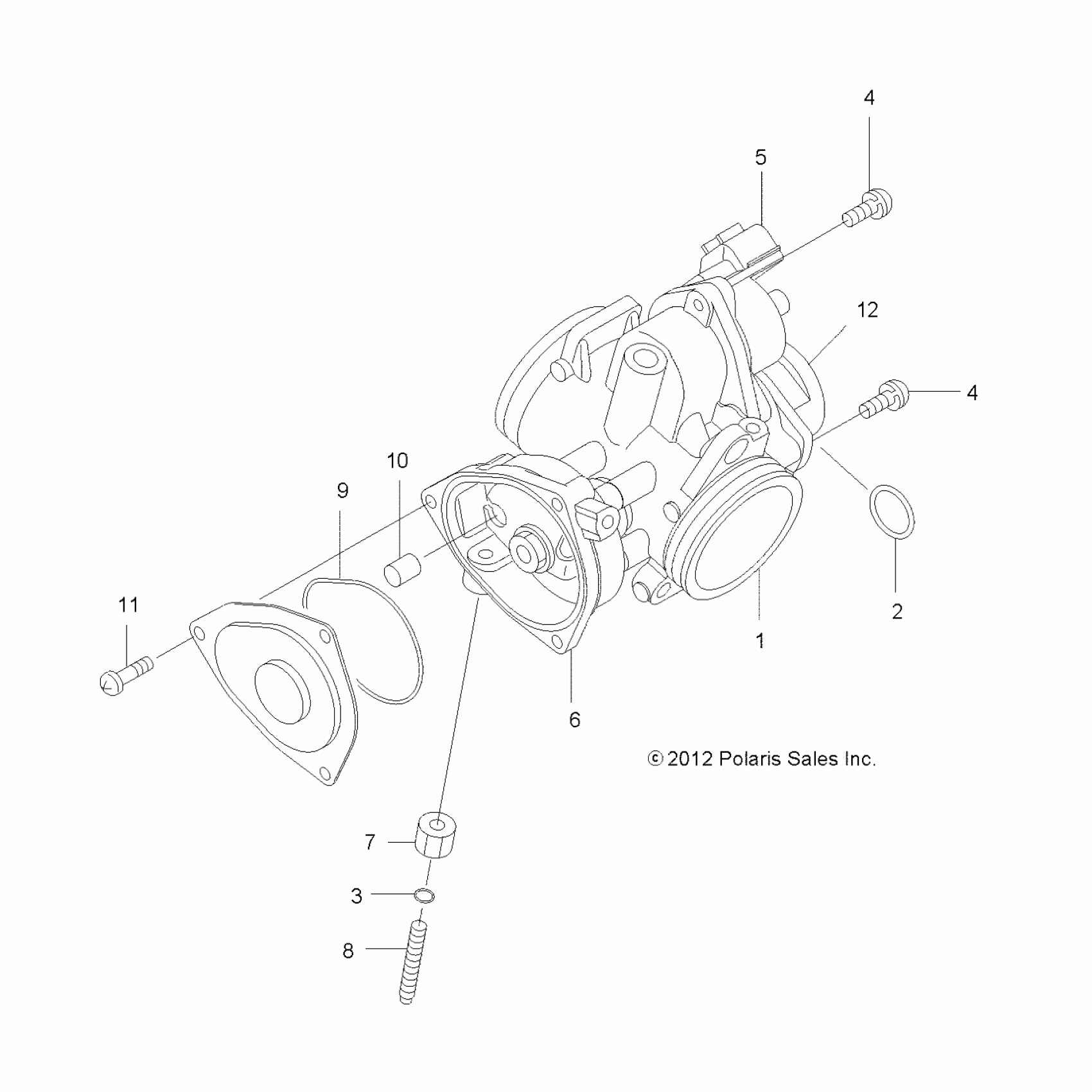

Polaris SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX ENGINE, THROTTLE BODY - A12MN50ET/EX (49ATVTHROTTLEBODY12SP500) Diagram

#

Description
Price

1

Asm., Throttle Body [Incl. 2,4-6,12]

3131739

$859.99

2

O-RING

3131682

$28.32

3

O-RING

3131501

$2.83

4

SCREW

3131628

$5.69

4

SCREW

3131628

$5.69

5

KIT, HARNESS, IAC

2878507

$179.99

5

MOTOR, ISC STEPPING

3131629

$237.49

6

COVER

3131643

$28.99

7

NUT

3131644

$29.99

8

SCREW, ADJUST

3131645

$39.99

9

O-RING

3131646

$3.22

10

GUIDE, CABLE

3130543

$32.37

11

SCREW

3130924

$1.59

12

SENSOR, THROTTLE POSITION

3140173

$232.74
