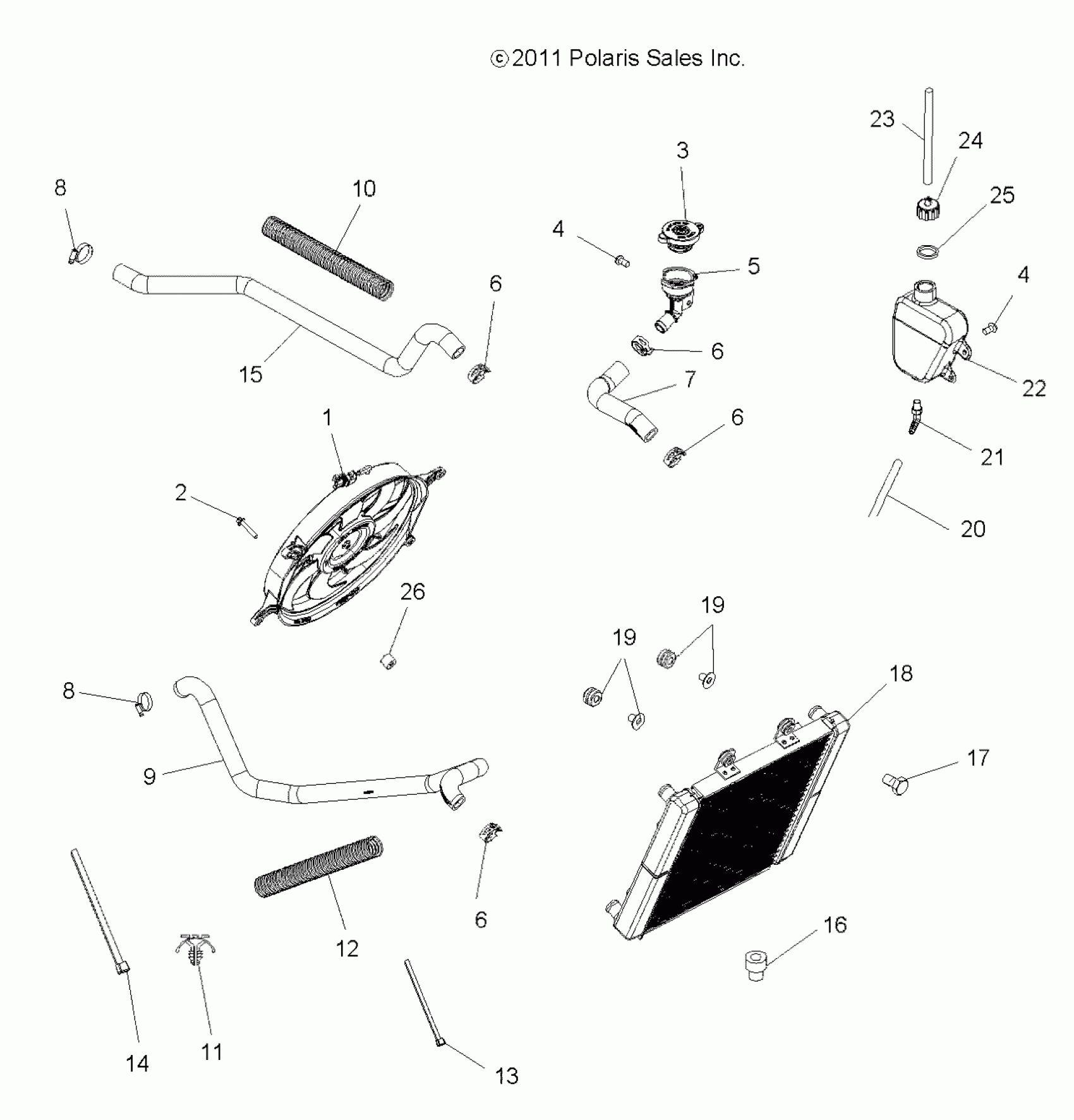

Polaris SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX ENGINE, COOLING SYSTEM - A12MN50ET/EX (49ATVCOOL12SP500TR) Diagram

#

Description
Price

1

ASM., FAN AND MOTOR

2411330

$189.59

2

SCREW

7516827

$6.39

3

Cap, Pressure

1240508

$48.56

4

Screw

7512084

$1.49

4

Screw

7512084

$1.49

5

NECK, FILLER

5412402

$23.99

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

7

HOSE, FILLER NECK

5414228

$14.39

8

CLAMP, HOSE

7080696

$5.59

8

CLAMP, HOSE

7080696

$5.59

9

HOSE, RADIATOR, LOWER

5414217

$47.99

10

CONDUIT, FLEX

5521793-25

Unavailable

11

MOUNT, CABLE TIE

7080965

$7.19

12

CONDUIT, FLEX

5521793-25

Unavailable

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

HOSE, RADIATOR, UPPER

5414218

$47.99

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

17

Screw

7515179

$2.39

18

Asm., Radiator [Incl. 19]

1240520

$409.26

19

ASM., GROMMET AND INSERT

5413155

$3.99

19

ASM., GROMMET AND INSERT

5413155

$3.99

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

TANK-SURGE

5436936

$75.99

23

LINE, FUEL

8360009-600

Unavailable

24

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

SPACER

5137361

$5.59
