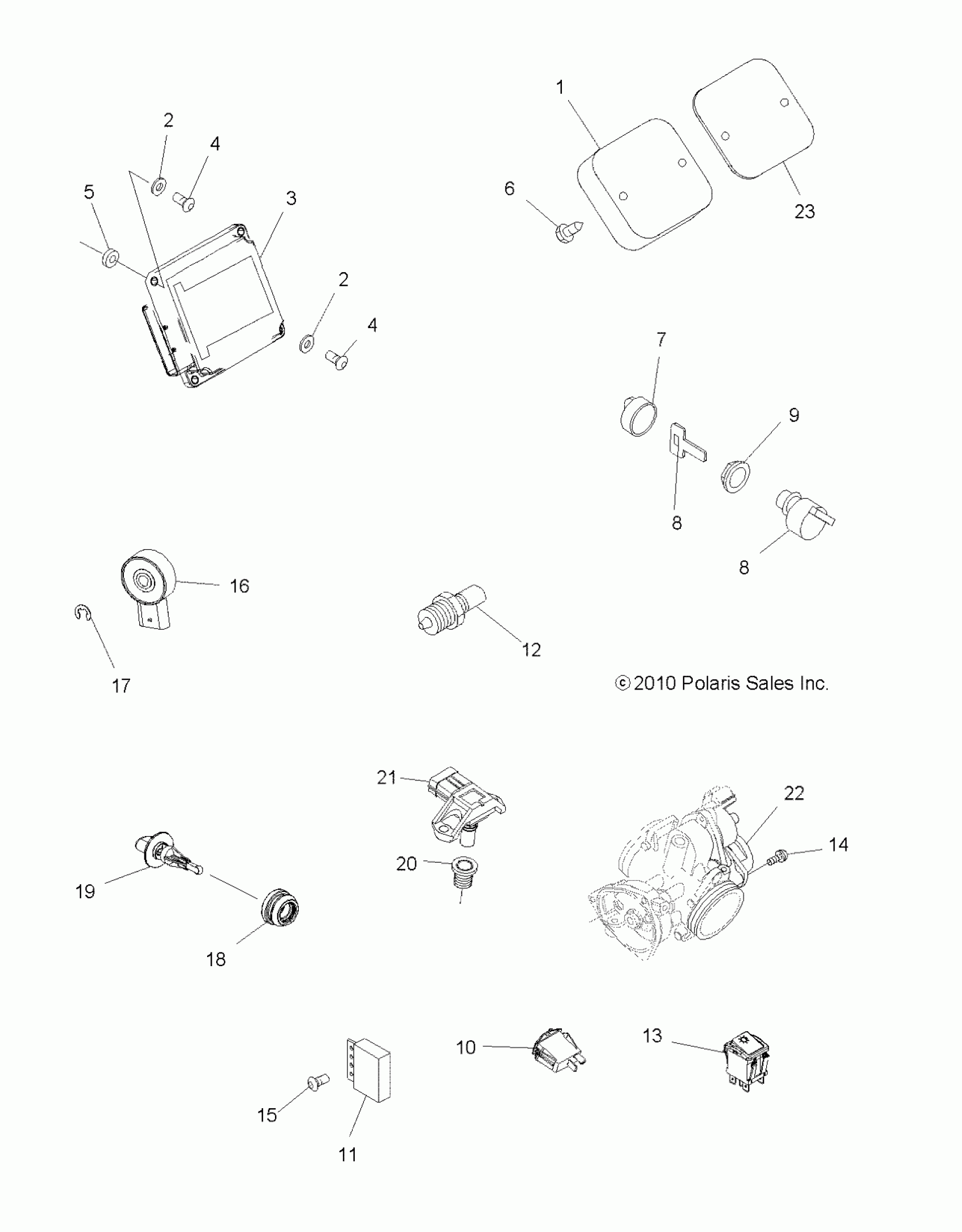

Polaris SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX ELECTRICAL, SWITCHES and SENSORS and ECM - A12MN50ET/EX (49ATVELECT11SP500TR) Diagram

Regulator, 3 PH

4012748

$251.74

WSHR-.194X.475X.049 ZTB

7555746

$0.79

WSHR-.194X.475X.049 ZTB

7555746

$0.79

ECU

4013476

Unavailable

Screw

7518552

$3.97

Screw

7518552

$3.97

Washer, Nylon

7555932

$2.38

Screw

7515179

$2.38

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. Key]

4012166

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

Switch, Worklight, On/Off

4011074

$49.99

Module, Flash/Turn

4012545

$175.99

Sensor, Water Temperature

3089892

$105.22

Switch, Master Lighting

4012487

$76.89

SCREW

3131628

$5.69

SCREW

7512024

$4.76

SWITCH, ROTARY

3233835

$142.49

RING, RETAINING

3233834

$10.32

Grommet, Air Temp Sensor

5436346

$4.76

Sensor, Air Temp

2410687

$153.79

Grommet

3089902

Unavailable

Sensor, Air Pressure

3089895

$199.49

SENSOR, THROTTLE POSITION

3140173

$232.74

COVER, VOLTAGE REGULATOR

5253294

$11.32
