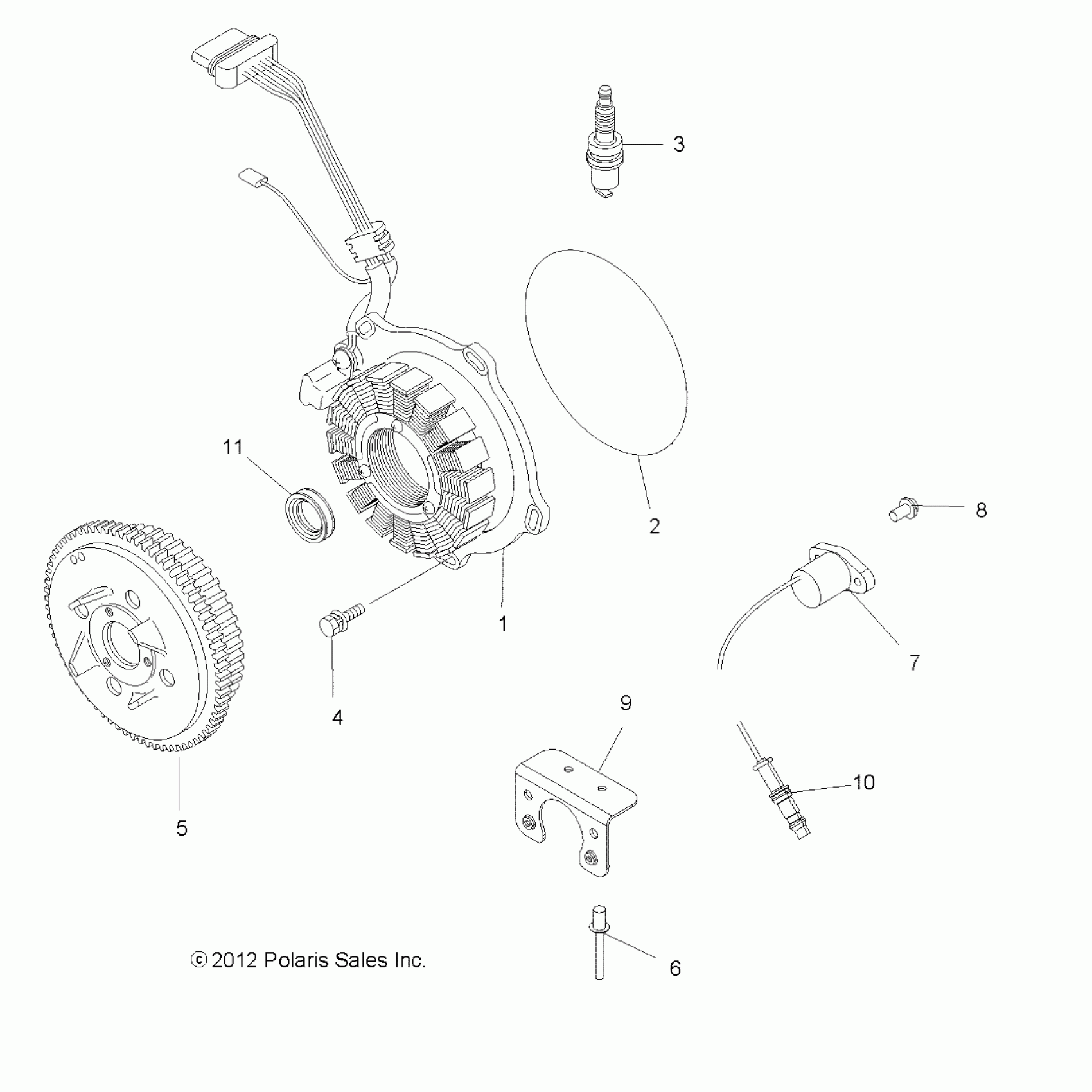

Polaris SPORTSMAN FOREST TRACTOR 500 - A12MN50ET/EX ELECTRICAL, IGNITION SYSTEM - A12MN50ET/EX (49ATVMAGNETO12SP500TR) Diagram

#

Description
Price

1

Asm., Plate [Incl. Stator, Plate, Trigger Coil, Seal]

3089959

$879.99

2

O-RING

3084978

$36.41

3

PLUG, SPARK, BKR6E

3070172

$3.97

4

BOLT, FLANGE

3083361

Unavailable

5

Flywheel w/Ring Gear

3089905

Unavailable

6

RIVET-3/16-.090-.290

7661637

$1.19

7

COIL, IGNITION

4011834

$134.99

8

Screw

7518196

$1.19

9

Bracket, Coil Mount

5249815

Unavailable

10

Wire, Spark Plug

4011691

$56.65

11

SEAL, OIL

3084973

$28.32
