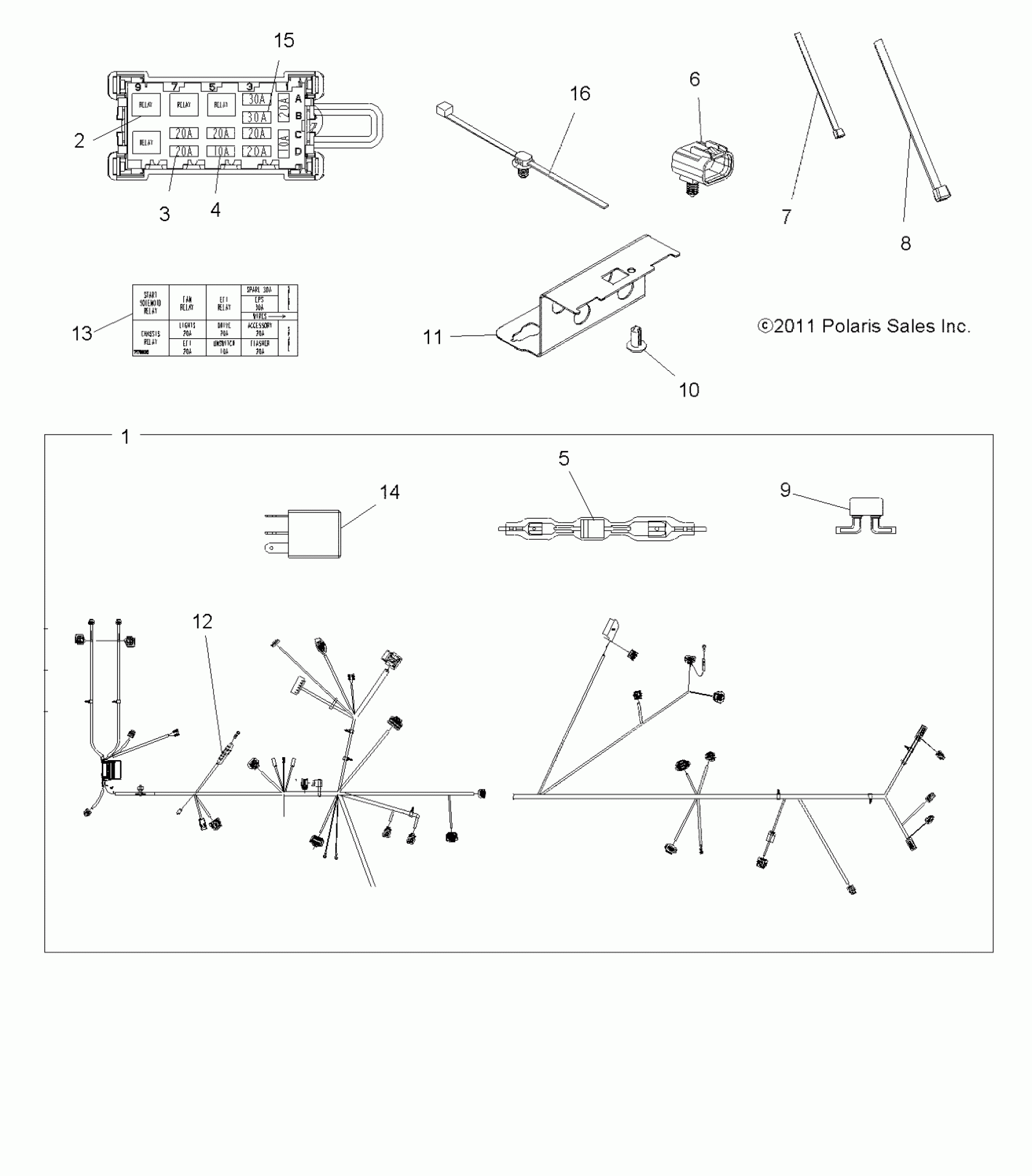

Polaris SPORTSMAN FOREST 850 - A12ZN8EFK/EFO ELECTRICAL, HARNESS - A12ZN8EFK/EFO (49ATVHARNESS12SP850F) Diagram

Kit, Harness, Resistor Module [For Gear Position]

2204890

$127.99

COVER-RELAY/FUSE CENTER

5438758

$11.32

KIT, HARNESS, TPS

2878498

$113.32

Harness, Main [Incl. 1-5,9,12-17, All Kits, Cover]

2411734

$704.99

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

CLIP, PUSH ON

7670125

$7.99

BRACKET, FUSE BLOCK

5253502

$6.39

Kit, Fusible Link, 1.0 mm

2202670

$35.99

Kit, Fusible Link, .8 MM

2202607

$39.99

Label, Fuse Box

7175636

Unavailable

Kit, EPS Relay, Repair [Incl. 4010725, Wire Harness, Repair, Connectors, Shrink Tubes, Instructions]

2204853

$75.99

FUSE-MAIN,30 AMP

2434015

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
