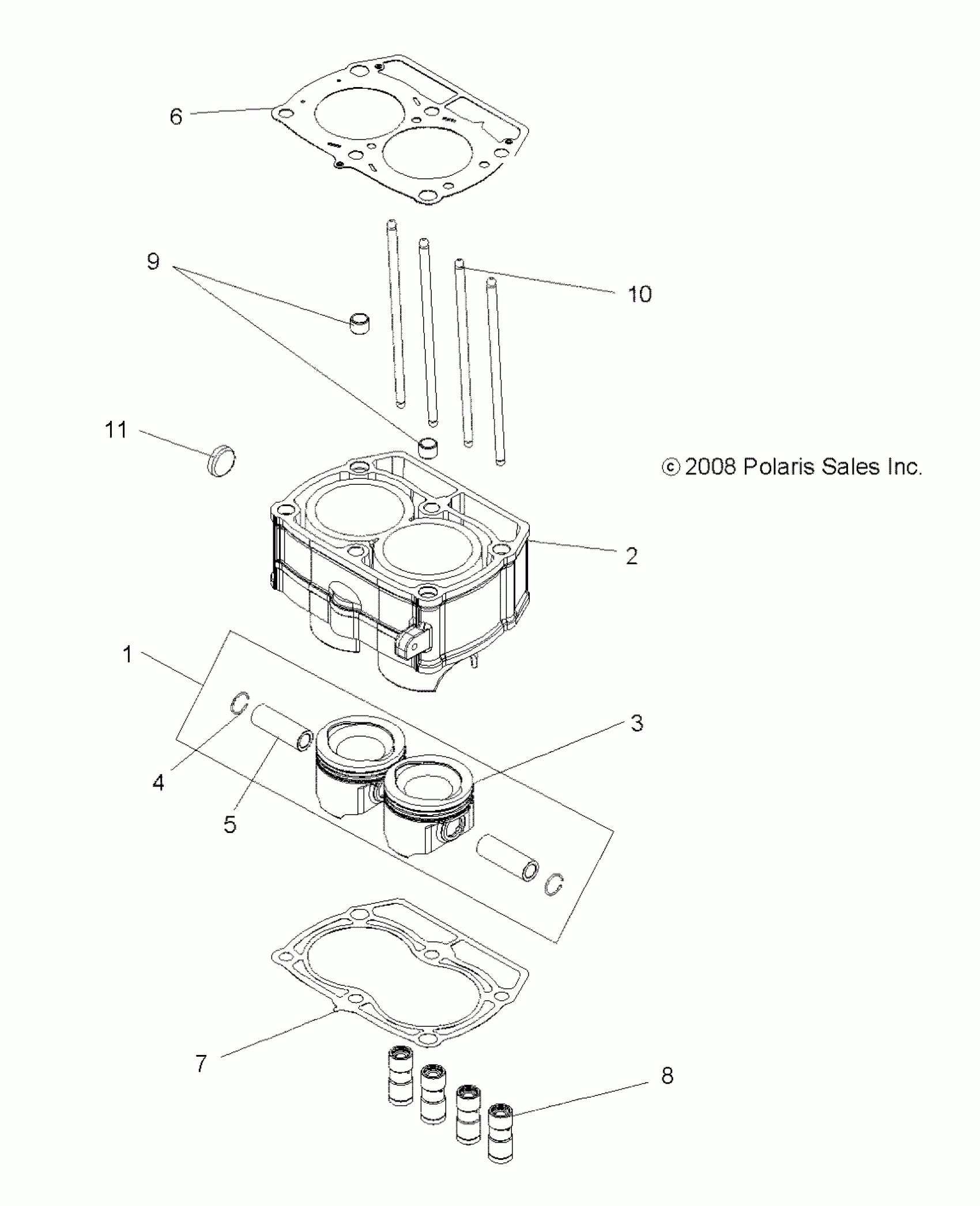

Polaris SPORTSMAN FOREST 800 6X6 - A12CF76FF ENGINE, PISTON and CYLINDER - A12CF76FF (49ATVPISTON096X6) Diagram

#

Description
Price

1

KIT, PISTON [INCL. 3-5]

2202917

$180.49

2

KIT, CYLINDER [INCL. CYLINDER,9,11]

2204393

Unavailable

3

KIT, PISTON RING [INCL. 1 TOP, MIDDLE, BOTTOM, RING]

2202920

$61.74

4

CIRCLIP, PISTON

3021510

$7.14

5

PIN, PISTON

----

Unavailable

6

GASKET, HEAD, SINGLE LAYER

5254357

$32.37

7

GASKET, BASE

5247360

$40.46

8

LIFTER, VALVE

5137206

$36.41

9

DOWEL

7661175

$5.65

10

PUSHROD

5132402

$52.60

11

PLUG

7051534

$5.65
