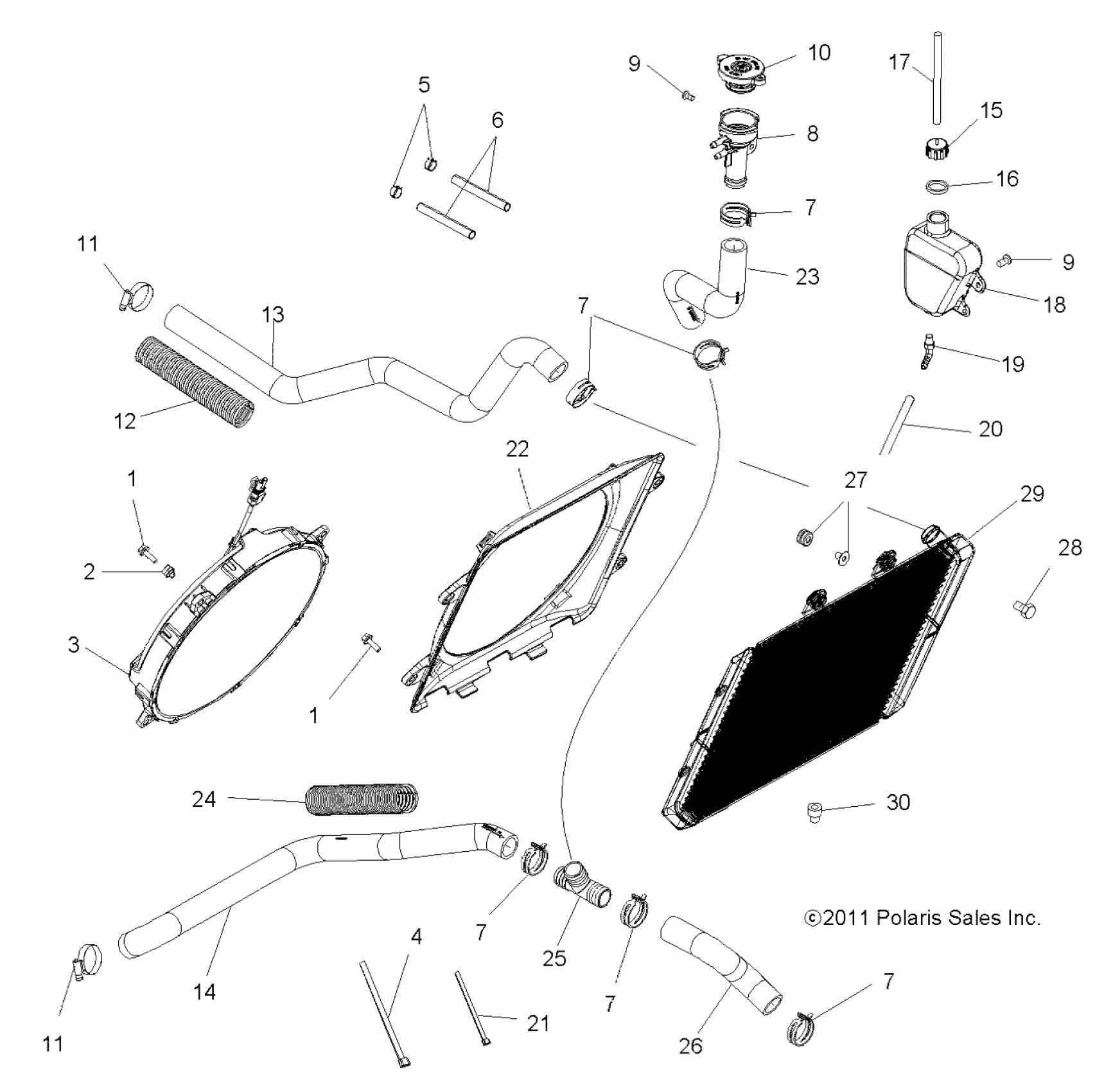

Polaris SPORTSMAN FOREST 800 6X6 - A12CF76FF ENGINE, COOLING SYSTEM - A12CF76FF (49ATVCOOL12SP6X6) Diagram

#

Description
Price

1

SCREW

7516822

$2.38

1

SCREW

7516822

$2.38

2

CLIP-"U",M6.0X1.0

7547366

$5.99

3

ASM., FAN

2410413

$267.13

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

5

HOSE CLAMP, RED

7080003

$1.19

6

HOSE

8450120-600

$72.84

7

Clamp, Springband

7080843

$3.97

7

Clamp, Springband

7080843

$3.97

7

Clamp, Springband

7080843

$3.97

7

Clamp, Springband

7080843

$3.97

7

Clamp, Springband

7080843

$3.97

8

FILLER, REMOTE, COOLANT

5438110

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Cap, Pressure

1240508

$48.56

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

12

CONDUIT, FLEX

5521794-17

$8.89

13

HOSE, RADIATOR, UPPER

5414223

$56.65

14

HOSE, ENGINE, LOWER

5414224

Unavailable

15

CAP, OVERFLOW W/FITTING

5437635

$4.84

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

LINE, FUEL

8360009-600

Unavailable

18

TANK-SURGE

5436936

$80.94

19

FITTING, 90 DEGREE

7052065

$7.14

20

Line, Fuel

8450003-1525

$89.99

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

SHROUD, FAN

5437845

Unavailable

23

HOSE, FILLER NECK

5414229

$36.41

24

CONDUIT, FLEX

5521794-17

$8.89

25

T-CONNECTOR

7052373

$10.32

26

HOSE, RADIATOR, LOWER

5414222

$32.37

27

ASM., GROMMET AND INSERT

5413155

$3.97

28

Screw

7515179

$2.38

29

ASM., RADIATOR [INCL. RADIATOR,27]

1240521

$461.41

30

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56
