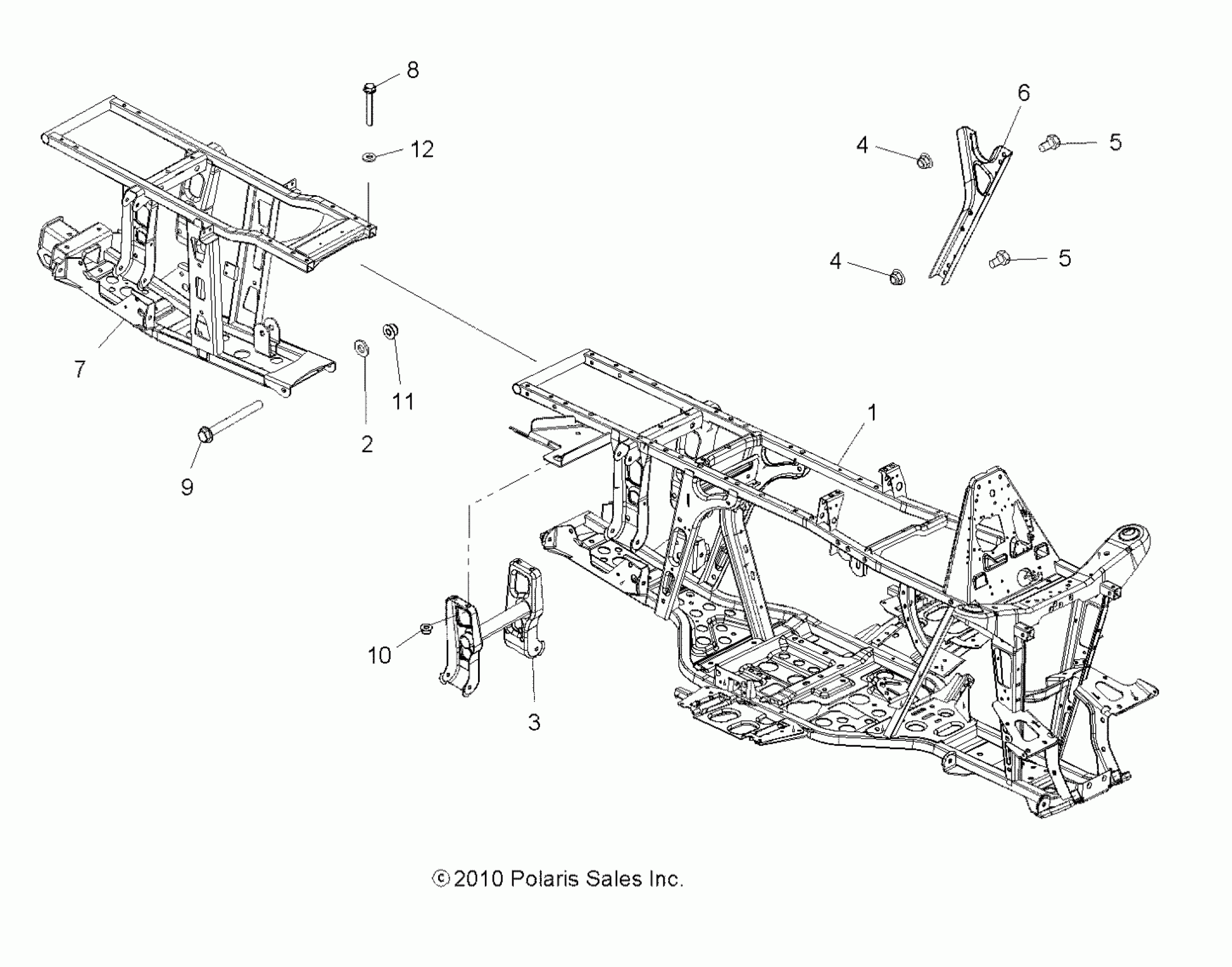

Polaris SPORTSMAN FOREST 800 6X6 - A12CF76FF CHASSIS, FRAME - A12CF76FF (49ATVFRAME116X6) Diagram

#

Description
Price

1

FRAME, MAIN, BLACK, 6X6

1017915-067

$2,124.99

2

WASHER

7556212

$8.73

3

SUPPORT, BLACK

1542636-067

$149.99

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

5

SCREW

7515398

$2.38

5

SCREW

7515398

$2.38

6

BRACE, SUPPORT, FRAME, FRONT, BLACK, LH

5253116-067

Unavailable

7

FRAME, REAR, 6X6

1016757-067

Unavailable

8

SCREW

7515385

$5.56

9

SCREW

7519039

$27.78

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT, NYLON

7547066

$1.59

12

Washer, Flat

7555734

$0.79
