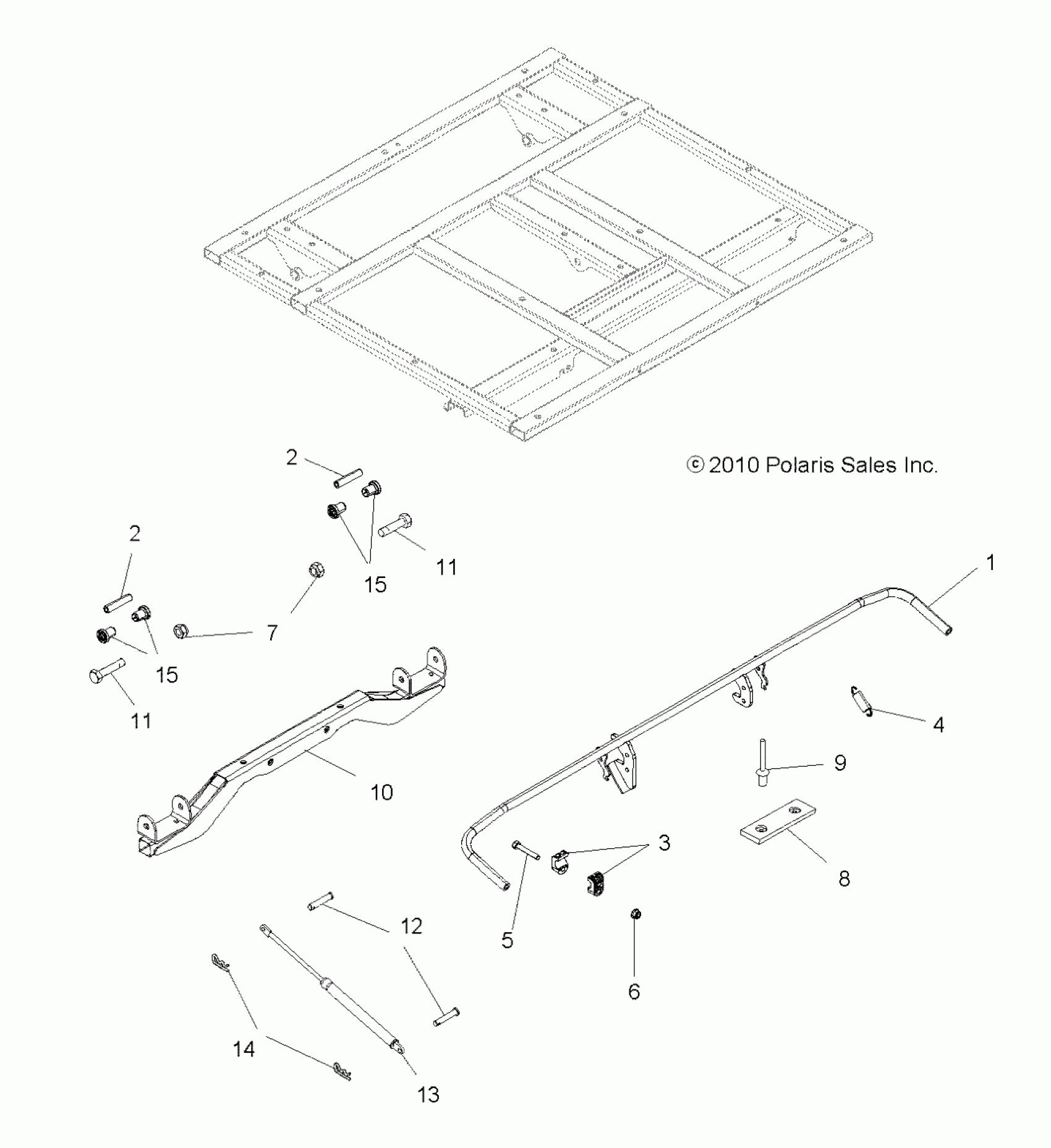

Polaris SPORTSMAN FOREST 800 6X6 - A12CF76FF BODY, DUMP BOX LEVER and SHOCK MOUNTING - A12CF76FF (49ATVBOXMTG116X6) Diagram

#

Description
Price

1

Latch, Box, Black

1016753-067

$169.43

2

SHAFT, A-ARM, SHORT

5020826

$12.13

2

SHAFT, A-ARM, SHORT

5020826

$12.13

3

BUSHING-BOX,LATCH

5434226

$3.97

4

SPRING-EXHAUST

7041687

$6.46

5

BOLT

7515319

$4.76

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

7

Nut, Nylok

7542439

$1.19

8

BUMPER, BOX BASE

5413690

$24.99

9

RIVET

7621418

$1.19

10

FRAME, PIVOT, BOX, BLACK

1016882-067

$123.99

11

Screw

7518263

$3.97

11

Screw

7518263

$3.97

12

PIN, CLEVIS

7661878

$2.38

13

SHOCK, DUMP BOX

7043232

$68.79

14

CLIP

7661067

$2.38

15

BUSHING, A-ARM, SHORT, BLACK

5438895

$2.38

15

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.70

15

BUSHING, A-ARM, SHORT, BLACK

5438895

$2.38

15

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.70
