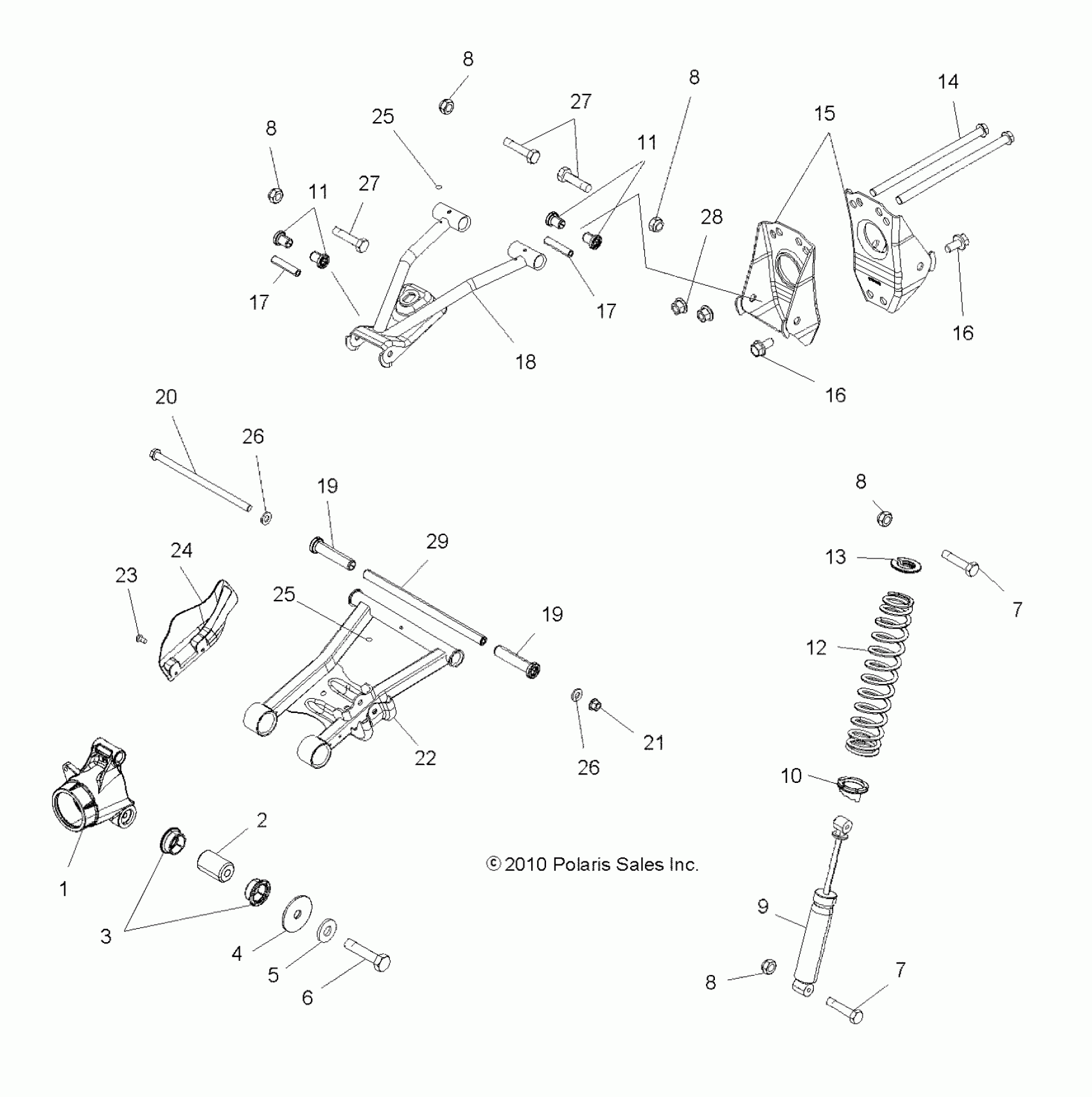

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY SUSPENSION, REAR - A12MH50FF/FX/FY (49ATVSUSPRR11SP5) Diagram

#

Description
Price

1

CARRIER, WHEEL BEARING

5135563

$71.99

2

BUSHING, BEARING CARRIER

5632291

$23.99

3

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

4

WASHER, FLAT

7555740

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

7

Screw

7515415

$1.49

7

Screw

7515415

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

SHOCK, REAR

7043100

$87.99

10

CAM-ADJUSTING,SPRING,STEEL

5253768

$31.99

11

BUSHING, A-ARM, SHORT, BLACK

5438895

$2.38

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

11

BUSHING, A-ARM, SHORT, BLACK

5438895

$2.38

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

12

SPRING, BLACK

7043697-067

$59.99

13

RETAINER-SPRING,STEEL

5251753

$10.39

14

SCREW

7518365

$7.91

15

BRACKET, CONTROL ARM, PIVOT, BLACK

5254267-329

Unavailable

16

SCREW

7517632

$5.59

16

SCREW

7517632

$5.59

17

SHAFT, A-ARM, SHORT

5020826

$11.99

17

SHAFT, A-ARM, SHORT

5020826

$11.99

18

ARM, CONTROL, UPPER, BLACK, LH

1017747-067

$95.99

18

ARM, CONTROL, UPPER, BLACK, RH

1017748-067

$95.99

19

BUSHING, A-ARM, LONG

5436973

$5.19

19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

19

BUSHING, A-ARM, LONG

5436973

$5.19

19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

20

SCREW

7519065

$19.99

21

Nut, Nylok

7542439

$1.49

22

CONTROL, LOWER, BLACK, LH

1015888-067

$119.99

22

CONTROL, LOWER, BLACK, RH

1015889-067

$119.99

23

Screw

7512084

$1.49

24

SHIELD, CV REAR, BLACK, LH

5435008-070

$23.99

24

SHIELD, CV REAR, BLACK, RH

5435009-070

$23.99

25

Fitting, Lubrication

7080433

$1.49

25

Fitting, Lubrication

7080433

$1.49

26

WASHER

7556153

$1.99

26

WASHER

7556153

$1.99

27

BOLT

7515472

$2.39

27

BOLT

7515472

$2.39

28

Nut, Flange

7547180

$2.39

29

TUBE, PIVOT

5137562

$27.99
