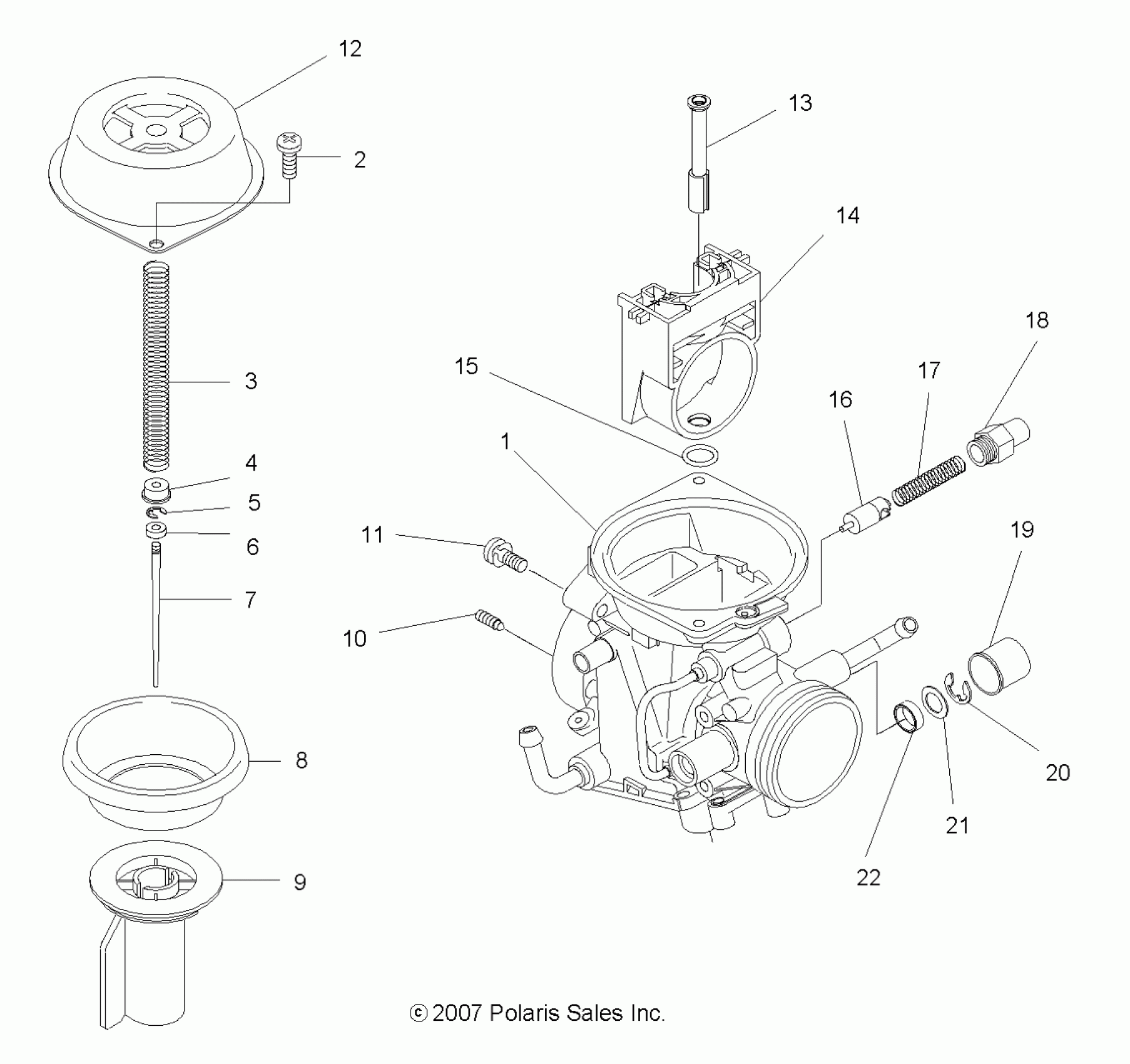

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ENGINE, CARBURETOR, UPPER - A12MH50FF/FX/FY (49ATVCARBUPPER08SP500) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL LESS 11]

3131742

$526.49

2

Screw

3130821

$7.19

3

SPRING

3130911

$10.39

4

RING

3130913

$5.59

5

E-RING

3130908

$6.39

6

RING

3130915

$5.59

7

NEEDLE, JET, J8-6MGH01-94

3131292

$39.99

8

DIAPHRAGM

3130910

$63.99

9

VALVE, PISTON

3130912

$59.99

10

JET, AIR

3130619

$7.27

11

ASM., SCREW AND WASHER

3085698

$2.39

12

COVER, DIAPHRAGM

3130914

$43.99

13

JET, NEEDLE

3131305

$43.99

14

BLOCK, JET

3130909

$39.59

15

O-RING

3130916

$4.79

16

ASM., PLUNGER

3131395

$35.99

17

SPRING

3130538

$4.79

18

HOLDER, GUIDE

3131396

$13.59

19

CAP

3130519

$10.39

20

E-RING

3130518

$1.59

21

PACKING

-------

Unavailable

22

SEAL

3130515

$11.99
