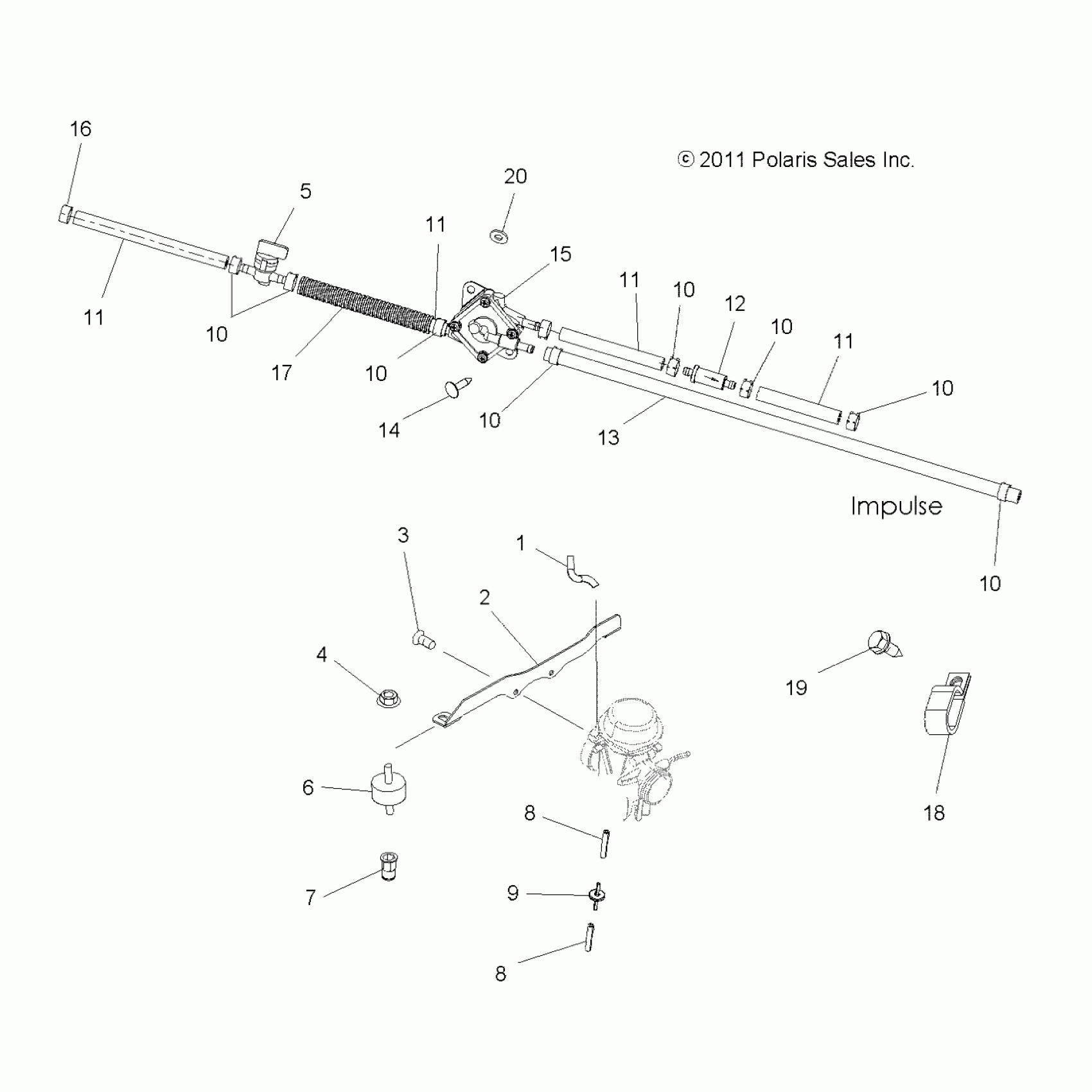

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ENGINE, CARBURETOR MOUNTING and FUEL LINES - A12MH50FF/FX/FY (49ATVCARBBRKT11500) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

STRAP, CARBURETOR

5254318

Unavailable

3

ASM., SCREW AND WASHER

3085698

$2.39

4

NUT, FLANGE, NYLOK

7542153

$1.59

5

VALVE, FUEL

7052248

$24.27

6

MOUNT, CARBURETOR

3110050

$12.99

7

INSERT

7542143

$5.59

8

LINE, FUEL

8360009-600

Unavailable

8

LINE, FUEL

8360009-600

Unavailable

9

VALVE, CHECK

7051011

Unavailable

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

HOSE, FUEL

8450117-250

Unavailable

11

HOSE, FUEL

8450117-250

Unavailable

11

HOSE, FUEL

8450117-250

Unavailable

11

HOSE, FUEL

8450117-250

Unavailable

12

FILTER, SMALL, IN-LINE

2530009

$5.65

13

Line, Fuel

8450040-600

Unavailable

14

CLIP-PLASTIC DART, NYLON

7670088

$1.59

15

ASM., FUEL PUMP

2521135

$75.99

16

HOSE CLAMP, RED

7080003

$1.49

17

TUBING, CONVOLUTED

8360052-305

Unavailable

18

CLAMP, DOUBLE TUBE

7081364

$1.49

19

SCREW

7517386

$1.49

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79
