- SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY
ENGINE, CARBURETOR, LOWER - A12MH50FF/FX/FY (4999200099920009D08)

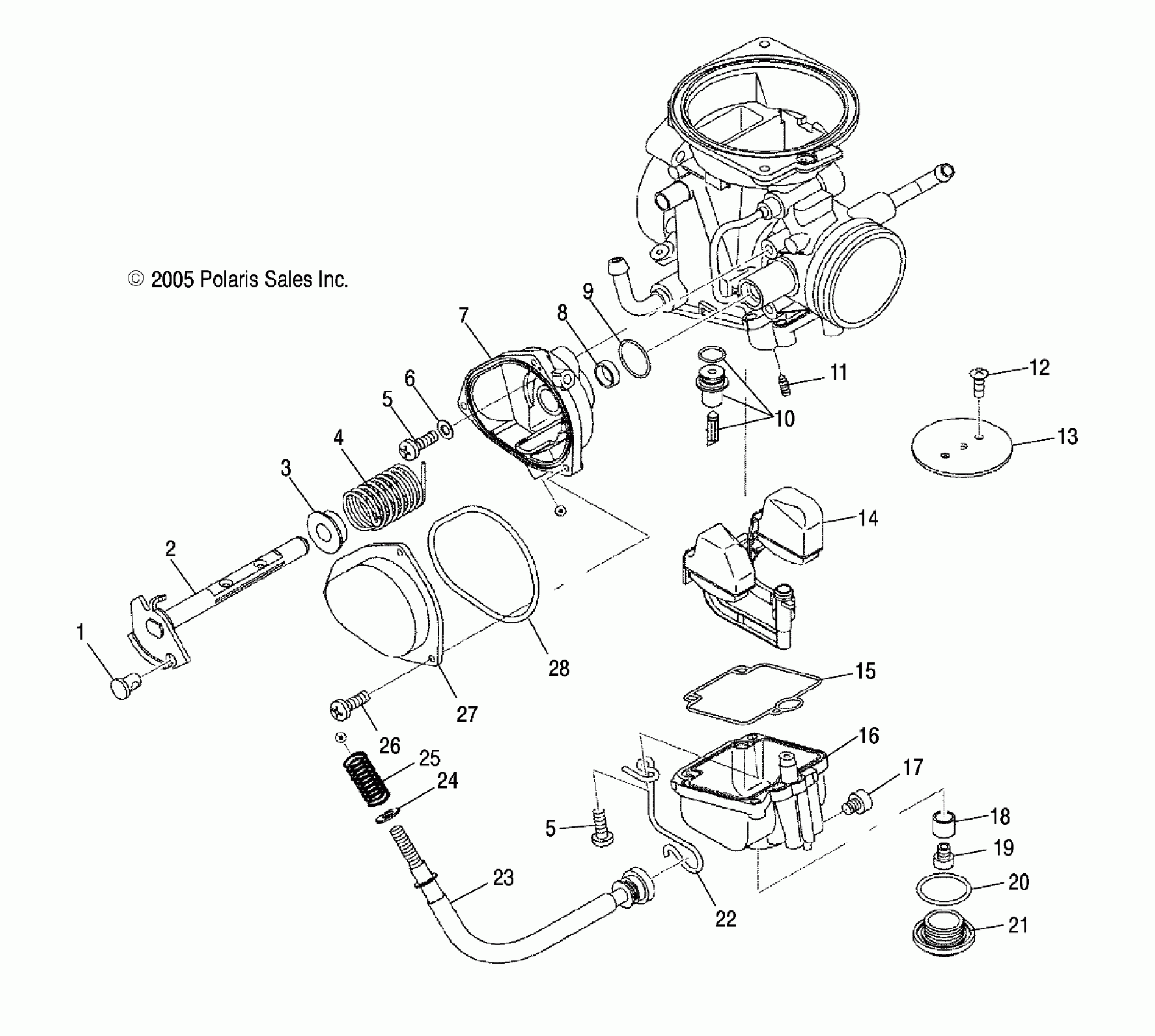

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ENGINE, CARBURETOR, LOWER - A12MH50FF/FX/FY (4999200099920009D08) Diagram
#
Description
Price
-
ASM., CARBURETOR
3131742
$526.49
1
GUIDE, CABLE
3130543
$27.99
2
ASM., SHAFT, THROTTLE
3130931
$63.99
3
RING
3131679
Unavailable
4
SPRING
3130927
$6.15
5
SCREW
3130933
$2.39
5
SCREW
3130933
$2.39
6
WASHER
3130926
$3.99
7
CASE
3130925
$51.99
8
SEAL
3130515
$11.99
9
O-RING
3130928
$6.39
10
VALVE, NEEDLE, 1.5
3131359
$67.99
11
JET, PILOT, #40
3130624
$23.99
12
SCREW
3131475
$3.99
13
VALVE, THROTTLE, 120
3130907
$43.99
14
ASM., FLOAT
3130921
$63.99
15
SEAL
3130917
$7.19
16
ASM., BODY, FLOAT
3130923
$63.99
17
SCREW
3130935
$5.59
18
RING
3130919
Unavailable
19
JET, MAIN, #155
3130571
$7.71
20
O-RING
3130239
Unavailable
21
BOLT, BANJO
3130321
$23.99
22
CLIP
3131242
$30.79
23
ASM., ADJUSTER, CABLE
3131295
Unavailable
24
WASHER
3131296
$9.59
25
SPRING, THROTTLE ADJUSTER
3130010
$8.89
26
SCREW
3130924
$1.59
27
COVER
3130930
$31.99
28
O-RING
3130929
$13.19
