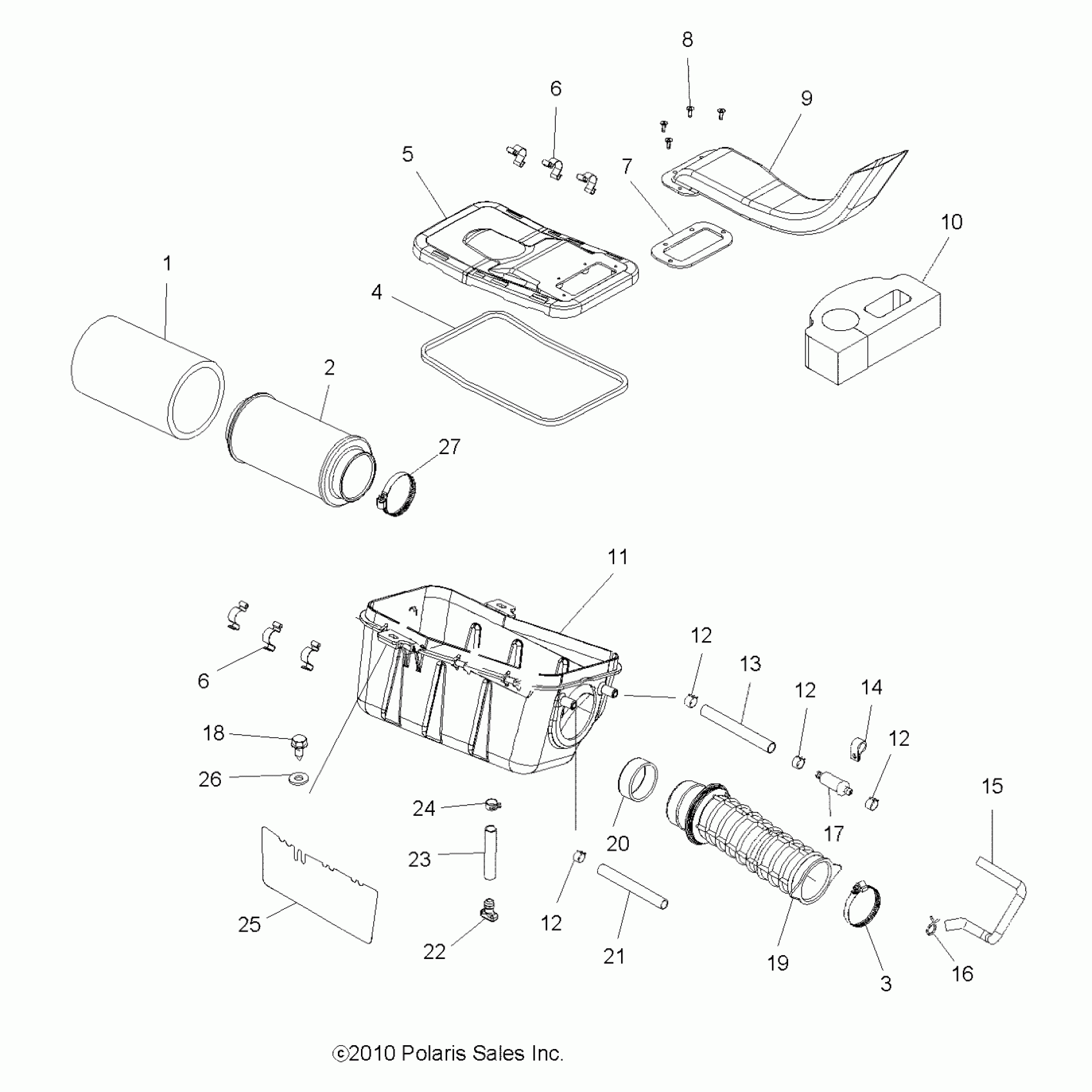

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ENGINE, AIR INTAKE SYSTEM - A12MH50FF/FX/FY (49ATVAIRBOX12SP500) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Seal, Cover

5812829

$27.02

5

Cover, Air Box

5432868

$51.99

6

CLIP-AIR BOX

5242044

$9.59

6

CLIP-AIR BOX

5242044

$9.59

7

Gasket, Intake

5411422

$6.63

8

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

9

Duct, Air Inlet

5436937

$69.99

10

Seal, Foam

5811626

$31.99

11

BOX, AIR

5438552

$135.99

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

13

Line, Breather

8450073-600

Unavailable

14

P-Clamp

7080913

$5.59

15

Hose, Breather

5413104

Unavailable

16

Clamp, Hose, Spring

7080694

$6.53

17

Filter, Breather

2530029

$6.39

18

Screw

7515179

$2.39

19

Boot, Carburetor

5412562

$47.99

20

Sleeve, Carburetor, Inner

5433847

$13.59

21

Line, Breather

5413003

Unavailable

22

Plug, Trap

5435299

$6.39

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

FOIL

5813652

$27.99

26

Washer, Flat

7555859

$1.49

27

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19
