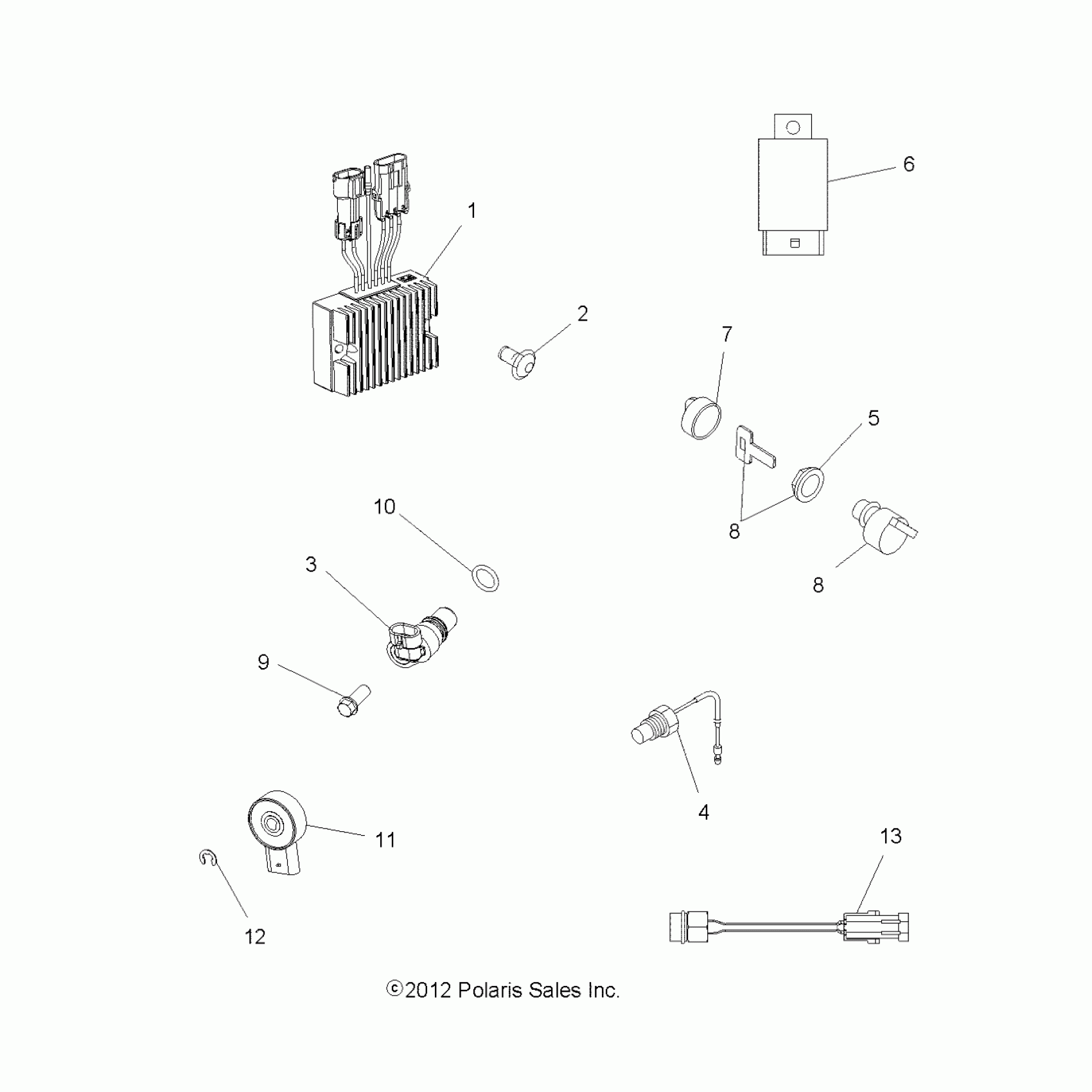

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ELECTRICAL, SWITCHES, SENSORS and ECM - A12MH50FF/FX/FY (49ATVELECT12SP500F) Diagram

RECTIFIER/REGULATOR

4012192

$265.99

Screw

7512084

$1.19

SENSOR, SPEED

4012167

$109.27

SENSOR, THERMO [ENGINE THERMAL]

3085352

$129.51

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

MODULE, FLASHER, LED

4013043

$153.79

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. 5,7, and Key]

4012166

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SWITCH-KEY,4 POS,ATV,MT SLV [Incl. 5,7, and Key]

4012166

$109.27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SCREW

3234247

$5.56

O-RING

3234302

$7.27

SWITCH [GEAR POSITION]

3233835

$142.49

RING, RETAINING

3233834

$10.32

SENSOR, THERMAL HARNESS [RADIATOR]

4010808

$109.24
