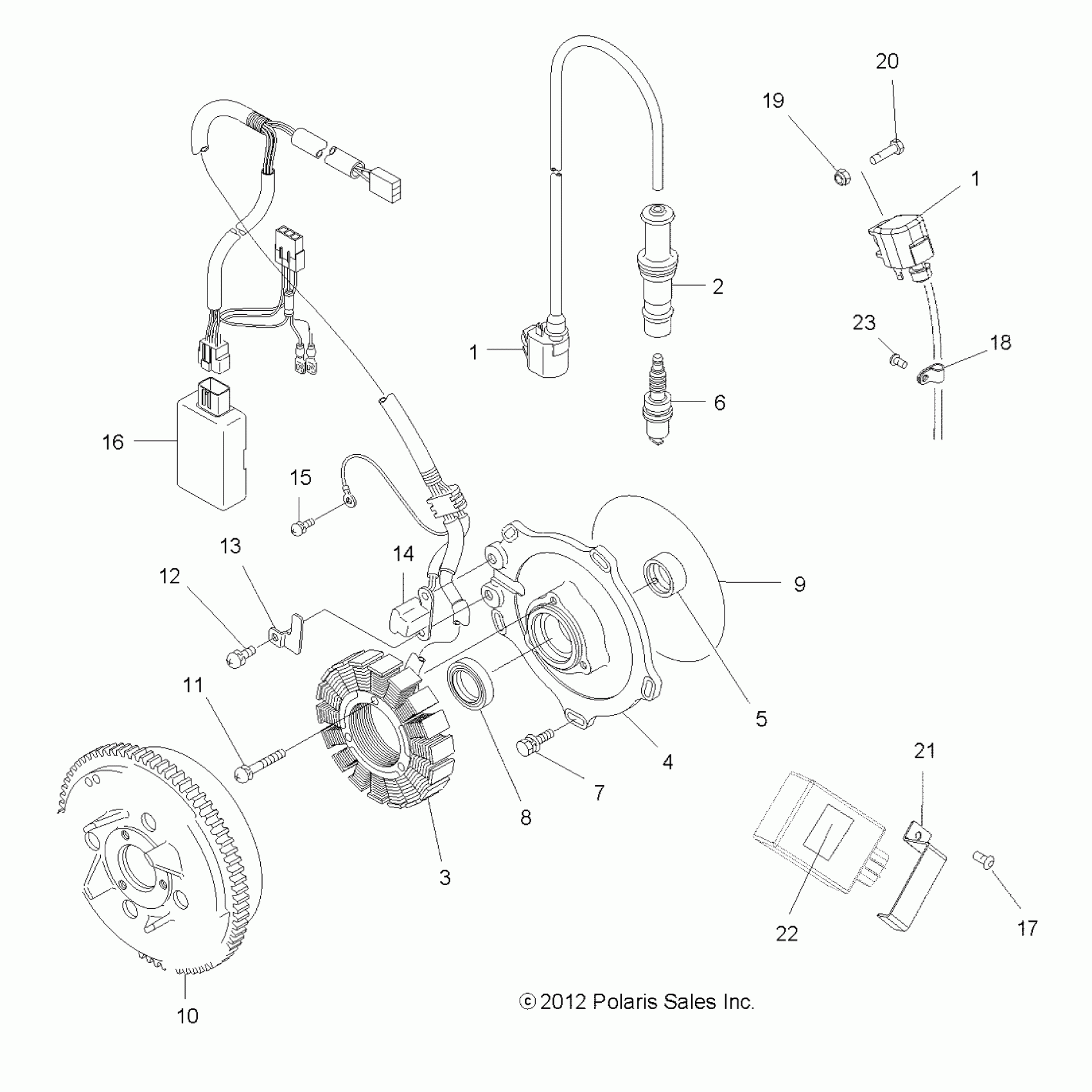

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY ELECTRICAL, IGNITION SYSTEM - A12MH50FF/FX/FY (49ATVMAGNETO12SP500) Diagram

#

Description
Price

1

ASM., COIL, IGNITION [INCL. 2]

3089239

$195.99

1

ASM., COIL, IGNITION [INCL. 2]

3089239

$195.99

2

CAP, SPARK PLUG

3084980

$59.99

3

STATOR [INCL. 14]

3089546

Unavailable

4

PLATE

3089248

Unavailable

4

ASM., PLATE [INCL. 3, 5,7,8,11,12,13,14]

3090061

Unavailable

5

BEARING, METAL

3084972

Unavailable

6

PLUG, SPARK, BKR6E

3070172

$3.99

7

BOLT, FLANGE

3083361

Unavailable

8

SEAL, OIL

3084973

$27.99

9

O-RING

3084978

$35.99

10

FLYWHEEL W/RING GEAR

3090239

Unavailable

11

ASM., SCREW AND WASHER

3089547

$3.19

12

ASM., SCREW AND WASHER

3084976

Unavailable

13

BAND, PULSE

3089250

Unavailable

14

COIL, PULSER

3089254

$103.99

15

ASM., SCREW AND WASHER

3081256

$3.19

16

CDI SYSTEM

3090270

Unavailable

17

SCREW

7512024

$4.79

18

CLAMP, CABLE

7080960

$4.79

19

Nut, Nylok

7541925

$1.49

20

BOLT

7512007

$3.99

21

BRACKET, CDI

5246747

$7.99

22

Pad

5810317

Unavailable

23

Fastener, Push

7710561

$2.39
