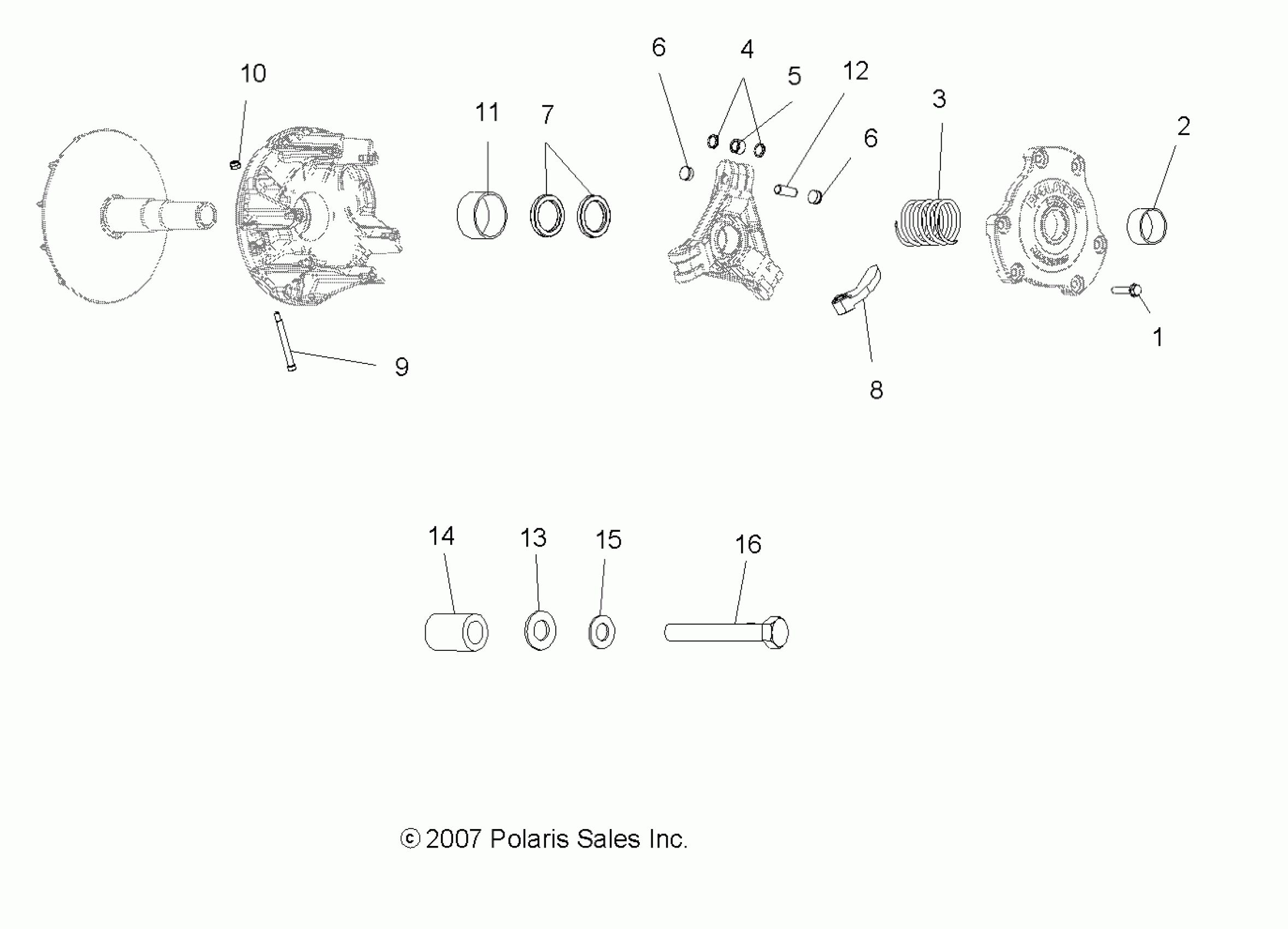

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY DRIVE TRAIN, PRIMARY CLUTCH - A12MH50FF/FX/FY (49ATVCLUTCH08SP500) Diagram

#

Description
Price

-

ASM., DRIVE CLUTCH [INCL. 1,2,4-7,9-12]

1322682

$561.59

1

SCREW

7518062

$4.79

2

Bearing, Cover

3576510

$9.59

3

SPRING, CLUTCH

7041157

$47.99

4

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

5

ASM-ROLLER AND BUSHING

1321457

$40.46

6

BUTTON, CLUTCH

5431936

Unavailable

6

BUTTON, CLUTCH

5431936

Unavailable

7

SPACER, .050

5210754

Unavailable

7

SPACER, .025

5242981

Unavailable

7

SPACER, .020

5210752

Unavailable

7

SPACER, .032

5210753

Unavailable

8

WEIGHT, SHIFT, 10-WHF

5632283

$41.79

9

BOLT, SHOULDER

7512266

$3.19

10

NUT, FLEXLOC

7541906

$3.19

11

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

12

PIN-ROLLER

5020422

$2.39

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

14

BUSHING-.437 X.770 X.50

5430261

$7.19

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

16

BOLT

7512566

$30.79
