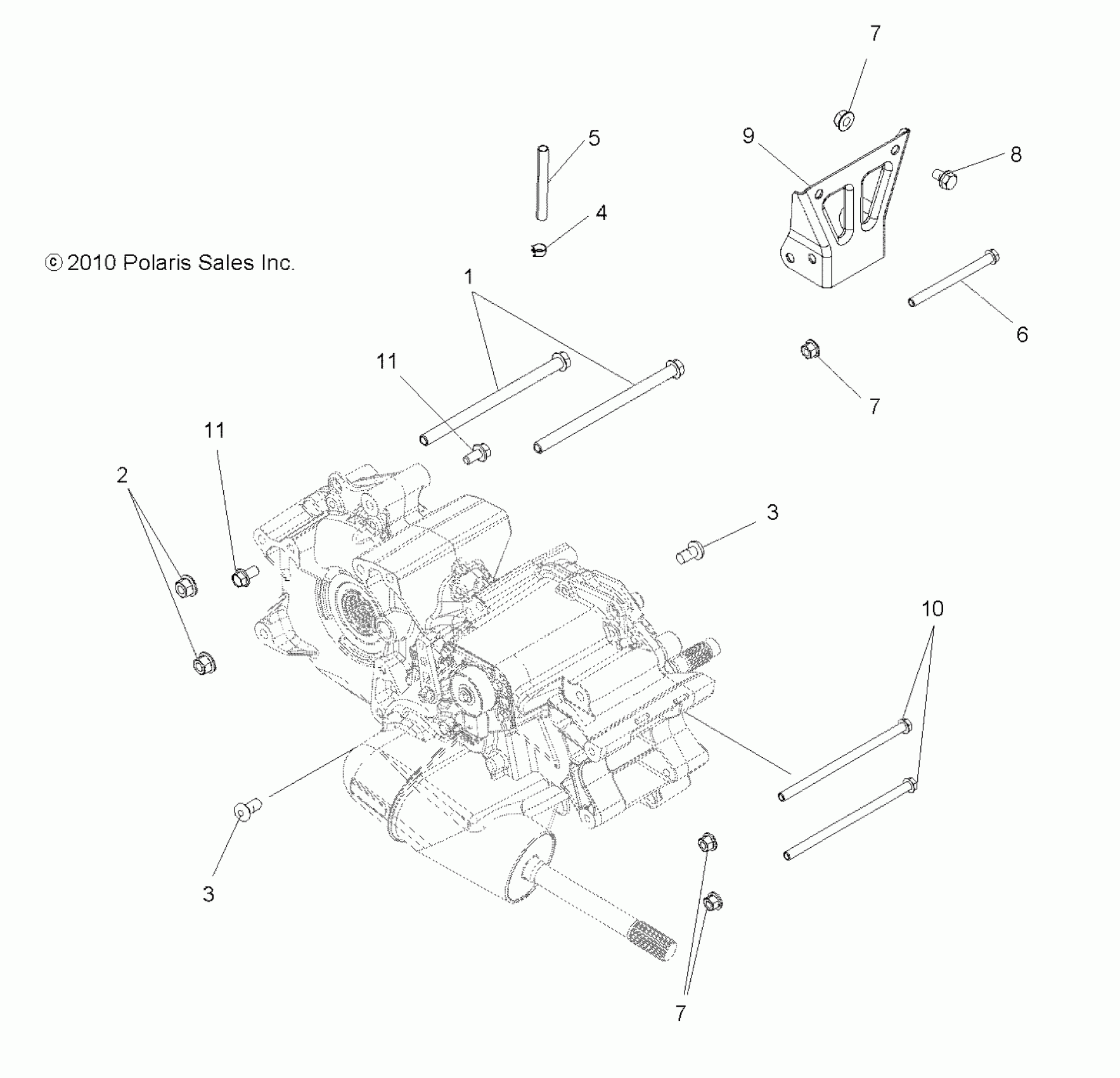

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY DRIVE TRAIN, MAIN GEARCASE MOUNTING - A12MH50FF/FX/FY (49ATVGEARCASEMTG11SP500) Diagram

#

Description
Price

1

BOLT

7518365

$7.91

2

Nut, Flange

7547180

$2.39

3

Screw

7518927

$5.59

3

Screw

7518927

$5.59

4

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

Line, Fuel

8450003-1525

Unavailable

6

BOLT

7515382

$2.39

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

SCREW

7515398

$2.39

9

SUPPORT, TRANSMISSION, UPPER, BLACK

5254309-329

$43.99

10

SCREW

7518648

$7.19

11

SCREW

7517632

$5.59

11

SCREW

7517632

$5.59
