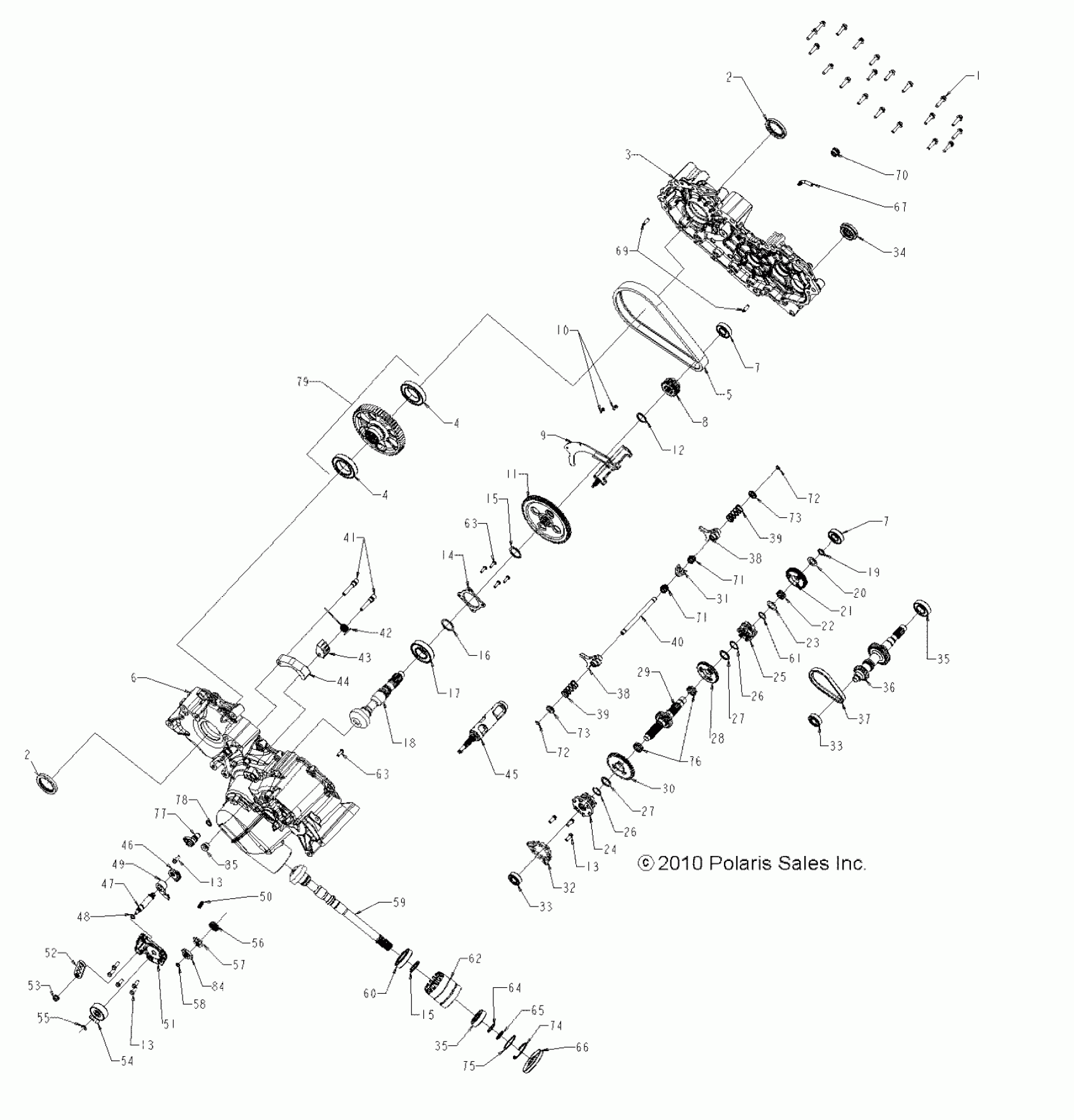

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY DRIVE TRAIN, MAIN GEARCASE - A12MH50FF/FX/FY (49ATVGEARCASE1332897) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1332897

Unavailable

1

SCREW

3234114

$7.14

2

SEAL, TRIPLE LIP

3233878

$32.37

2

SEAL, TRIPLE LIP

3233878

$32.37

3

GEARCASE. COVER, LH, MACH

3235264

$399.99

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

4

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

5

CHAIN

3234057

$279.27

6

GEARCASE, MAIN, RH, MACH

3235265

$729.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

8

SPROCKET, 19T

3234060

$242.84

9

DEFLECTOR, OIL

3234061

$28.32

10

SCREW, TAPPING W/PLAIN WASHER

3233749

$5.65

11

GEAR OUTPUT, 91T

3234062

$267.13

12

RING, RETAINING

3233699

$7.27

13

SCREW, TAPPING

3234247

$5.56

13

SCREW, TAPPING

3234247

$5.56

13

SCREW, TAPPING

3234247

$5.56

14

COVER, CENTER DRIVE BEARING

3234063

$32.37

15

RING, RETAINING

3233364

$6.46

15

RING, RETAINING

3233364

$6.46

16

SHIM

3234271

$24.27

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

18

PINION, CENTER DRIVE, 13T

3234263

$532.52

19

RING, RETAINING

3234067

$7.94

20

WASHER, THRUST

3233176

$9.52

21

GEAR, SPUR

3234352

$105.22

22

BEARING, NEEDLE

3233009

$39.68

23

WASHER

3233855

$10.32

24

DOG, L/P

3234257

$153.79

25

DOG, ENGAGEMENT, 6 FACE

3234258

$97.13

26

RING, RETAINING

3233306

$4.76

26

RING, RETAINING

3233306

$4.76

27

WASHER, THRUST

3234248

$9.52

27

WASHER, THRUST

3234248

$9.52

28

SPROCKET, 38T, 6 FACE

3234290

$153.79

29

SHAFT, REVERSE, 26T

3234280

$263.08

30

GEAR, 33T, 6 FACE

3234291

$174.03

31

COLLAR-SHIFT

3234073

$31.75

32

Plate, Park, 12 Face

3233915

$40.46

33

BEARING, BALL

3234274

$27.78

33

BEARING, BALL

3234274

$27.78

34

SEAL

3234851

$42.74

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

36

SHAFT, INPUT

3234348

Unavailable

37

CHAIN

3234264

$118.74

38

FORK, SHIFT

3234077

$182.13

38

FORK, SHIFT

3234077

$182.13

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

RAIL, SHIFT SHAFT

3234079

$28.32

41

PIN, DOWEL

3233432

$7.14

42

SPRING, TORSION

3233431

$24.27

43

CAM, CHAIN TENSIONER

3233434

$13.75

44

SHOE, CHAIN TENSIONER

3233433

$32.37

45

DRUM, SHIFT

3234360

$182.13

46

GEAR-SECTOR,31T

3233832

$36.41

47

SHAFT, SHIFT

3233831

$60.70

48

O-RING

3233869

$5.65

49

Pawl, Detent

3233829

$36.41

50

SPRING, COMPRESSION

3234578

$13.75

51

COVER, SECTOR GEAR W/PINS

3234188

$113.32

52

BELLCRANK

3234584

$28.32

53

NUT, LOCK

3233961

$3.32

54

SWITCH, ROTARY, 6 PIN

3233835

$142.49

55

RING, RETAINING

3233834

$10.32

56

GEAR, SECTOR, 16T

3233839

$36.41

57

Star, Detent

3233909

$28.32

58

O-RING

3233076

$6.46

59

SHAFT, 13T

3234262

$409.99

60

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

61

RING, RETAINING

3234336

$5.56

62

TUBE, SNORKEL

3234278

$101.17

63

SCREW

3234086

$5.56

63

SCREW

3234086

$5.56

64

SHIM

3234272

$36.41

65

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

66

SEAL, TRIPLE LIP

3234113

$36.41

67

TUBE, VENT

3234230

$10.51

69

PIN, DOWEL

3234244

$7.27

70

PLUG

3233194

$15.37

71

SPRING, COMPRESSION

3234089

$28.32

71

SPRING, COMPRESSION

3234089

$28.32

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

72

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

73

WASHER-CUP

3234091

$9.52

73

WASHER-CUP

3234091

$9.52

74

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

75

SHIM

3234273

$13.75

76

BEARING, NEEDLE

3233103

$31.75

77

SENSOR, SPEED

4012167

$109.27

78

O-RING

3234302

$7.27

79

SUBASM., SHAFT, 59T

3234421

$999.99

84

DISC, LOCKOUT

3234081

$9.52

85

PLUG, MAGNETIC

3234529

$15.37
