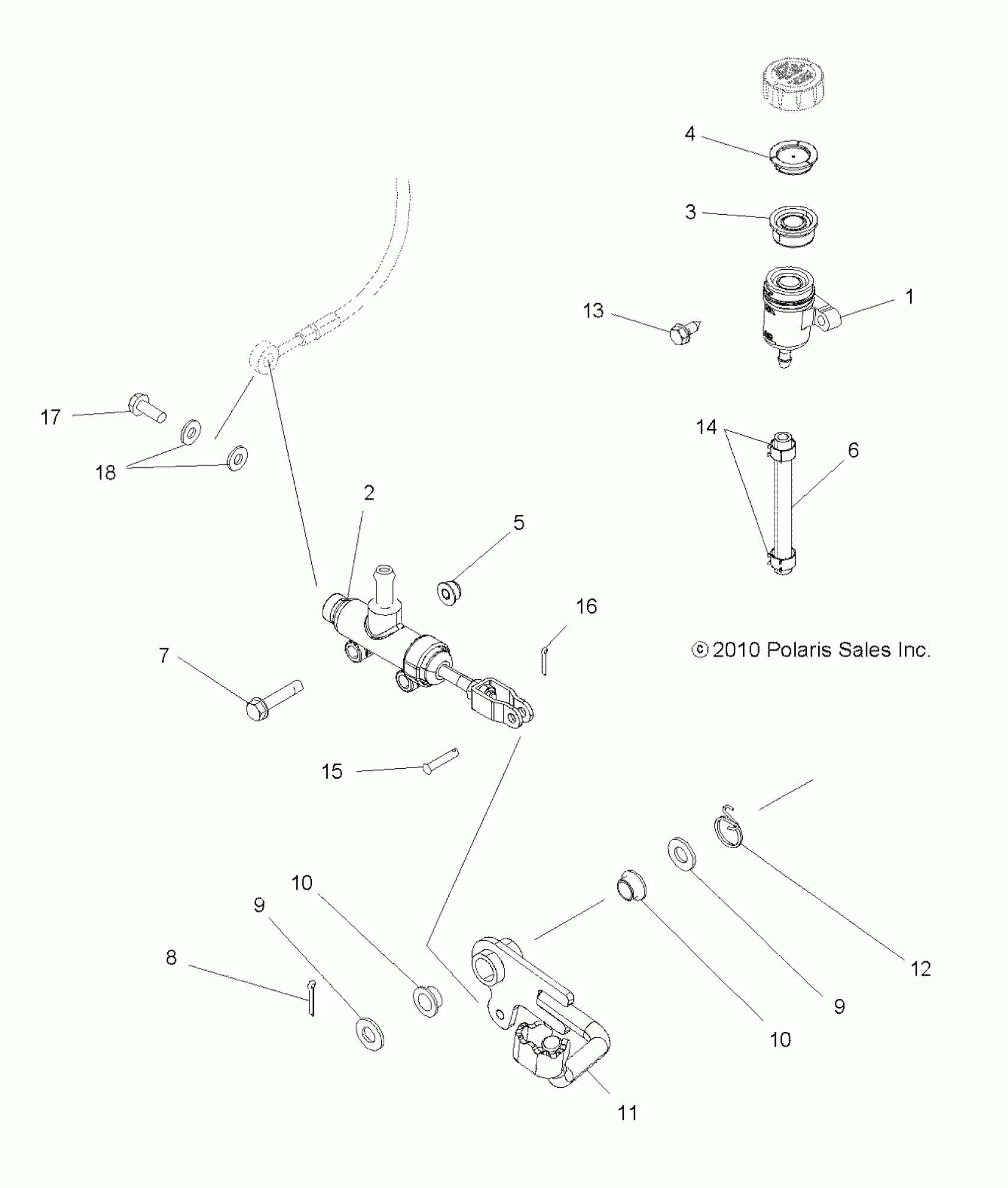

Polaris SPORTSMAN FOREST 5OO - A12MH50FF/FX/FY BRAKES, BRAKE PEDAL and MASTER CYLINDER - A12MH50FF/FX/FY (49ATVBRAKEFOOT11SP500F) Diagram

#

Description
Price

1

ASM., RESERVOIR, BRAKE, REAR [INCL. CAP, 3,4]

1911224

$35.99

2

Asm., Master Cylinder, Brake, Foot

1911551

$107.99

3

DIAPHRAGM, RESERVOIR, BRAKE

5413262

$4.79

4

RING, RESERVOIR, BRAKE

5437041

$5.59

5

NUT, FLANGE, NYLOK

7542153

$1.59

5

NUT, FLANGE, NYLOK

7542153

$1.59

7

BOLT

7512126

$4.79

8

PIN, COTTER

7661401

$1.49

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

11

PEDAL, BRAKE, BLACK

1911657-067

$83.99

12

SPRING-TORSION,BRAKE

7041750

$8.79

13

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

PIN, CLEVIS

7661830

$3.99

15

PIN, CLEVIS

7661830

$3.99

16

PIN, COTTER

7661900

$3.19

17

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99
