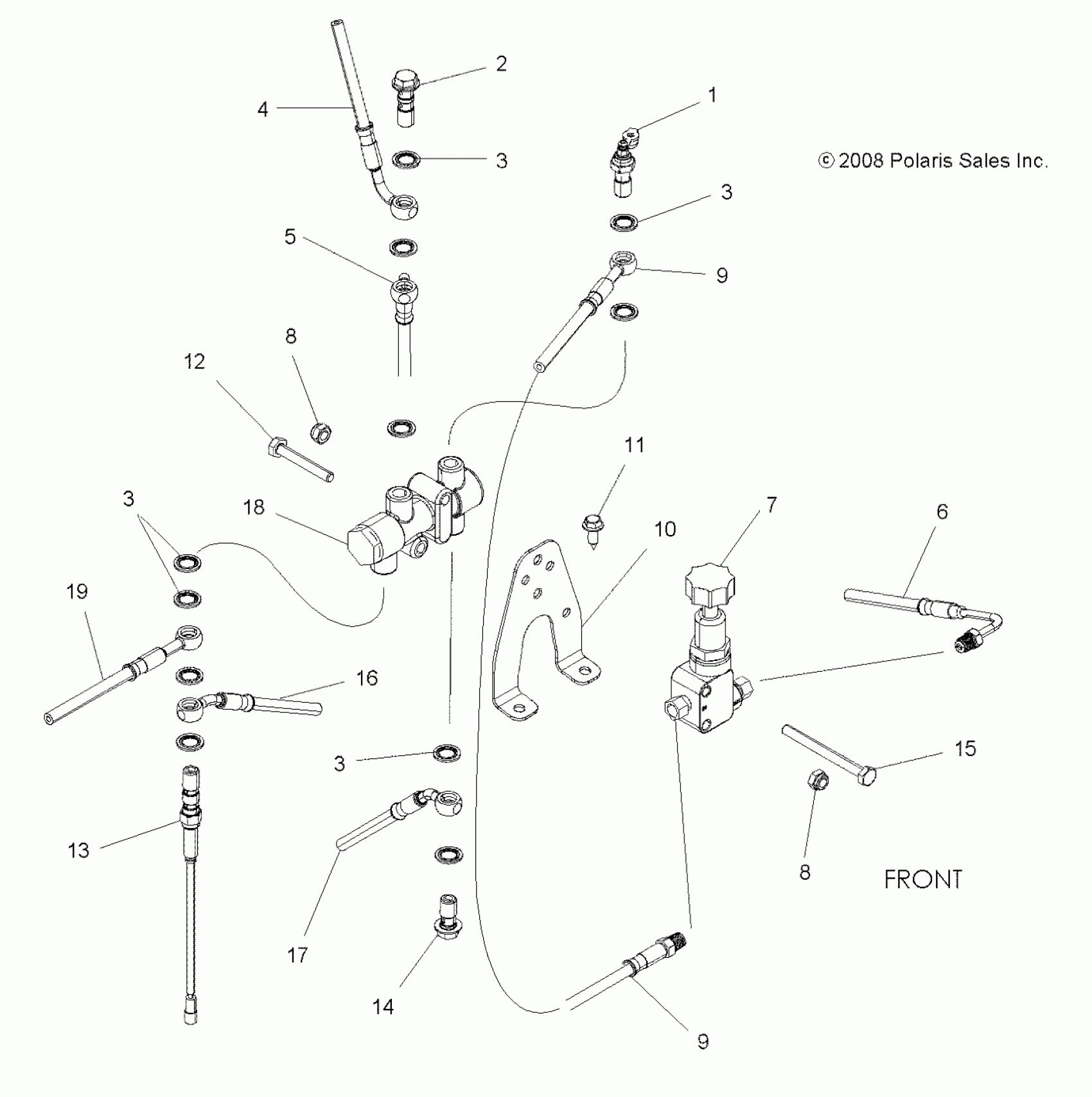

Polaris SPORTSMAN FOREST 550 - A12ZN5EFF BRAKES, VALVE SYSTEM - A12ZN5EFF (49ATVBRAKEVALVE09SPXP850I) Diagram

#

Description
Price

1

Bolt, Banjo w/Bleeder

1911112

$23.99

2

Bolt, Banjo, Double

1911194

$23.99

3

SEAL

5413212

$4.79

3

SEAL

5413212

$4.79

3

SEAL

5413212

$4.79

3

SEAL

5413212

$4.79

4

Line, Hand to Dist.

1911452

$75.99

5

Line, Brake, Rear, Aux.

1911659

$159.99

6

Line, Brake, Rear, Service

1911660

$167.99

7

Valve, Reducing

1911109

$147.99

8

Nut, Nylok

7542122

$1.49

8

Nut, Nylok

7542122

$1.49

9

Line, J/B to P/Valve

1911200

$43.99

9

Line, J/B to P/Valve

1911200

$43.99

10

BRACKET, JUNCTION BLOCK

5252667

$39.99

11

BOLT

7518513

$4.79

12

SCREW

7512130

$3.99

13

Switch, Double Banjo

4012484

$91.99

14

BOLT, BANJO

1910499

$5.59

15

Screw

7517451

$5.59

16

Line, Front, Left

1911454

$63.99

17

Line, Foot to Dist.

1911453

$79.99

18

Block, Distribution

1911185

Unavailable

19

Line, Front, Right

1911455

$63.99
