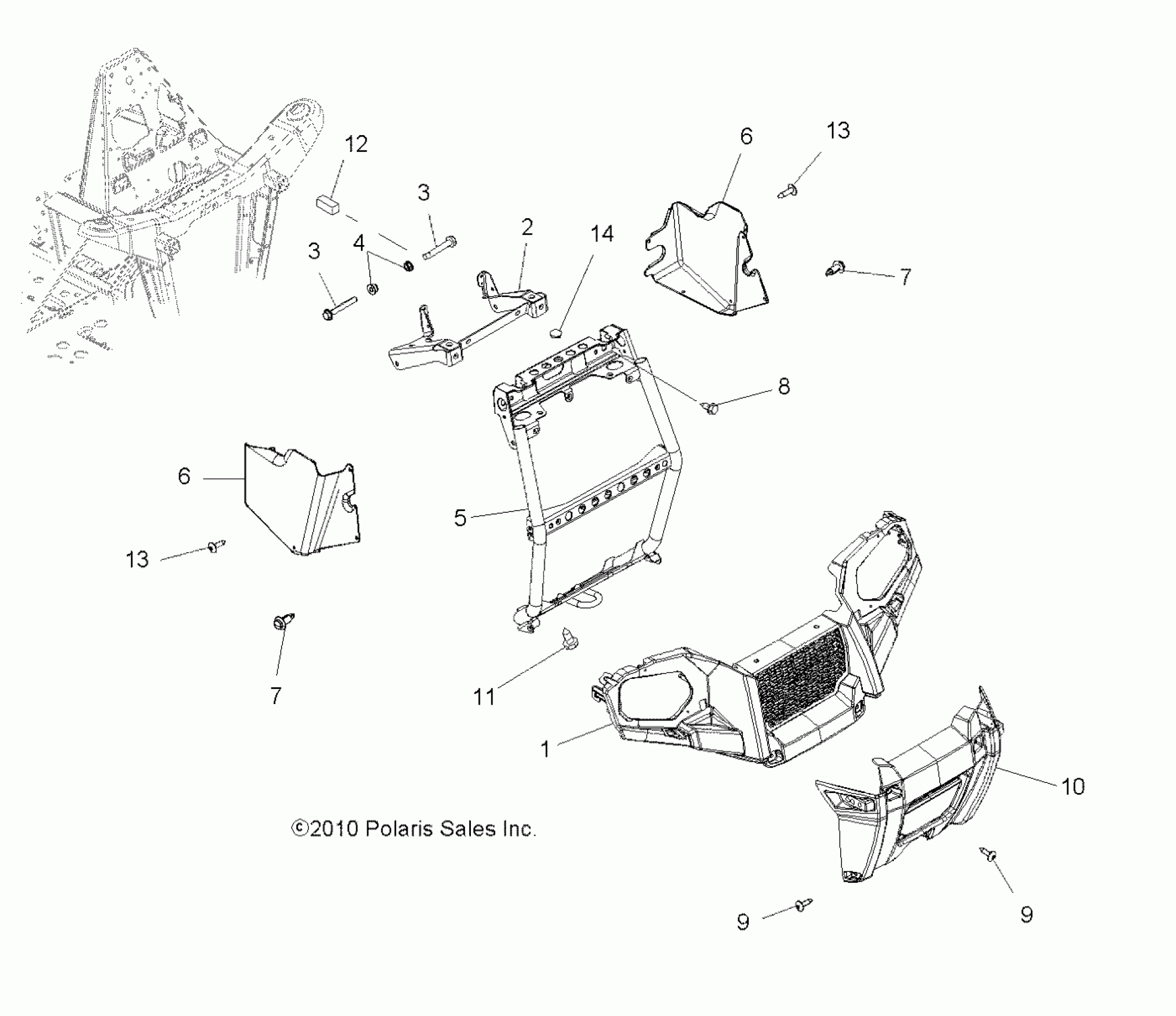

Polaris SPORTSMAN FOREST 500 - A11MH50FF BODY, FRONT BUMPER and MOUNTING - A11MH50FF (49ATVBUMPER11SP500F) Diagram

#

Description
Price

1

BUMPER, FRONT, BLACK

5438559-070

$209.99

2

Bracket, Radiator, Upper, Black

5254310-329

$68.79

3

BOLT, FLANGE

7518341

$4.76

3

BOLT, FLANGE

7518341

$4.76

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

5

Frame, Bumper, Black

1017743-067

Unavailable

6

SHIELD, SIDE, RADIATOR, LH

5438689

$33.24

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

6

SHIELD, SIDE, RADIATOR, LH

5438689

$33.24

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

7

Rivet

7661855

$1.19

7

Rivet

7661855

$1.19

8

SCREW

7517386

$1.19

9

SCREW

7517685

$1.59

9

SCREW

7517685

$1.59

10

Cover, Fang w/Cutout, Front, Black

5438842-070

$124.43

11

SCREW

7515399

$1.19

12

PLUG, FRAME

5810467

Unavailable

13

SCREW

7519092

$1.19

13

SCREW

7519092

$1.19

14

Plug, Hole, Rubber

5411009

Unavailable
