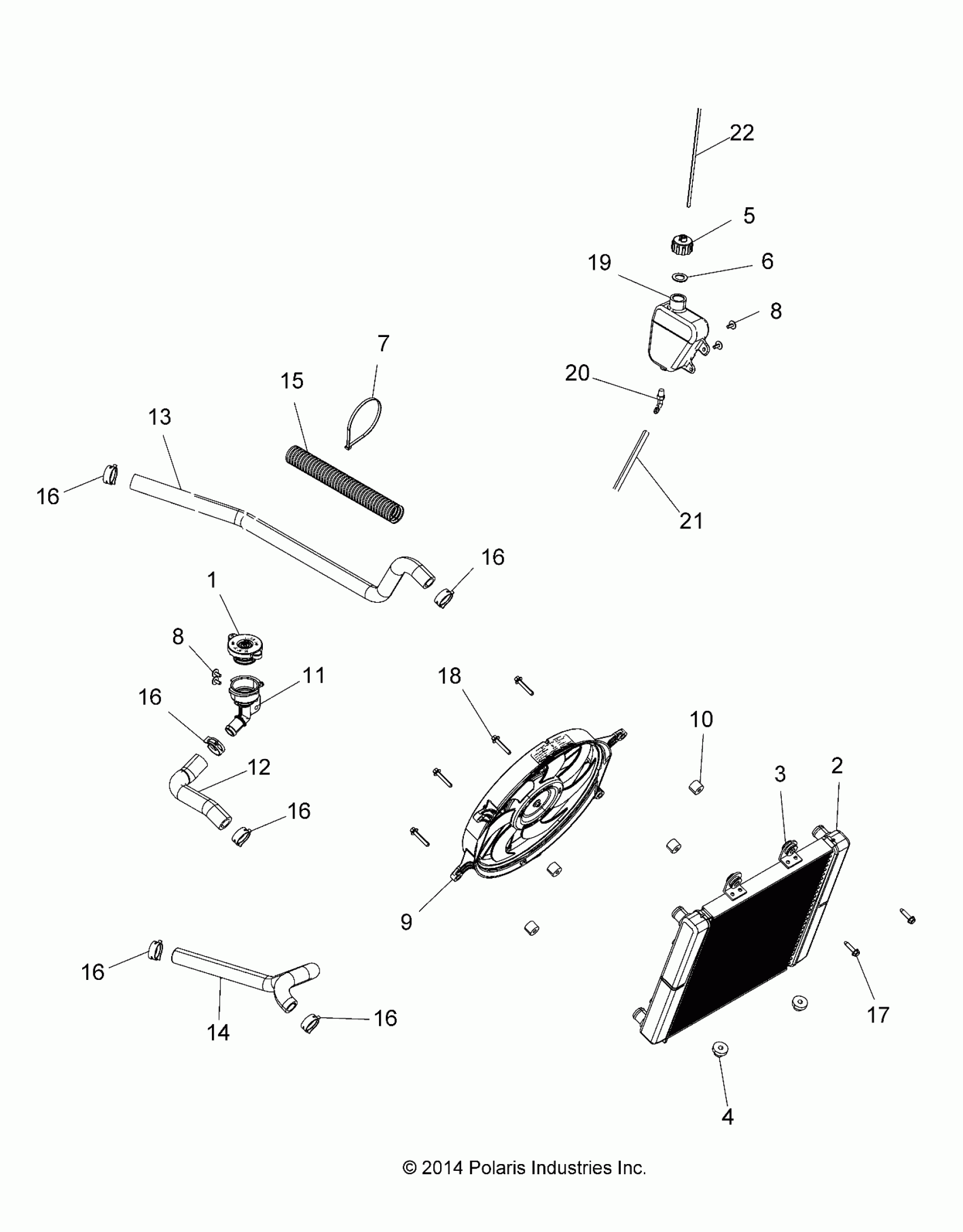

Polaris SPORTSMAN ETX EFI - A15SEA32AA/AH ENGINE, COOLING SYSTEM - A15SEA32AA/AH (49ATVCOOL15SPETX) Diagram

#

Description
Price

1

Cap, Pressure

1240508

$48.56

2

ASM., RADIATOR

1240520

$409.26

3

ASM., GROMMET AND INSERT

5413155

$3.99

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

5

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

6

GASKET-OVERFLOW CAP

5810279

$2.41

7

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

8

Screw

7512084

$1.49

8

Screw

7512084

$1.49

9

ASM., FAN AND MOTOR

2411330

$189.59

10

SPACER

5137361

$5.59

11

NECK, FILLER

5412402

$23.99

12

HOSE, FILLER NECK

5414228

$14.39

13

HOSE, RADIATOR, UPPER

5415127

$31.99

14

HOSE, RADIATOR, LOWER

5415128

$27.99

15

CONDUIT, FLEX

5521793-25

Unavailable

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

17

Screw

7515179

$2.39

18

SCREW

7516827

$6.39

19

TANK-SURGE

5436936

$75.99

20

FITTING, BARBED, 90 DEG

7052065

$7.19

21

HOSE, CLEAR

8450003-1525

Unavailable

22

LINE, FUEL

8360009-600

Unavailable
