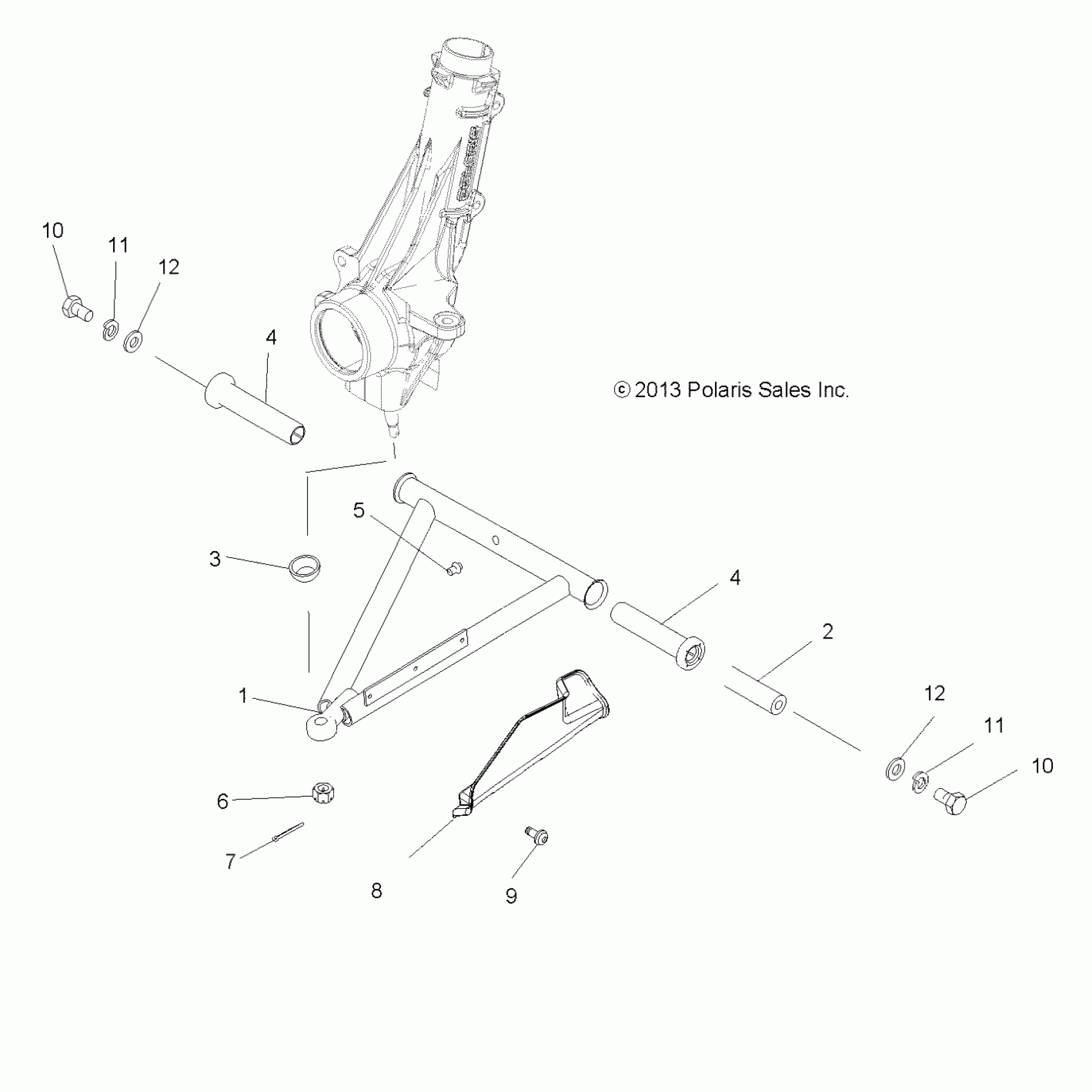

Polaris SPORTSMAN ACE - A14BH33AJ SUSPENSION, A-ARM and STRUT MOUNTING - A14BH33AJ (49ATVAARM14SP325) Diagram

#

Description
Price

1

KIT, A-FRAME, LH [INCL. 1,2,4,7,10,11,12]

2202906

$127.99

1

KIT, A-FRAME, RH [INCL. 1,2,4,7,10,11,12]

2202907

$127.99

2

Shaft, A-Arm

5133806

$30.79

3

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

4

BUSHING, A-ARM, LONG

5436973

$5.19

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

BUSHING, A-ARM, LONG

5436973

$5.19

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

5

Fitting, Lubrication

7080433

$1.49

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Pin, Cotter

7661203

$1.49

8

SHIELD, CV FRONT, BLACK, LH

5450194-070

$35.99

8

SHIELD, CV FRONT, BLACK, RH

5450195-070

$35.99

9

Screw

7512084

$1.49

10

Screw

7512492

$1.49

10

Screw

7512492

$1.49

11

Washer, Spring Lock

7552603

$1.49

11

Washer, Spring Lock

7552603

$1.49

12

WSHR-.813X.406X.105-Y

7555832

$2.39

12

WSHR-.813X.406X.105-Y

7555832

$2.39
