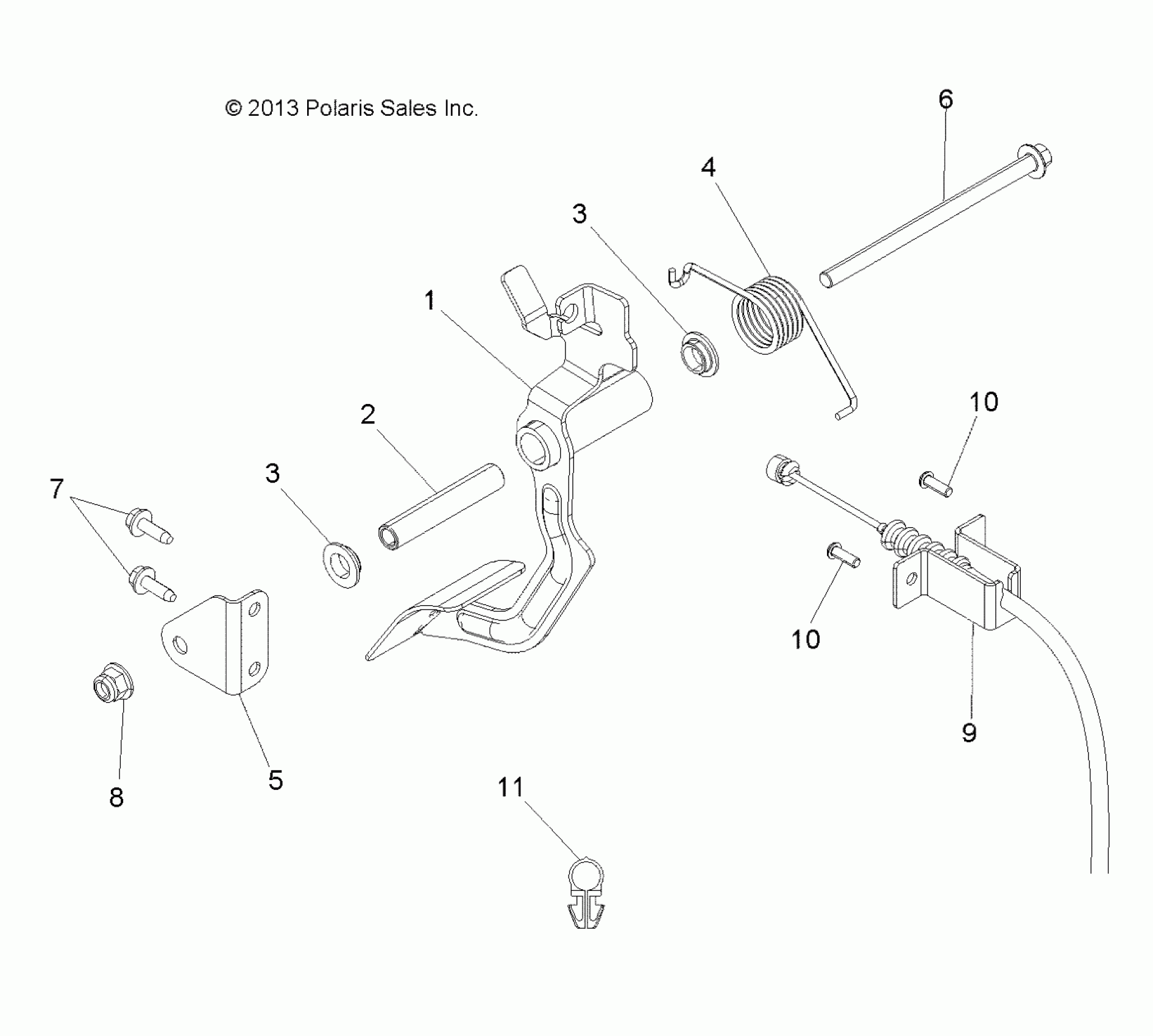

Polaris SPORTSMAN ACE - A14BH33AJ ENGINE, THROTTLE PEDAL - A14BH33AJ (49ATVTHRPEDAL14SP325) Diagram

#

Description
Price

1

PEDAL, THROTTLE,

1018812

Unavailable

2

TUB, PIVOT

5138733

Unavailable

3

BUSHING, PEDAL PIVOT

5433189

$3.99

3

BUSHING, PEDAL PIVOT

5433189

$3.99

4

SPRING, ACCELERATOR, HEAVY

7043992

$14.39

5

BRACKET, SUPPORT

5257105

Unavailable

6

SCREW

7517719

$57.19

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

CABLE, THROTTLE

7081896

Unavailable

10

SCREW

7515177

$3.19

10

SCREW

7515177

$3.19

11

CLIP, SNAP IN

7080756

$4.79
